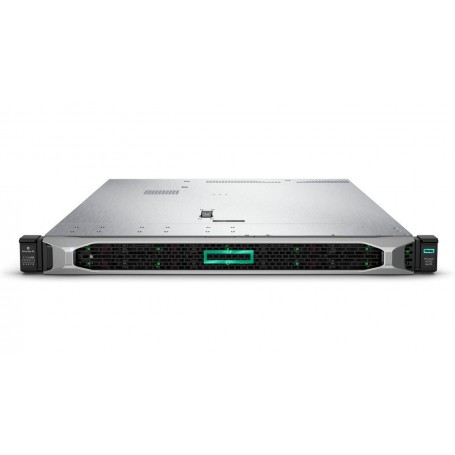

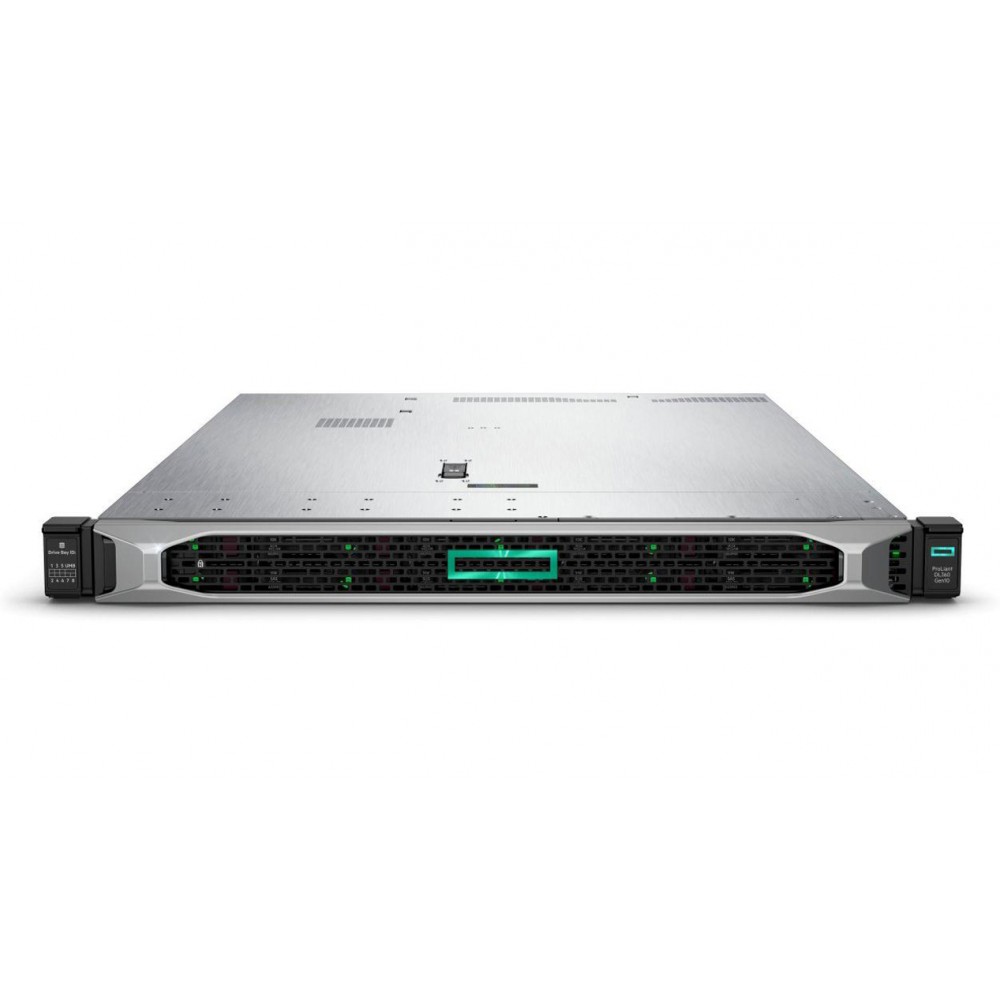

HPE Aruba R1V82A Clearpass C3010DL360 G10 H/W Appliance View larger

HPE R1V82A Aruba Clearpass C3010DL360 G10 H/W Appliance

R1V82A

New

HPE R1V82A Aruba Clearpass C3010DL360 G10 H/W Appliance
×




Detailed Specifications

HPE R1V82A Aruba Clearpass C3010DL360 G10 H/W Appliance

Overview :

The Aruba ClearPass Policy Manager, part of the Aruba 360 Secure Fabric, provides role- and device-based secure network access control for IoT, BYOD, corporate devices, as well as employees, contractors and guests across any multivendor wired, wireless and VPN infrastructure. With a built-in context-based policy engine, RADIUS, TACACS+, non-RADIUS enforcement using OnConnect, device profiling, posture assessment, onboarding, and guest access options, ClearPass is unrivaled as a foundation for network security for organizations of any size. For comprehensive integrated security coverage and response using firewalls, EMM/MDM and other existing solutions, ClearPass supports the Aruba 360 Security Exchange Program.
This allows for automated threat detection and response workflows that integrate with third-party security vendors and IT systems previously requiring manual IT intervention. In addition, ClearPass supports secure self-service capabilities, making it easier for end users trying to access the network. Users can securely configure their own devices for enterprise use or Internet access based on admin policy controls. Aruba wireless customers in particular can take advantage of unique integration capabilities such as AirGroup, as well as ClearPass Auto Sign-On (ASO). ASO enables a user's network authentication to pass automatically to their enterprise mobile apps so they can get right to work.
The result is detailed visibility of all wired and wireless devices connecting to the enterprise, increased control through simplified and automated authentication or authorization of devices, and faster, better incident analysis and response through the integration of Aruba IntroSpect UEBA and third-party partner ecosystems. This is achieved with a comprehensive and scalable policy management platform that goes beyond traditional AAA solutions to deliver extensive enforcement capabilities for IT-owned and BYOD security requirements.

Specifications :

Processor
Processor Generation 1st Generation Intel® Xeon® Scalable
Thermal Design Power (TDP) 105 W
Tcase 81 °C
Supported instruction sets AVX, AVX 2.0, AVX-512, SSE4.2
Stepping M0
Scalability 4S
Processor threads 24
Processor package size 76.0 x 56.5 mm
Processor operating modes 64-bit
Processor lithography 14 nm
Processor codename Skylake
Processor code SR3GF
Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 2666 MHz
Maximum number of PCI Express lanes 48
Maximum internal memory supported by processor 768 GB
Execute Disable Bit Yes
Embedded options available Yes
Processor cache type L3
Processor cache 16.5 MB
Conflict-Free processor Yes
Processor frequency 2.3 GHz
Number of processors installed 1
Processor model 5118
Processor boost frequency 3.2 GHz
Processor socket LGA 3647 (Socket P)
Processor cores 12
Processor manufacturer Intel
Processor family Intel® Xeon® Gold
Memory
Internal memory 64 GB
Memory slots 24x DIMM
Maximum internal memory 768 GB
Internal memory type DDR4-SDRAM
Storage
Total storage capacity 3600 GB
Number of HDDs installed 6
HDD speed 10000 RPM
HDD capacity 600 GB
RAID support Yes
RAID levels 10
Optical drive type No
Maximum storage capacity 3.6 TB
Hot-Plug support Yes
HDD interface Serial Attached SCSI (SAS)
Network
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity 1
Serial ports quantity 1
Ethernet LAN (RJ-45) ports 4
Expansion slots
PCI Express slots version 3.0
Optical drive
Optical drive type No
Design
Rack mounting Yes
Optical drive type No
Chassis type Rack (1U)
Performance
Remote administration iLO
Harmonized System (HS) code 84714100
Processor special features
Enhanced Intel SpeedStep Technology Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel® Turbo Boost Technology 2.0
Intel TSX-NI Yes
Intel Trusted Execution Technology Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel 64 Yes
Intel Virtualization Technology (VT-x) Yes
Intel TSX-NI version 1.00
Processor ARK ID 120473
Power
Redundant power supply (RPS) support Yes
Power supply input frequency 50/60 Hz
Power supply 500 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Rack mounting Yes
Hot-Plug support Yes
Ethernet interface type Gigabit Ethernet
Chassis type Rack (1U)
Management features
Remote administration iLO
Logistics data
Harmonized System (HS) code 84714100
Weight & dimensions
Width 17.1" (434.3 mm)
Weight 35.9 lbs (16.3 kg)
Height 1.7" (43.2 mm)
Depth 27.8" (707 mm)
