Detailed Specifications

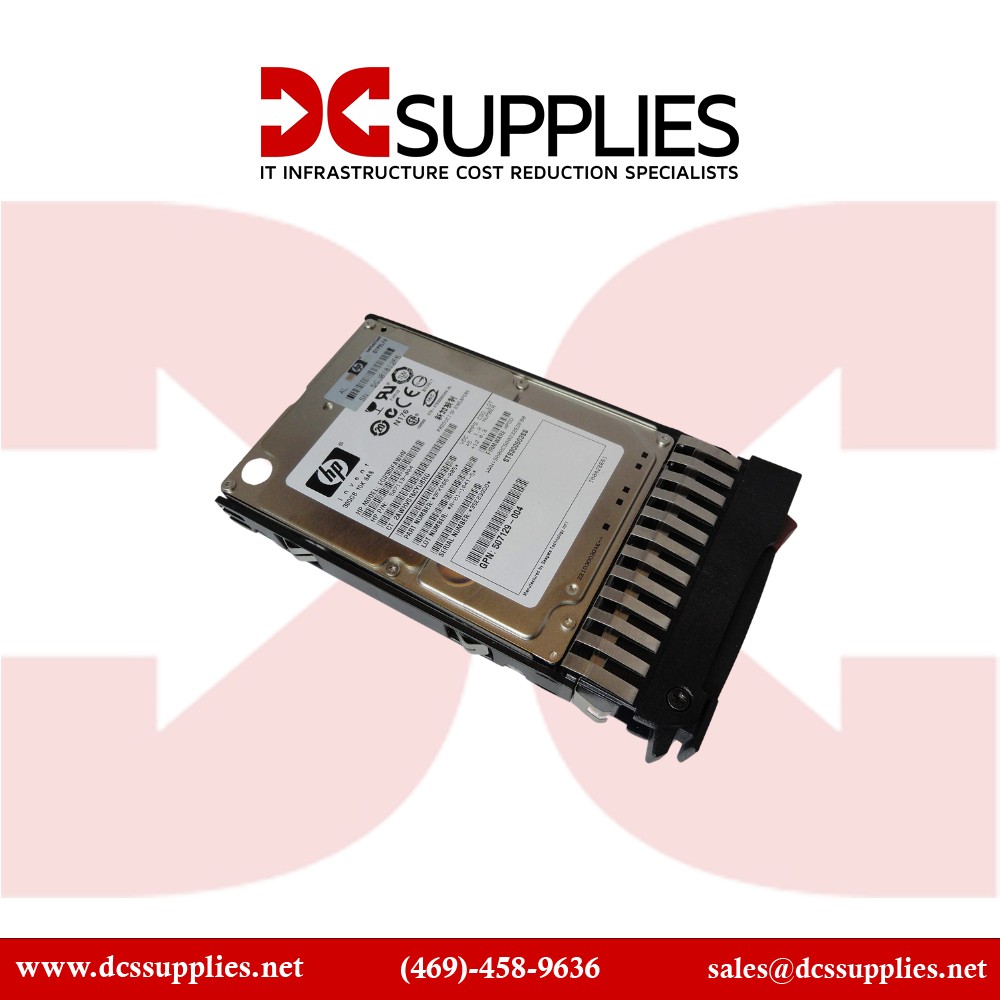

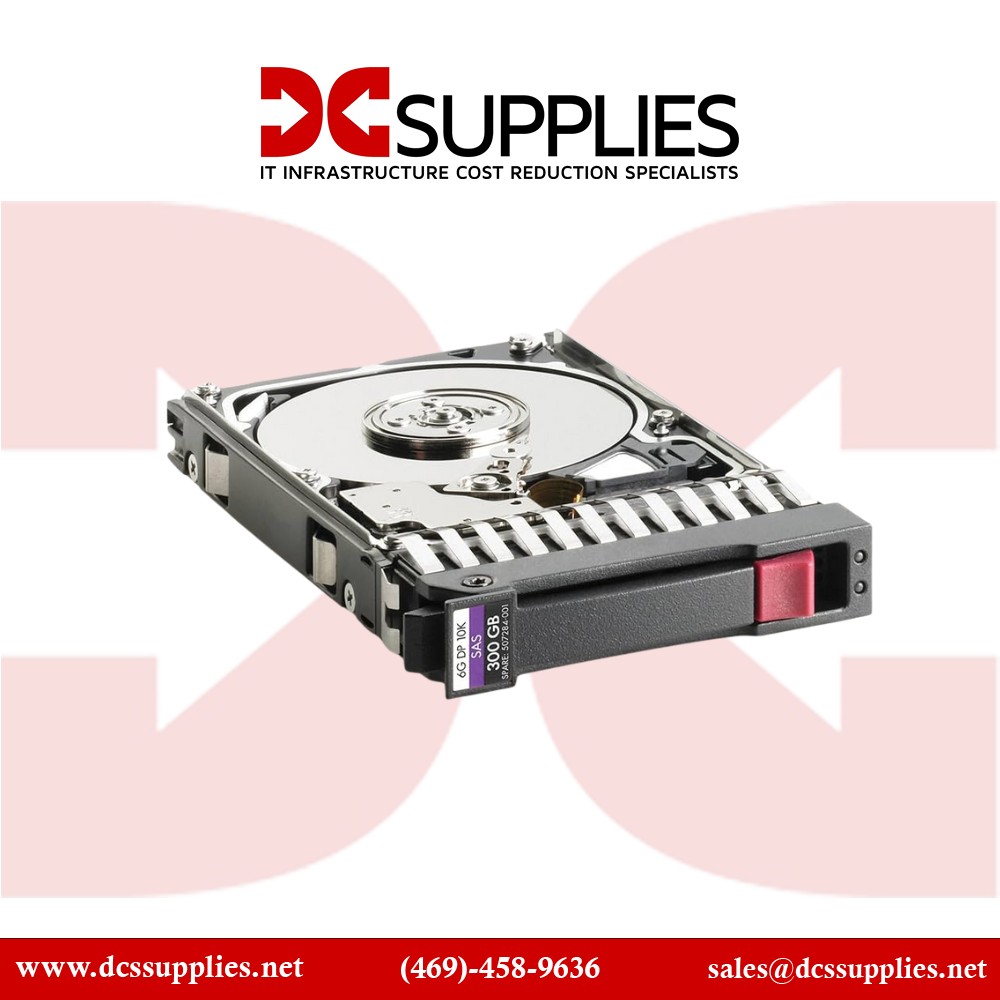

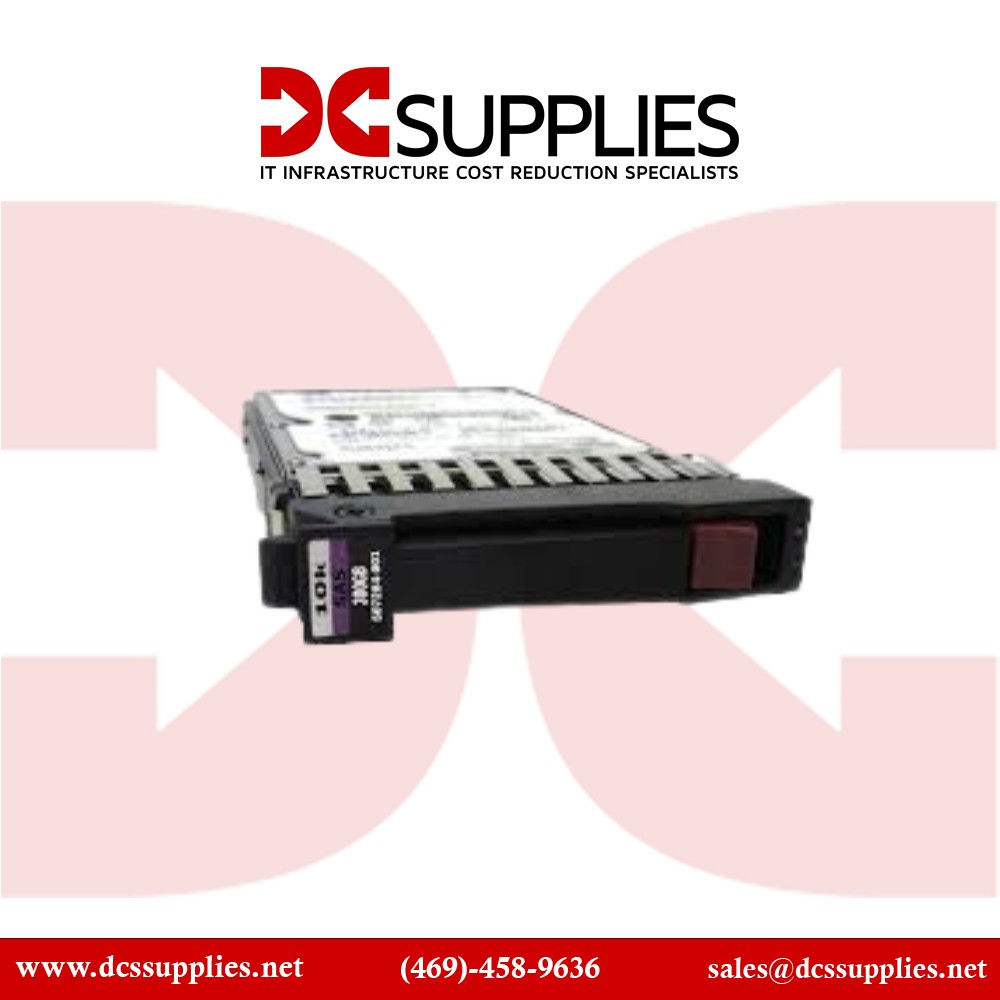

HP 507119-004 - Enterprise 2.5" 10K RPM Dual-Port SAS HDD
Overview :
The HP 507119-004 is a 300 GB enterprise-class 2.5-inch small-form-factor hard disk drive designed for dual-port SAS (Serial Attached SCSI) connectivity in high-availability server and storage systems. With a 6 Gb/s external data interface and 10,000 RPM spindle speed, it supports demanding transactional workloads where performance and reliability matter. It is hot-pluggable and compatible with many ProLiant and BladeSystem generations, making it suitable for both blade and rack-mounted servers in data centre environments. The drive supports dual-port operation enabling multipath RAID configurations and fail-over capability, thereby fitting into enterprise storage arrays, SANs and performance-tier server bays. Firmware and integration align with HPE's server platforms, so the drive can be managed via SmartCarrier and drops into standard HP SFF 2.5" bays.
Key Features :
300 GB capacity in 2.5" SFF form factor
Dual-port SAS interface at 6 Gb/s for high availability
10,000 RPM spindle speed for consistent IOPS
Hot-swappable design for minimal service interruption
Carrier-compatible with HPE ProLiant and BladeSystem servers
Specifications :
| Specification | Detail |
|---|
| Brand | HP / HPE |
| Part Number | 507119-004 |
| Product Type | Enterprise 2.5" Dual-Port SAS HDD |
| Capacity | 300 GB |
| Interface | SAS 6 Gb/s |
| Spindle Speed | 10,000 RPM |
| Form Factor | 2.5" (Small Form Factor) |
| Cache | 16 MB |
| Sector Size | 512 bytes |
| Typical Seek Time | ~4 ms |
| Dimensions (H×W×D) | 0.63" × 3.11" × 5.45" |
| Weight | 1.60 lbs |
| Dual-Port | Yes |
| Hot-Swap | Yes |
| Compatible Platforms | HPE ProLiant Gen4"Gen7, BladeSystem |
