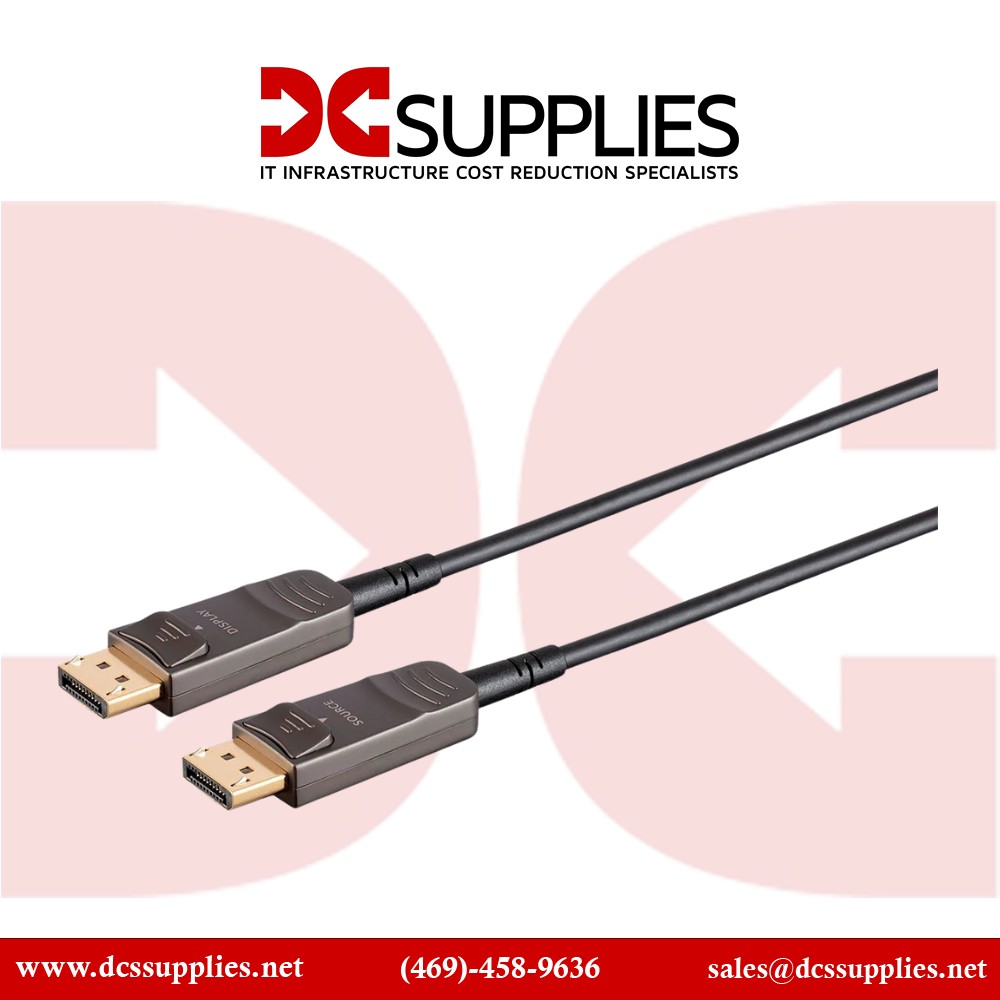

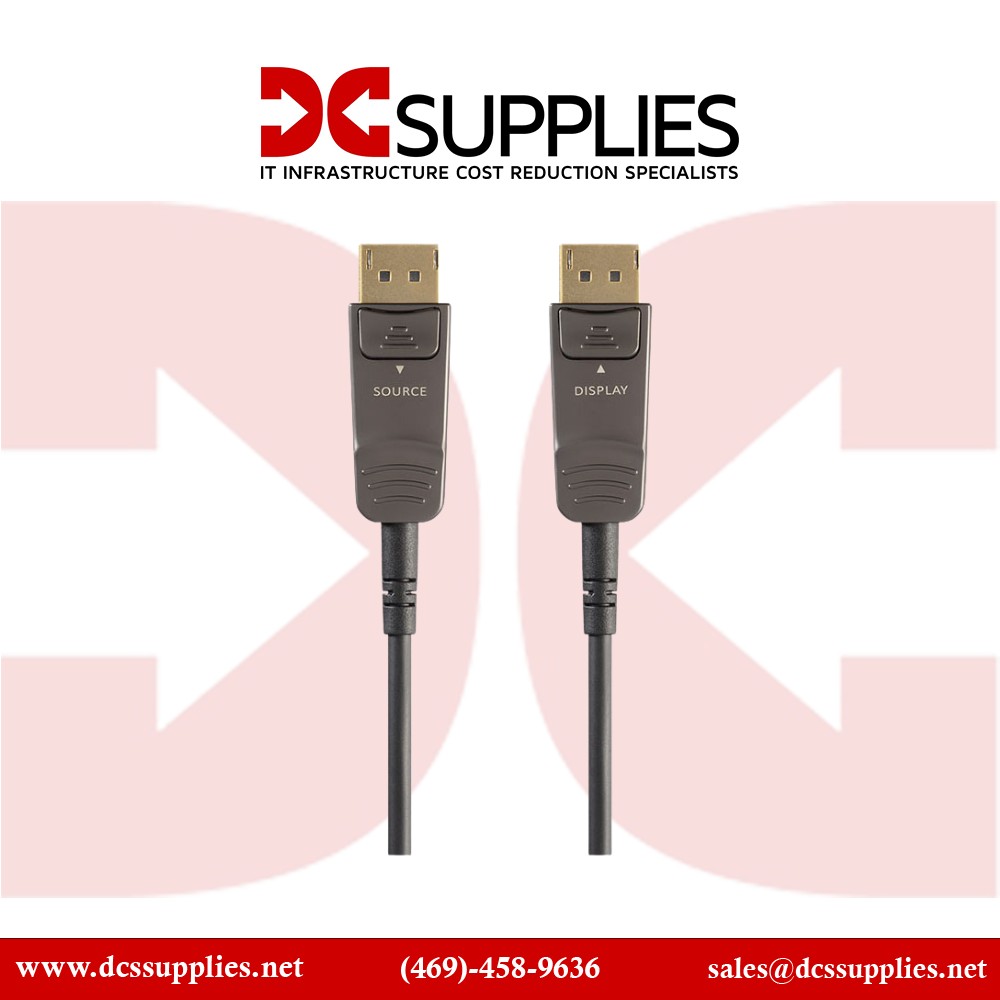

SIIG Inc CB-DP2011-S1 20M Displayport 1.2 Fiber Optic Cable High Quality Active View larger

SIIG Inc CB-DP2011-S1 20M Displayport 1.2 Fiber Optic Cable High Quality Active

CB-DP2011-S1

New

SIIG Inc CB-DP2011-S1 20M Displayport 1.2 Fiber Optic Cable High Quality Active
×




Detailed Specifications

SIIG Inc 20M Displayport 1.2 Fiber Optic Cable High Quality Active

Overview :

The SIIG Inc CB-DP2011-S1 is a premium 20-meter DisplayPort 1.2 Fiber Optic Cable designed to deliver high-quality video and audio signals with minimal signal loss. This active cable supports high resolutions and refresh rates, making it ideal for gaming, digital signage, and professional video applications.

Key Features :

  • High-Quality Signal Transmission: Supports up to 4K resolution at 60Hz with zero signal loss.
  • Fiber Optic Technology: Ensures reliable and high-speed data transmission.
  • DisplayPort 1.2 Compliance: Fully compatible with DisplayPort 1.2 standards.
  • 20 Meter Length: Ideal for long-distance connections without degradation.
  • Connects DisplayPort source devices to DisplayPort equipped monitors or displays
  • Compliant with DisplayPort 1.2 specification, 1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps, and 5.4Gbps
  • Supports video bandwidth up to 21.6Gbps
  • Works with DisplayPort 1.4 devices
  • AOC (Active Optical Cable) Fiber/Copper inner conductor material and gold-plated connectors provide maximum video performance, prevents signal loss and screen ghosting
  • Supports 48bit deep color depth
  • Premium quality latching DisplayPort connector prevents accidental disconnection
  • Easy Plug-n-play installation with no drivers required

Specification :

Product Name 20M Displayport 1.2 Fiber Optic Cable High Quality Active
Manufacturer Part Number CB-DP2011-S1
Product Type A/V Cable
Cable Type Fiber Optic
Connector Type on First End DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End DisplayPort 1.2 Digital Audio/Video - Male
Product Color Matte Black
Cable Length 65.62 ft
Environmentally Friendly Yes
Connector Plating Gold
Supported Resolution 3840 x 2160
Connector on First End Details 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Country of Origin China
Data Transfer Rate 21.6 Gbit/s
