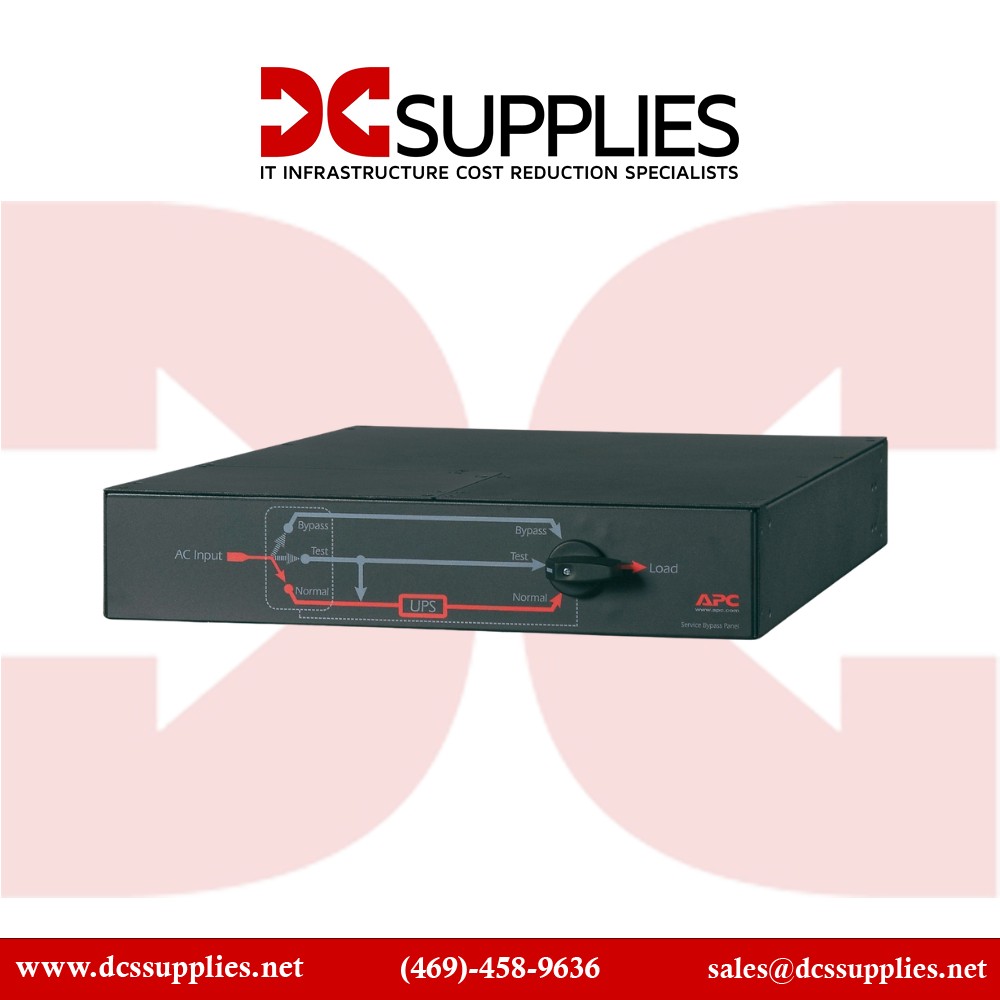

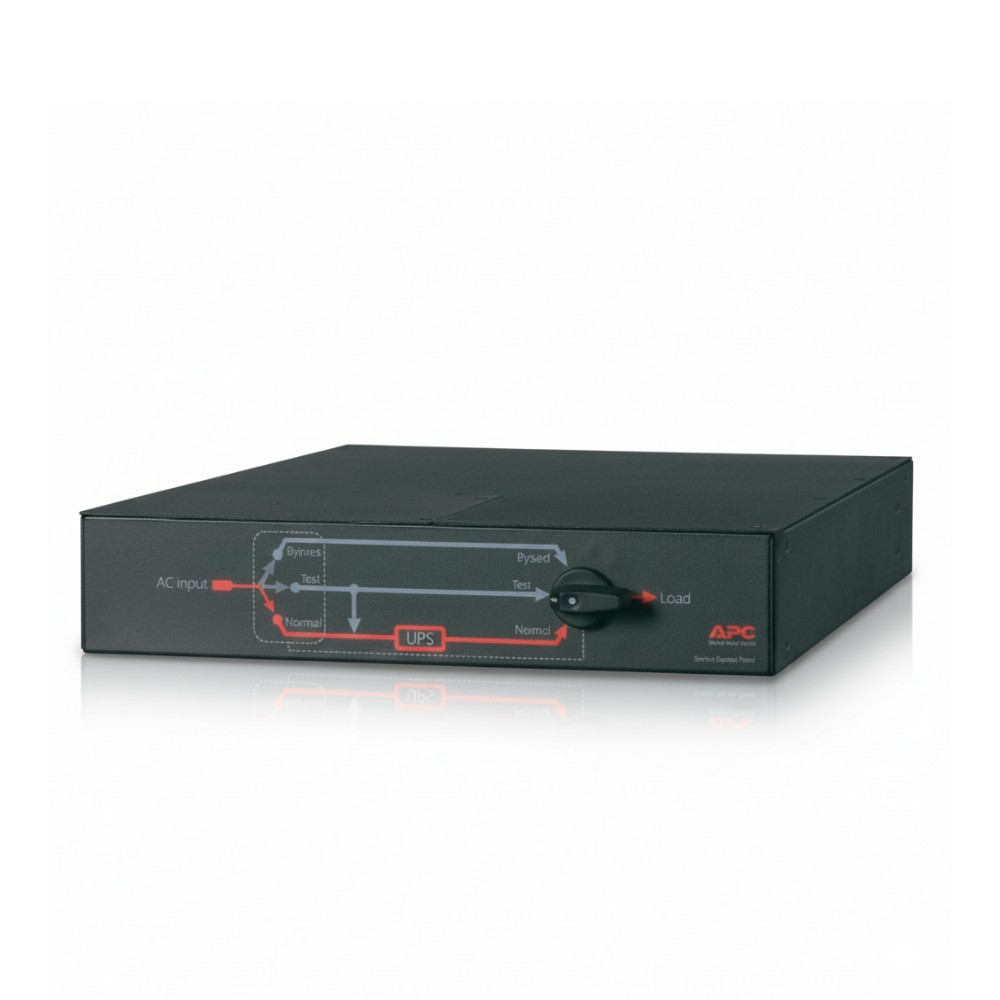

APC SBP5000RMT2U Service Bypass Panel 200 208 240V 30A BBM L6-30P Input L6-30R L6-20R Output View larger

APC SBP5000RMT2U Service Bypass Panel 200 208 240V 30A BBM L6-30P Input L6-30R L6-20R Output

SBP5000RMT2U

New

Seamlessly switch UPS power with APC’s reliable 5000VA bypass panel
×




Detailed Specifications

APC SBP5000RMT2U Rack Mountable 24A Maintenance Bypass Panel 19"

Overview :

The APC SBP5000RMT2U Service Bypass Panel ensures uninterrupted power availability by allowing seamless transfer of power between utility and UPS systems. Designed for mission-critical environments, it supports 200V, 208V, and 240V applications with a maximum load capacity of 5000VA. Featuring a break-before-make (BBM) transfer switch, it safely isolates UPS units for maintenance without disrupting connected loads. This 2U rack-mounted bypass panel comes equipped with a NEMA L6-30P input and four output sockets—two NEMA L6-30R and two NEMA L6-20R—offering flexibility for various IT and industrial applications. With a robust 30A capacity, circuit breaker protection, and 99% efficiency, the SBP5000RMT2U is an essential addition to data centers and enterprise networks seeking uninterrupted power management.

Key Features:

  • Seamless UPS Bypass: Enables maintenance without downtime.
  • High Power Capacity: Supports up to 5000VA at 200/208/240V.

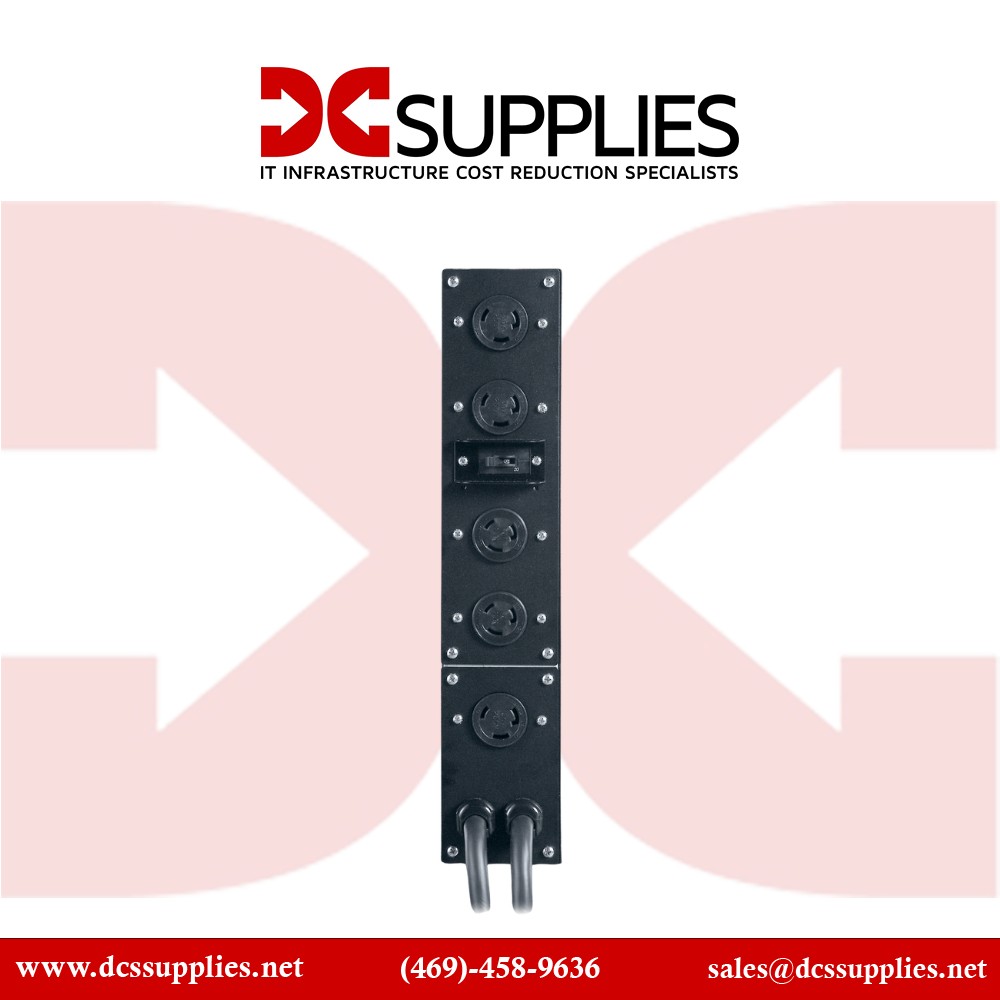

  • Multiple Output Options: (2) NEMA L6-30R and (2) NEMA L6-20R.
  • Rack-Mountable Design: 2U form factor with included brackets.
  • Reliable Protection: Built-in circuit breaker for enhanced safety.

Technical Specifications:

SpecificationDetails
Part Number SBP5000RMT2U
Brand APC
Product Type Bypass Switch
Voltage Support 200V / 208V / 240V
Input Connection NEMA L6-30P
Output Connections (2) NEMA L6-30R, (2) NEMA L6-20R
Max Load Capacity 5000VA
Max Current Draw 24A
Efficiency 99%
Rack Units 2U
Cable Length 10 ft (3.05 m)
Mounting Mode Rack-mounted
Certifications CSA, GOST
