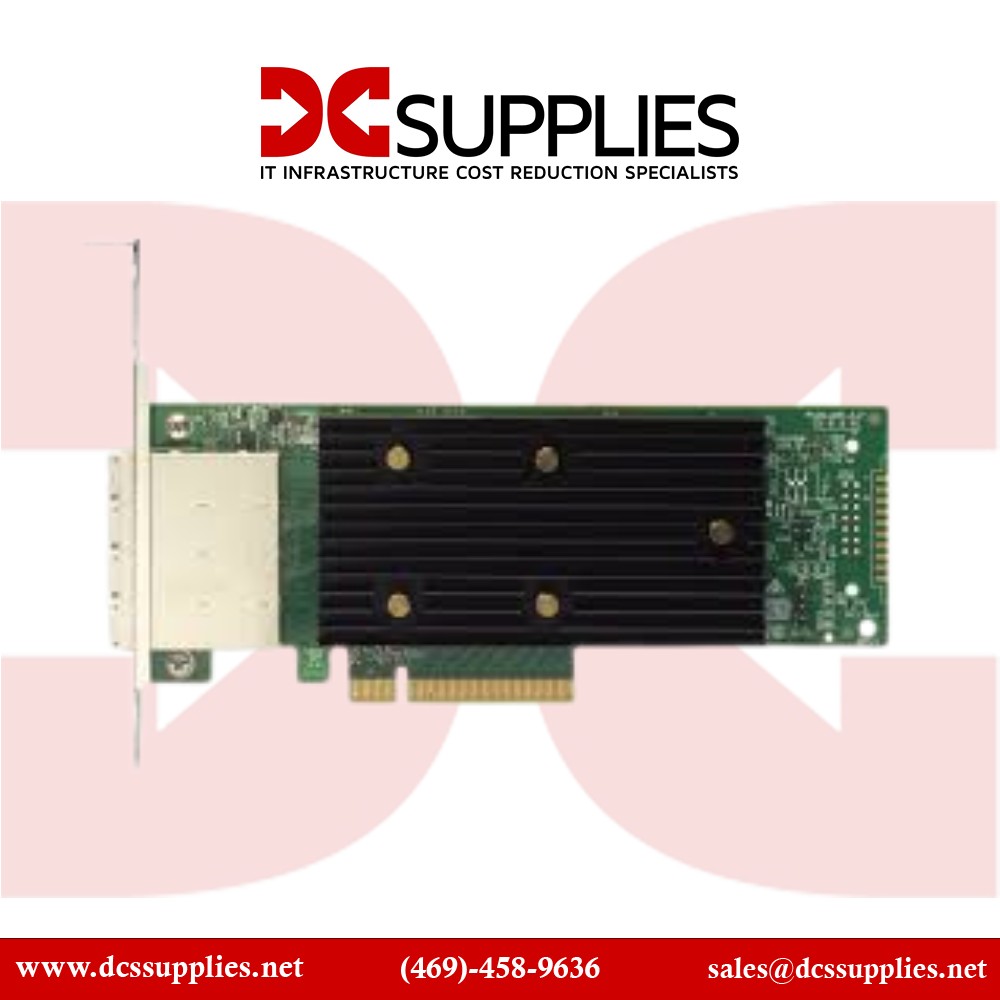

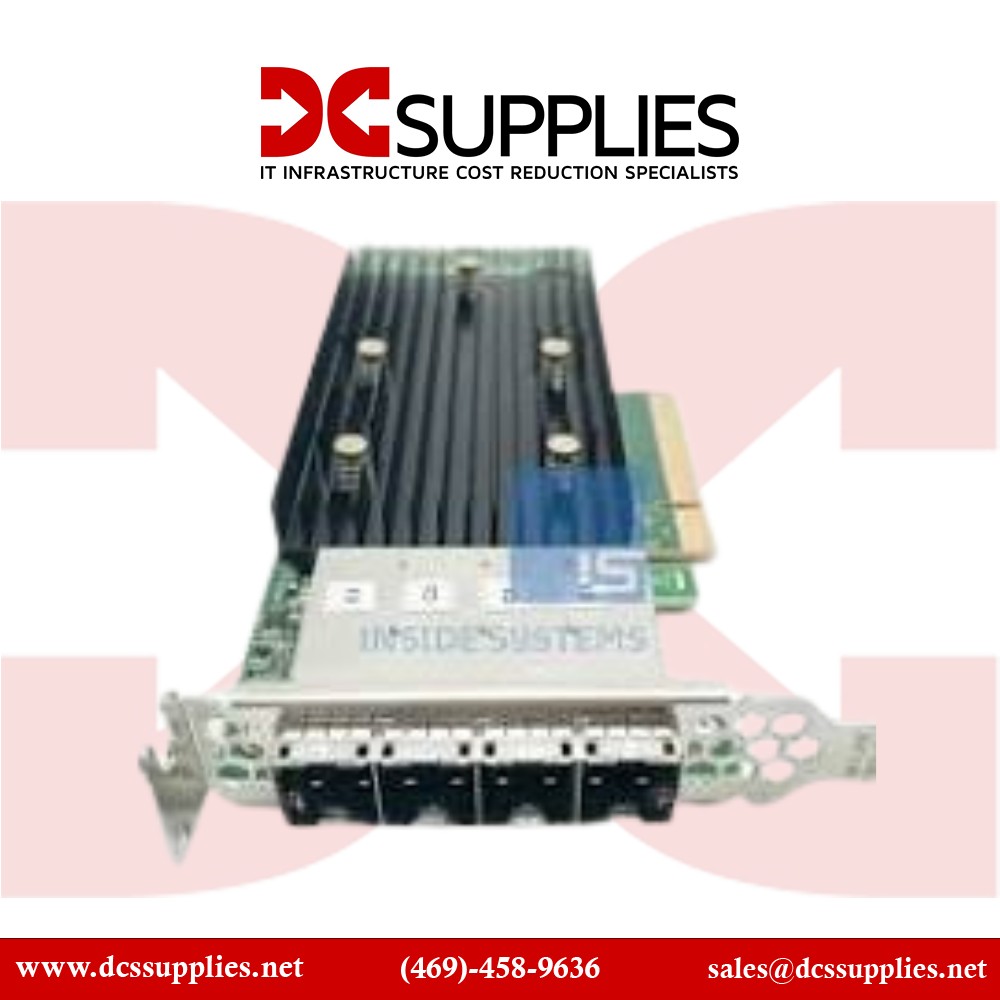

Lenovo 7Y37A01091 interface cards/adapter Internal SAS, SATA View larger

Lenovo 7Y37A01091 interface cards/adapter Internal SAS, SATA

7Y37A01091

New

Lenovo 7Y37A01091 interface cards/adapter Internal SAS, SATA
×




Detailed Specifications

Lenovo 7Y37A01091 interface cards/adapter Internal SAS, SATA

Description

The Lenovo ThinkSystem 430-8e and 430-16e SAS/SATA 12Gb HBAs are high-performance host bus adapters for external storage connectivity in ThinkSystem servers. The 430-8e provides two x4 external mini-SAS HD connectors with eight lanes of 12 Gbps SAS. The 430-16e provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS. This product guide provides essential presales information to understand the ThinkSystem external HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.

Specifications :

Ports & interfaces
Internal Yes
Output interface SAS, SATA
Host interface PCIe
External mini-SAS HD ports 4
Expansion card form factor Full-height / Low-profile
Expansion card standard PCIe 3.0
Technical details
Data transfer rate (max) 12000 Gbit/s
Compatibility SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530
Sustainability certificates RoHS
Performance
Data transfer rate (max) 12000 Gbit/s
Product colour Black, Green
Harmonized System (HS) code 84733020
Certificates
Colour
Product colour Black, Green
Design
Internal Yes
Product colour Black, Green
Features
Data transfer rate (max) 12000 Gbit/s
Harmonized System (HS) code 84733020
Operational conditions
Operating temperature (T-T) 10 - 55 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 20 - 90%
Storage relative humidity (H-H) 5 - 95%
Other features
Compatibility SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530
