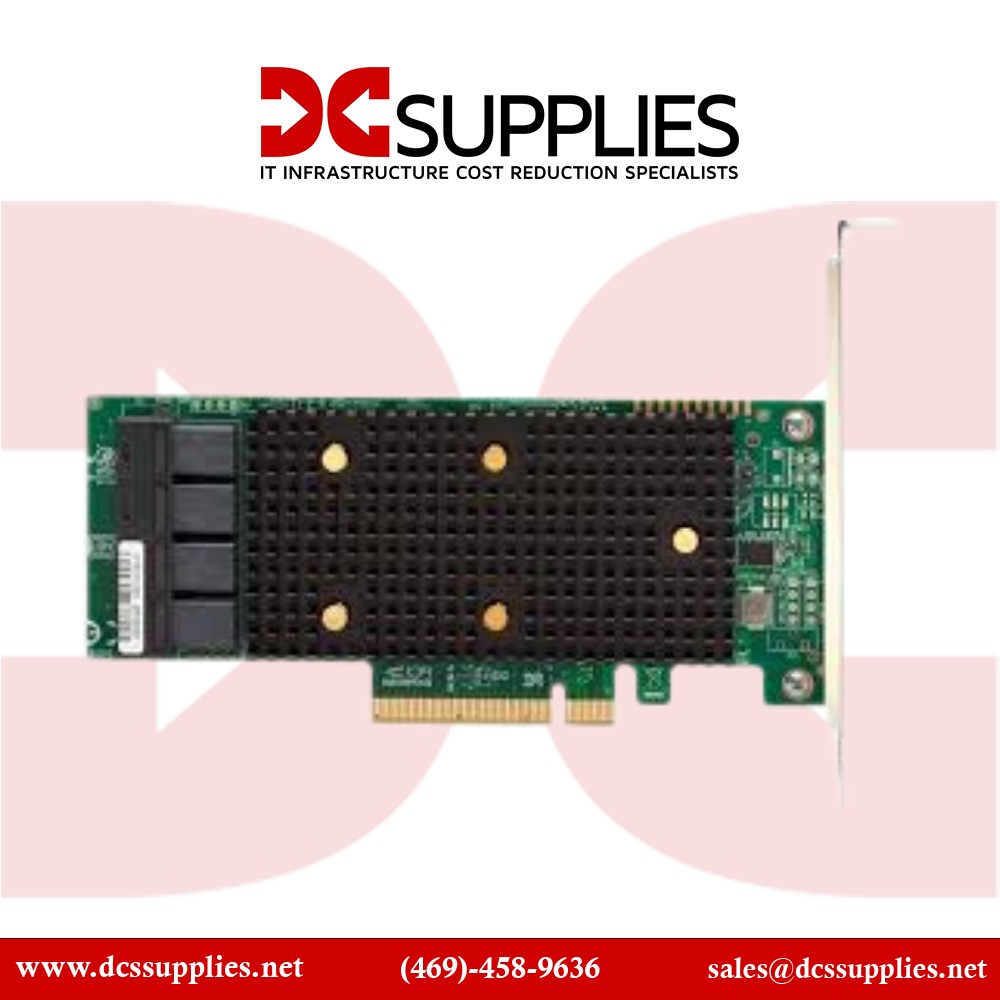

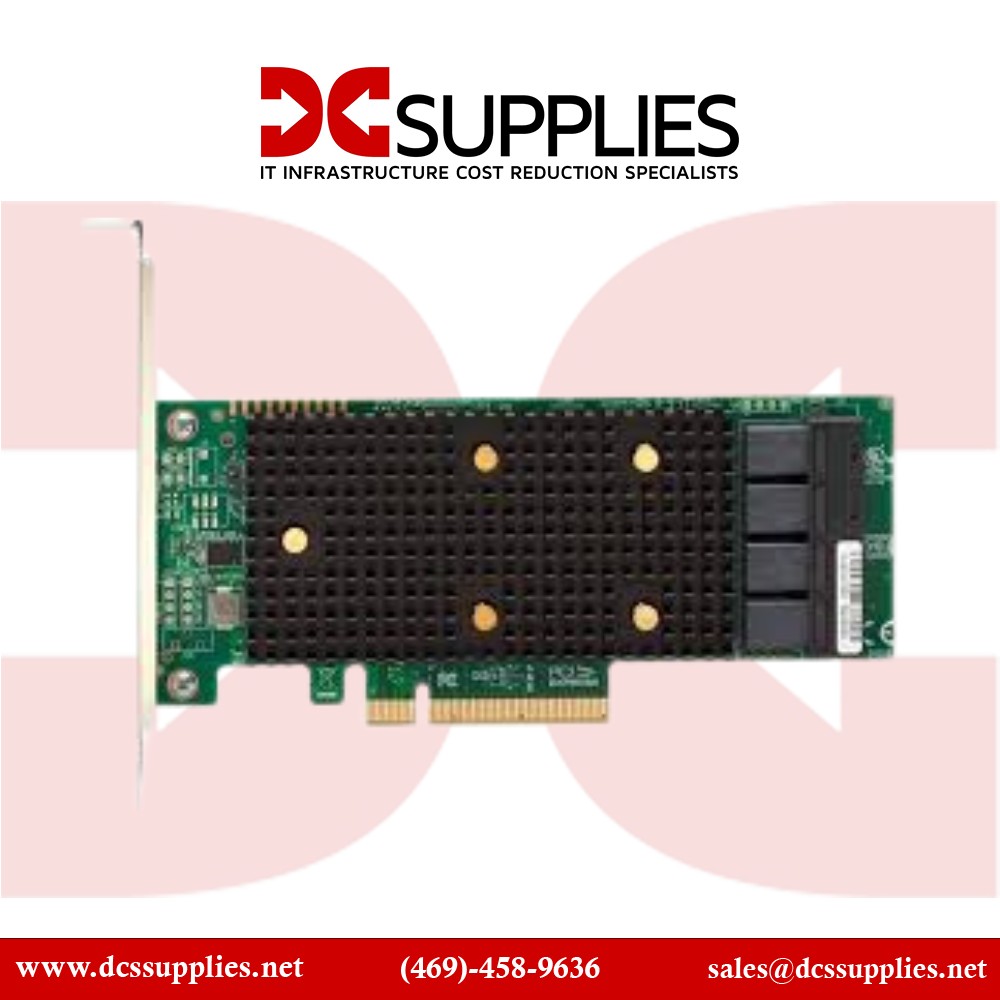

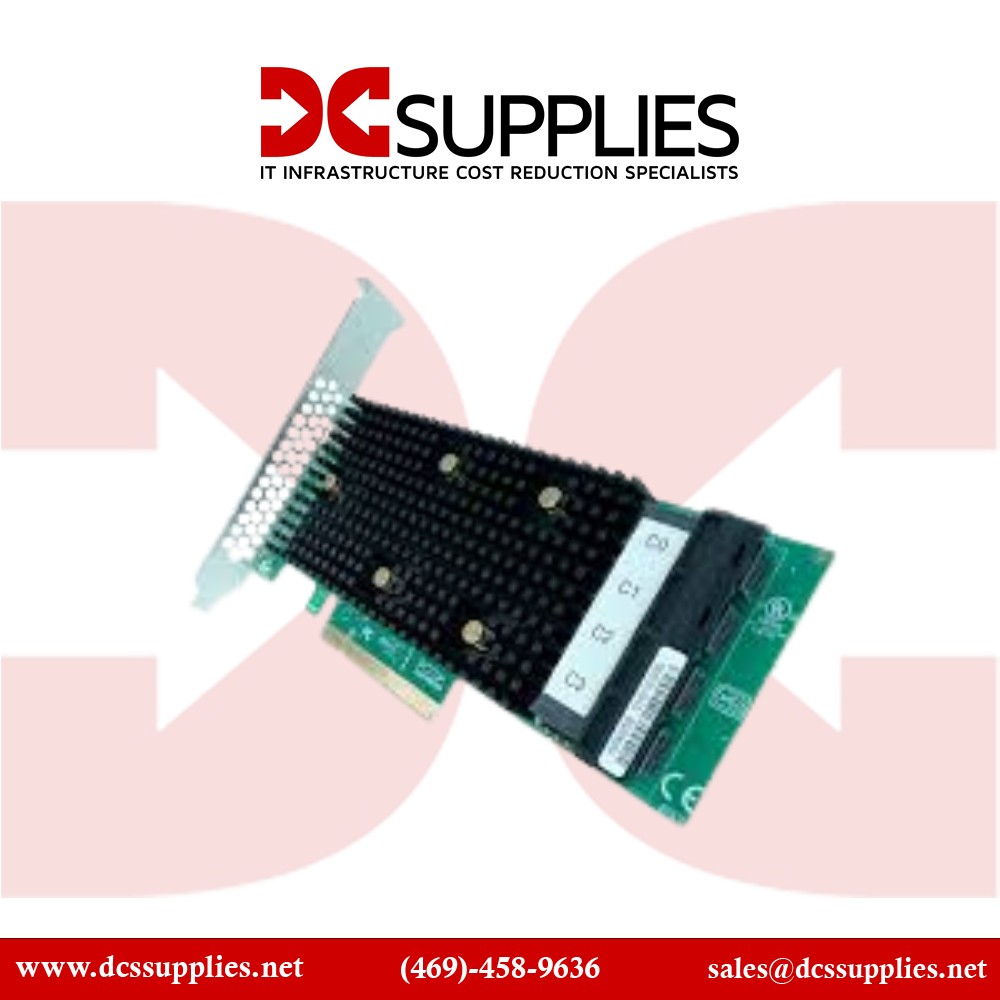

Lenovo 4Y37A09727 RAID controller PCI Express View larger

Lenovo 4Y37A09727 RAID controller PCI Express

4Y37A09727

New

Lenovo 4Y37A09727 RAID controller PCI Express
×




Detailed Specifications

Lenovo 4Y37A09727 RAID controller PCI Express x8 3.0 12 Gbit/s

Description

The ThinkSystem RAID 530 family are entry-level 12 Gb SAS/SATA internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0/1/10/5/50 and include an extensive list of RAS and management features. This product guide provides essential presales information to understand the ThinkSystem RAID 530-4i and 530-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

Specifications :

Ports & interfaces
Supported storage drive interfaces PCI Express
Internal SAS ports 16
Host interface PCI Express x8
PCI Express slots version 3.0
Performance
RAID levels 0, 1, 10
SSD support Yes
Chipset LSI SAS3416
S.M.A.R.T. support Yes
Number of devices supported 16
Data transfer rate 12 Gbit/s
Certification FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE
Hot-swap Yes
JBOD function Yes
System requirements
Linux operating systems supported Yes
Operational conditions
Operating temperature (T-T) 10 - 55 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 20 - 90%
Storage relative humidity (H-H) 5 - 95%
