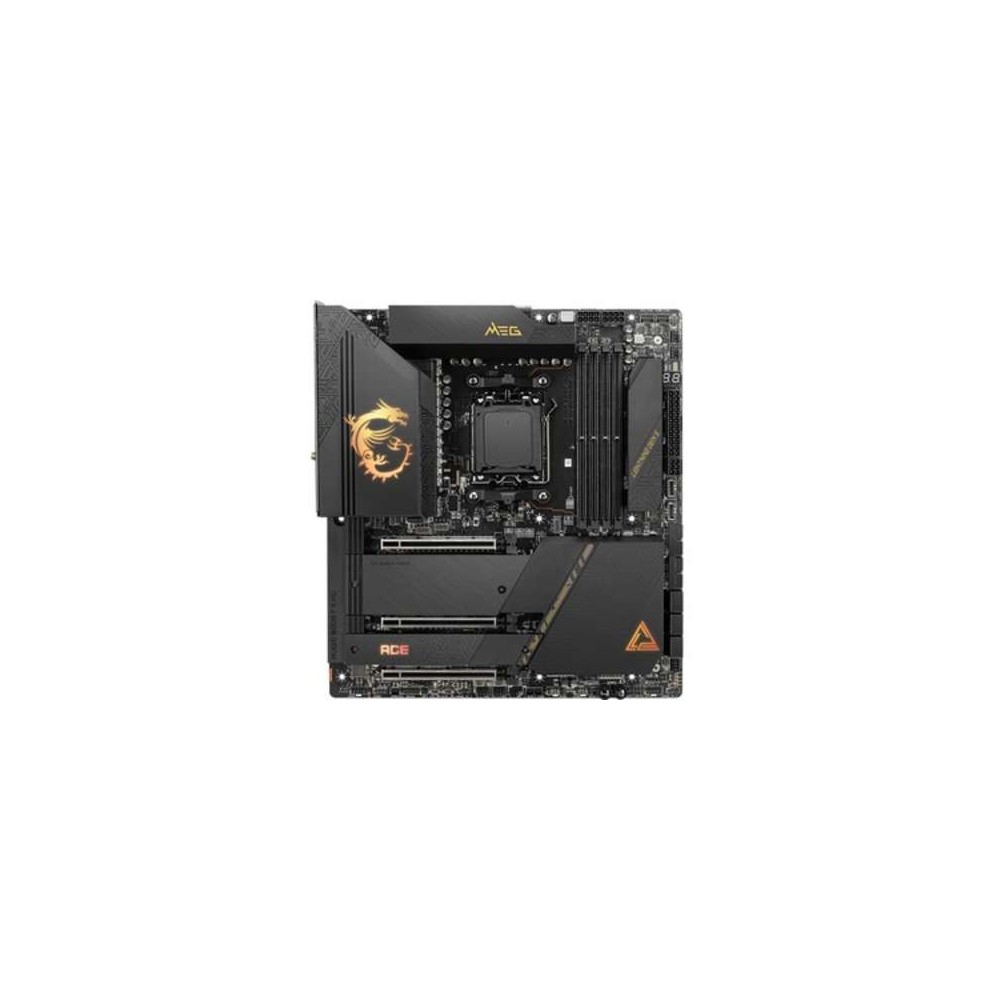

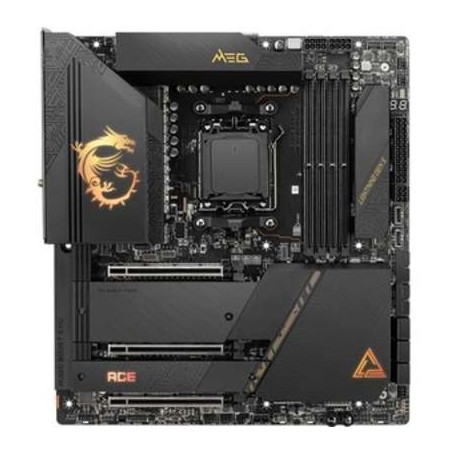

MSI X670EACE MEG X670E ACE AM5 E-ATX Motherboard View larger

MSI X670EACE MEG X670E ACE AM5 E-ATX Motherboard

X670EACE

New

MSI X670EACE MEG X670E ACE AM5 E-ATX Motherboard
×




Detailed Specifications

MSI X670EACE MEG X670E ACE AM5 E-ATX Motherboard

Overview :

MSI latest generation of AMD AM5 motherboard solutions delivers Outstanding Cooling Solution: Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.

Designed to make the most out of AMD's Ryzen 7000 series processors, the MEG X670E ACE features an 8-layer PCB constructed from 2 oz thickened copper internals, two reliable 8-pin CPU power connectors, PCIe Steel Armor slots, Digital PWM, and 22+2+1 power layout to ensure electrical throughput suitable for handling high-powered components. Additionally, you get access to 1-Second Overclocking, Load-Line Calibration, and Overvoltage Protection for enhanced power performance.

Specifications :

Product Name AMD Ryzen 7000 DDR5 128G
Manufacturer Part Number X670EACE
Product Type Desktop Motherboard
Chipset Manufacturer AMD
Chipset Model X670
Number of Memory Slots 4
Bluetooth Yes
Number of SATA Interfaces 6
Onboard Video CPU Dependent Video
RAID Supported Yes
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 3
Total Number of USB Ports 11
Total Number of Onboard USB Ports 10
Total Number of PCI Express Slots 3
10Gigabit Ethernet Yes
Number of M.2 Interfaces 4
Number of USB 3.2 Ports 3
Number of Onboard USB 3.2 Ports 6
Memory Technology DDR5 SDRAM
Processor Socket Socket AM5
Form Factor Extended ATX
Processor Supported Ryzen
Total Processor Supported 1
Controller Type Serial ATA/600
Maximum Memory Supported 128 GB
Audio Channels 7.1
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Number of Network (RJ-45) Ports 1
Number of Onboard USB 2.0 Ports 4
Number of USB 3.2 Gen 2 Type-A Ports 8
Country of Origin China
Width 12"
Depth 10.9"
Product Model X670E ACE
Product Line MEG
RAID Levels 0

1

10
S / PDIF Yes
Limited Warranty 3 Year
Brand Compatibility AMD
Stock Details
Manufacturer MSI
Manuf Part# X670EACE
