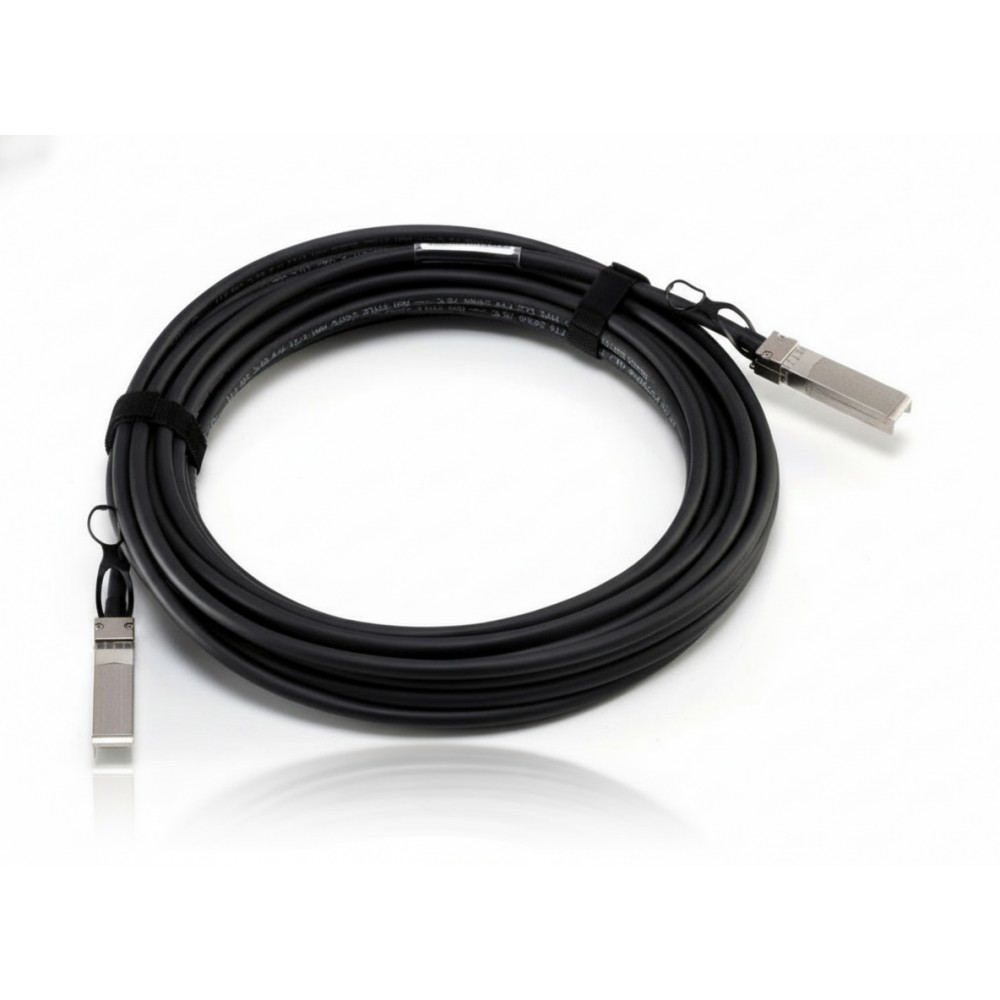

HPE J9285B X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable. View larger

HPE J9285B X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable.

J9285B

New

HPE J9285B X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable
×




Detailed Specifications

HPE J9285B Direct Attach Copper Cable

Overview :

The HPE J9285B X240 10G SFP+ 7m Direct Attach Copper Cable, also known as DAC, offers a robust and cost-effective solution for high-speed data transmission in networking applications. Designed to meet the bandwidth requirements of 10 Gigabit Ethernet (10GBase-CU), 8G Fiber Channel (FC), and 10G Fiber Channel over Ethernet (FCoE), this cable is ideal for short-reach links in environments such as high-performance computing (HPC), enterprise networking, top-of-rack switching, and network storage markets. With a length of 7 meters and using 24AWG Twinaxial wire, the J9285B cable ensures reliable performance and durability. It supports passive operation and features SFP+ connectors on both ends, facilitating seamless connectivity between compatible networking devices. The cable meets stringent industry standards including SFF-8472, SFF-8431, IEC/EN 61000-4-2, and MIL-STD-883E, ensuring compliance and reliability in various networking environments. It operates within a wide temperature range, making it suitable for both data center and storage area network (SAN) applications.

Specifications :

SpecificationDetails
Part Number J9285B
Form Factor SFP+ DAC
Data Rate 10.5 Gb/s
Passive or Actively Equalized Passive
Supply Voltage 3.3V
Length 7 meters
Product Type Direct Attach Copper Cable
Wire Gauge 24AWG
Minimum Bend Radius 35 mm
Jacket Type PVC
Connector SFP+ / SFP+
Digital Diagnostic Monitoring (DDM) N/A
Environment Operating: 0°C to 70°C<br>Storage: -40°C to 85°C
Weight 0.55 kg
Compliance SFF-8472, SFF-8431<br>IEC/EN 61000-4-2<br>MIL-STD-883E, RoHS
