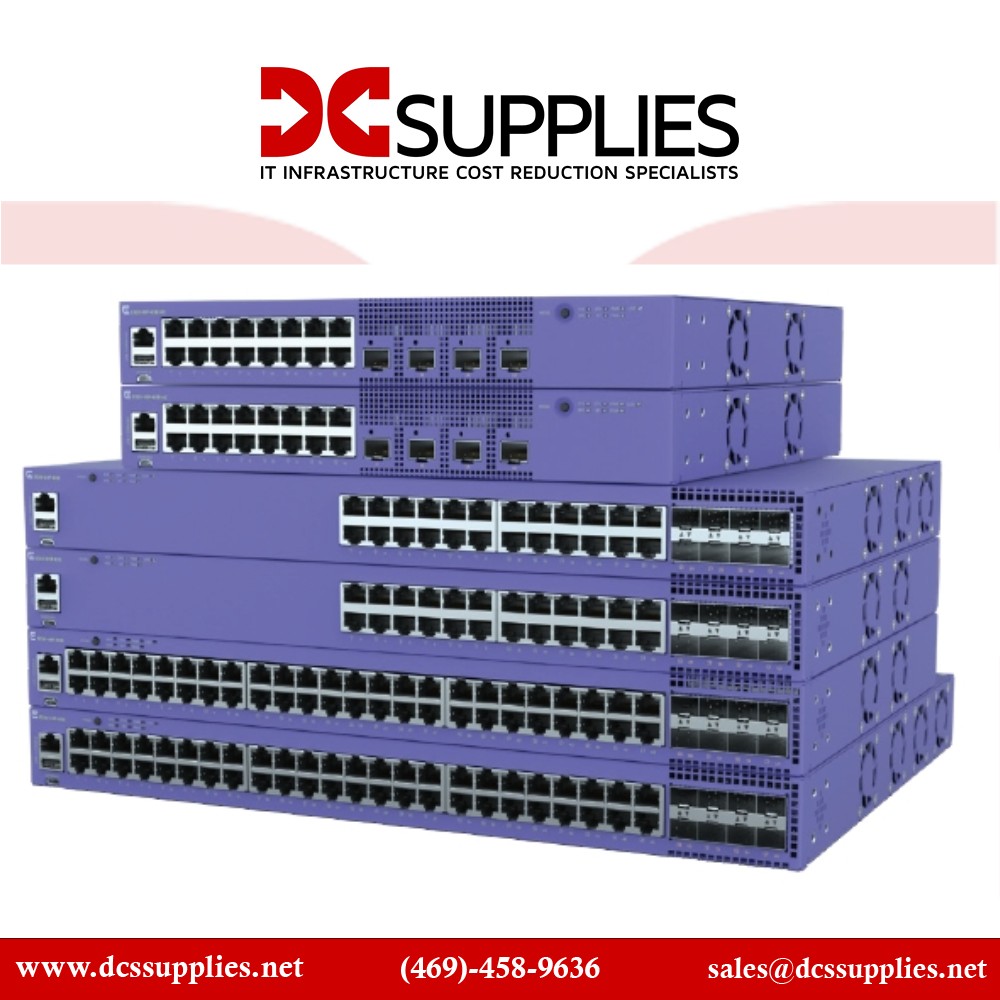

Extreme Networks 5520-24T 5520 series 5520-24T Switch View larger

Extreme Networks 5520-24T 5520 series switch

5520-24T

New

Extreme Networks 5520-24T 5520 series switch
×




Detailed Specifications

Extreme Networks 5520-24T 5520 series switch

Overview :

The ExtremeSwitching 5520 Series is a family of high-performance, feature-rich edge and aggregation switches designed for the nextgeneration digital enterprise. The 5520 Series universal hardware provides end-to-end secure network segmentation, in addition to advanced policy capabilities, and offers a user-selectable choice of Extreme's flagship switch operating systems. This makes the 5520 a uniquely flexible platform that can be deployed across a range of edge, aggregation and wiring-closet environments.

The 5520 Series includes 24- and 48-port 1 Gigabit models, 1/2.5/5 Gigabit multi-rate models, as well as a 24-port 10 Gigabit model. The family also offers 30/60/90W PoE making it an ideal wired backend for wireless APs or in support of next-gen powered Ethernet devices, such as digital signage, pan-tilt-zoom cameras, smart lighting or point-of-sale terminals. The 5520 further supports 10G and 25G modular uplinks for flexible linkage to other switches or devices over a range of media.

Specifications :

Product Name 24X10/100/1000MBPS Base-T Non PoE
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet

100 Gigabit Ethernet
Number of Total Expansion Slots 3
Product Family ExtremeSwitching 5520
Stack Port Yes
Media Type Supported Optical Fiber

Twisted Pair
Total Number of Network Ports 24
Redundant Power Supply Supported Yes
Expansion Slot Type QSFP28

Versatile Interface Module (VIM)
Form Factor Rack-mountable
Power Consumption 142 W
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Number of Power Supplies Supported 2
Modular Yes
Port / Expansion Slot Details 24 x Gigabit Ethernet Network

2 x Stack
Height 1.7"
Width 17.4"
Depth 17.4"
Product Series 5520
Product Model 5520-24T
Network Technology 10/100/1000Base-T

100GBase-X
Product Line ExtremeSwitching
Limited Warranty Lifetime
Additional Information 1-year XIQ Pilot Subscription
Stock Details
Manufacturer Extreme Networks Inc.
Manuf Part# 5520-24T
