ICX8200-48PF View larger

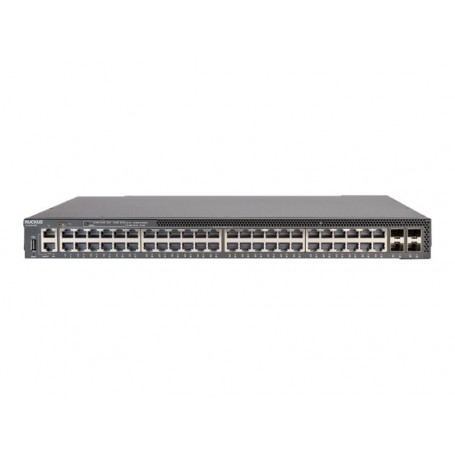

Ruckus ICX8200-48PF Switch 48 Ports Managed Rack-Mountable

ICX8200-48PF

New

In Stock

Ruckus ICX8200-48PF 48-port PoE+ switch with Layer 3 routing for robust network performance
×




$6,490.00

Detailed Specifications

Ruckus ICX8200-48PF Switch 48 Ports Managed Rack Mountable

Overview :

The Ruckus ICX8200-48PF is a high-performance 48-port PoE+ switch equipped with Layer 3 routing capabilities. Designed for enterprise-grade networks, it offers substantial PoE+ power delivery and robust performance, making it ideal for powering and connecting a wide range of network devices.

Key Features :

  • 48 x Gigabit Ethernet ports with PoE+ support
  • Advanced Layer 3 routing capabilities
  • High PoE+ power budget for extensive device powering
  • High switching capacity and low latency
  • Scalable with stacking support for network expansion
  • Energy-efficient design with low power consumption
  • Comprehensive Quality of Service (QoS) features
  • Secure network management with various protocols
  • Jumbo frame support for optimized data transfers
  • Enterprise-grade security features

Technical Specifications :

SpecificationDetail
Model ICX8200-48PF
Ports 48 x Gigabit Ethernet with PoE+
Product Type Ethernet Switch
Layer Support Layer 2 and Layer 3
Switching Capacity 960 Gbps
Forwarding Rate 715 Mpps
PoE+ Power Budget High PoE+ power budget
Stacking Support Yes, up to 12 switches
Jumbo Frame Support Yes (up to 9,216 bytes)
Power Supplies Optional redundant power supply
VLANs Up to 4,094 VLANs
Security 802.1x, ACLs, DHCP Snooping, IP Source Guard
Management SNMP, CLI, Web-based, RMON, Telnet
QoS Advanced QoS with 8 queues per port
Dimensions 17.4 x 1.73 x 17.3 inches (WxHxD)
Weight 13.2 lbs
Power Consumption 200W (max)
Operating Temperature 0°C to 45°C
