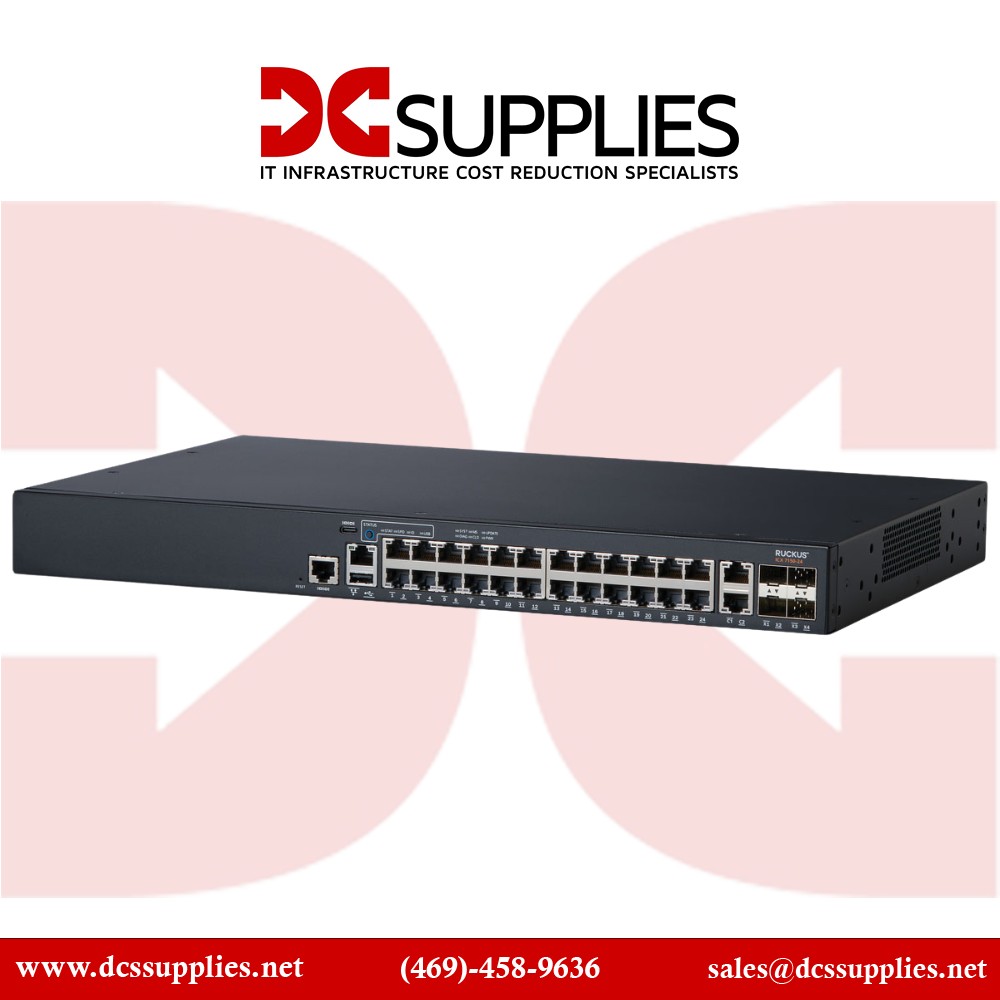

Ruckus ICX7150-24P-4X1G Managed Switch View larger

Ruckus ICX7150-24P-4X1G 24-Port Managed Switch with 4x 1G Ports

ICX7150-24P-4X1G

New

Ruckus ICX7150-24P-4X1G 24-Port Gigabit PoE Switch with 4x1G SFP, offering advanced management
×




Detailed Specifications

Ruckus ICX7150-24P-4X1G 24-Port Managed Switch

Overview :

The ICX7150-24P-4X1G is a high-performance managed switch with 24 Gigabit Ethernet ports and 4 SFP ports for flexible connectivity. It features Power over Ethernet (PoE) to simplify network installation and provide power to connected devices like IP cameras and phones. With its advanced management capabilities, this switch is ideal for both enterprise and campus environments, offering robust performance and reliability for demanding network applications.

Key Features:

  • 24 Gigabit Ethernet Ports: Provides high-speed connectivity for network devices.
  • 4 x 1G SFP Ports: Enables flexible and high-speed fiber connections.
  • Power over Ethernet (PoE): Delivers power to PoE-enabled devices, reducing the need for additional power supplies.
  • Advanced Management: Offers comprehensive network management features for optimal performance and security.
  • High Performance: Ensures reliable data transfer and efficient network operation.
  • Scalability: Supports network growth and expansion with additional SFP modules.
  • Enhanced Security: Features advanced security protocols to protect network data.

Technical Specifications:

SpecificationDetails
Model ICX7150-24P-4X1G
Product Type Ethernet Switch
Ports 24 x 10/100/1000 Mbps (Gigabit Ethernet), 4 x 1G SFP
PoE Support Yes, 802.3af/at
Switching Capacity Up to 56 Gbps
Forwarding Rate Up to 41.67 Mpps
Managed Yes
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Humidity 10% to 90% (non-condensing)
Dimensions (WxHxD) 17.3 x 1.7 x 11.8 inches (439 x 43 x 300 mm)
Weight 8.4 lbs (3.8 kg)
Power Supply AC 100-240V, 50-60Hz
