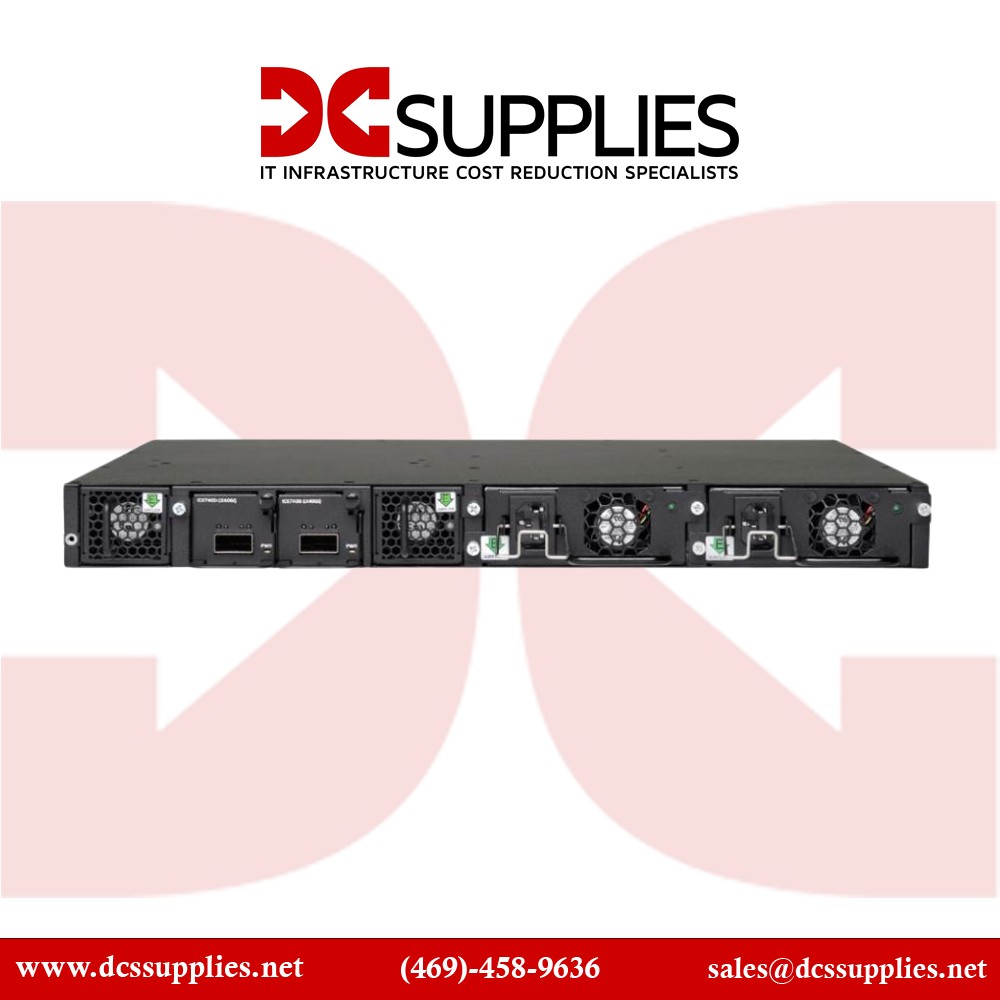

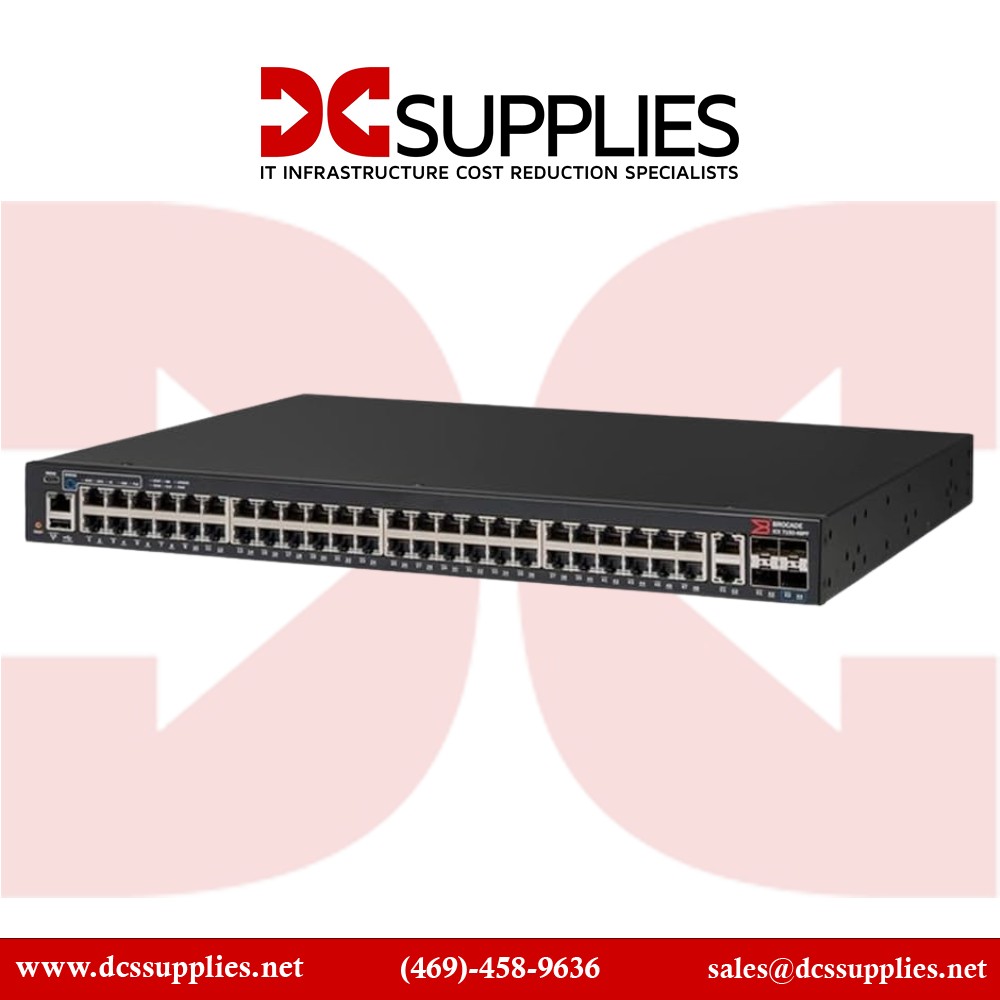

Ruckus Wireless ICX7650-48ZP-E-RMT3 LLC - Advanced Network Switch View larger

Ruckus ICX7650-48ZP-E-RMT3 48-Port 24XMG PoE Switch with 1 PSU

ICX7650-48ZP-E-RMT3

New

Ruckus ICX7650-48ZP-E-RMT3 48-Port PoE switch with Layer 3 routing, 1/10GbE, 1500W power
×




Detailed Specifications

Ruckus ICX7650-48ZP-E-RMT3 48-Port 24XMG PoE+ Switch with 1 PSU

Overview :

The Ruckus ICX7650-48ZP-E-RMT3 is a high-performance, enterprise-grade Layer 3 switch featuring 48 PoE+ ports with support for 1GbE and 10GbE connections. Designed to deliver reliable and scalable networking, it provides 1500W of PoE power, ideal for powering devices such as IP cameras, phones, and wireless access points. With robust Layer 3 functionality, it offers advanced security, high-availability features, and simplified management, making it perfect for modern enterprise networks.

Key Features :

  • 48x 1/10GbE PoE+ ports
  • Layer 3 routing and switching
  • 1500W PoE budget to power devices

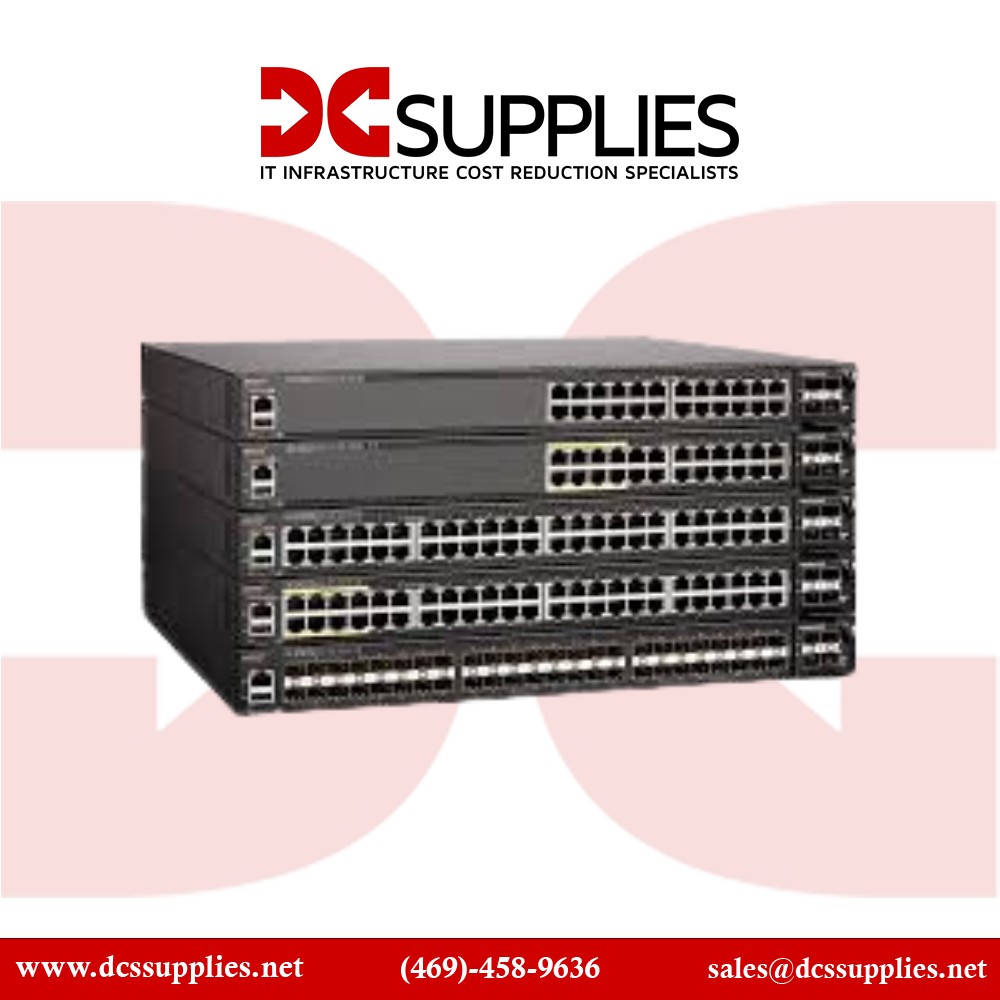

  • Stackable up to 12 units for scalability
  • Supports 10GbE, 40GbE uplinks
  • Switching capacity of 1.08 Tbps, forwarding capacity of 714 Mpps
  • Redundant power supplies for high availability
  • Front-to-back airflow for optimized cooling
  • Advanced security features including MACsec
  • VXLAN and VRF support for network segmentation
  • Easy management via CLI, SNMP, and web-based interface

Technical Specifications :

SpecificationDetail
Model ICX7650-48ZP-E-RMT3
Port Count 48x 1/10GbE PoE+ Ports
Layer Layer 3
Switching Capacity 1.08 Tbps
Forwarding Capacity 714 Mpps
Max Port Speed 10GbE
PoE Power Budget 1500W
Stacking Capability Up to 12 units
Latency 600 ns
Power Supply Redundant
Power Consumption 400W (base unit)
Cooling System Front-to-back airflow
Dimensions 1.72 x 17.32 x 18.11 in (HxWxD)
Weight 24 lbs (10.9 kg)
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Humidity Range 10% to 95% non-condensing
Advanced Security MACsec, ACLs
Virtualization Support VXLAN, VRF
Management Options CLI, SNMP, Web UI
Standards Supported IEEE 802.3, 802.1Q, 802.3at, 802.3ad
