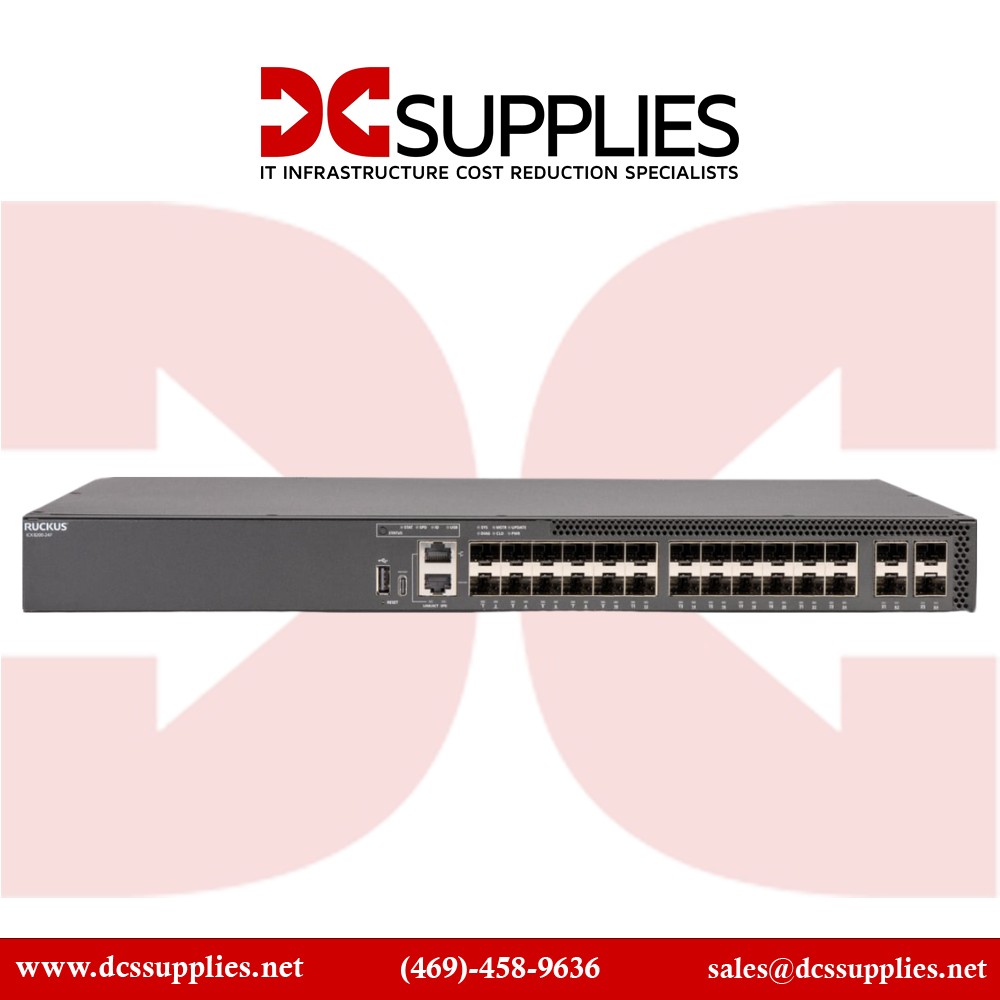

Ruckus ICX7550-24ZP-E2 switch 24 ports managed rack-mountable View larger

Ruckus ICX7550-24ZP-E2 switch 24 ports managed rack-mountable

ICX7550-24ZP-E2

New

In Stock

Ruckus ICX7550-24ZP-E2 24-port 10GbE PoE switch with Layer 3 routing and high power
×




$2,790.00

Detailed Specifications

Ruckus ICX7550-24ZP-E2 switch 24 ports managed rack mountable

Overview :

The Ruckus ICX7550-24ZP-E2 is a high-performance 24-port 10GbE PoE+ switch, designed for enterprise networks needing both high-speed connectivity and power over Ethernet capabilities. With robust Layer 3 routing features, this switch supports advanced networking and management functionalities. Its high PoE+ power budget is perfect for powering devices like IP cameras and access points, making it a versatile choice for modern network infrastructures.

Key Features :

  • 24 x 10GbE PoE+ ports
  • Advanced Layer 3 routing with IPv4 and IPv6 support
  • High PoE+ power budget for powering network devices
  • Scalable with stacking support for network expansion
  • Energy-efficient with low power consumption
  • Secure network management with multiple protocols
  • Jumbo frame support for efficient data transfers
  • Comprehensive Quality of Service (QoS) features
  • Redundant power supplies for enhanced reliability
  • Enterprise-grade network security features

Technical Specifications :

SpecificationDetail
Model ICX7550-24ZP-E2
Ports 24 x 10GbE PoE+
Layer Support Layer 2 and Layer 3
Switching Capacity 960 Gbps
Forwarding Rate 714 Mpps
Stacking Support Yes, up to 12 switches
Jumbo Frame Support Yes (up to 9,216 bytes)
Power Supplies Optional redundant power supply
PoE+ Power Budget High PoE+ power budget
VLANs Up to 4,094 VLANs
Security 802.1x, ACLs, DHCP Snooping, IP Source Guard
Management SNMP, CLI, Web-based, RMON, Telnet
QoS Advanced QoS with 8 queues per port
Dimensions 17.4 x 1.73 x 15.7 inches (WxHxD)
Weight 13.5 lbs
Power Consumption 210W (max)
Operating Temperature 0°C to 45°C
