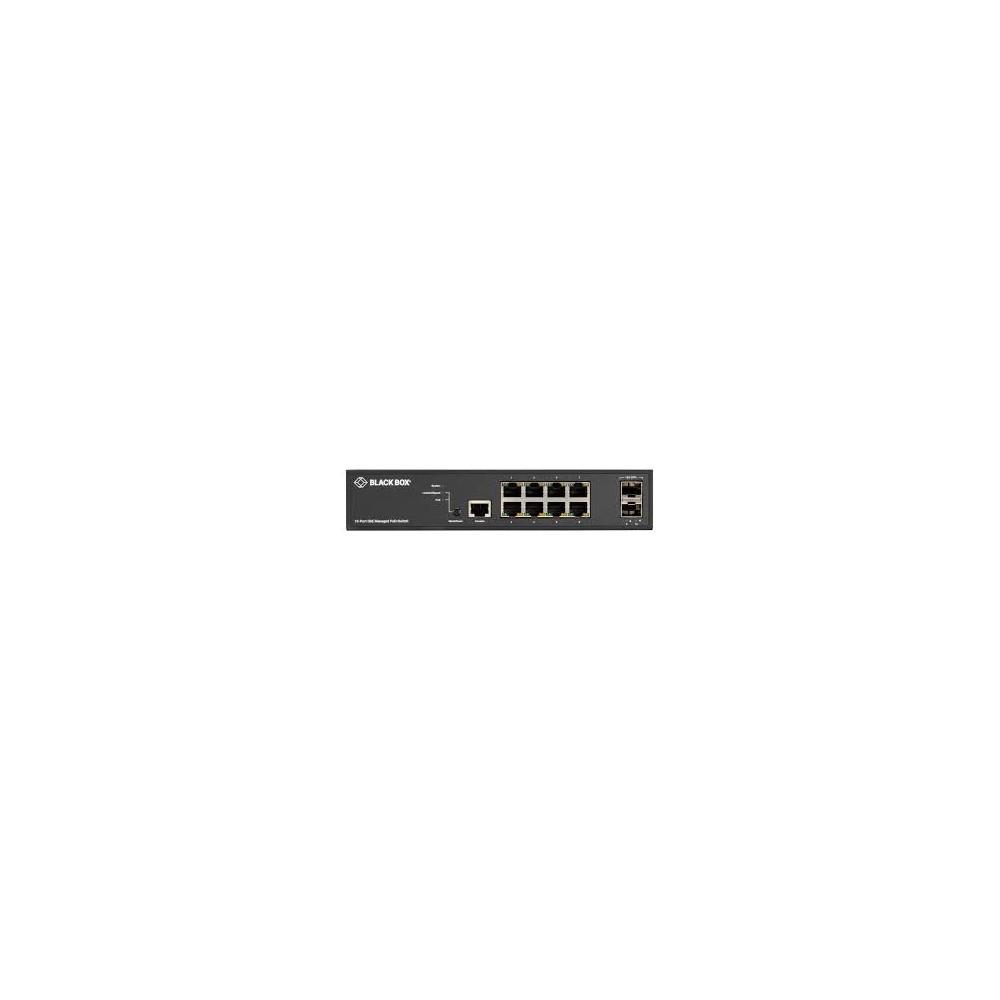

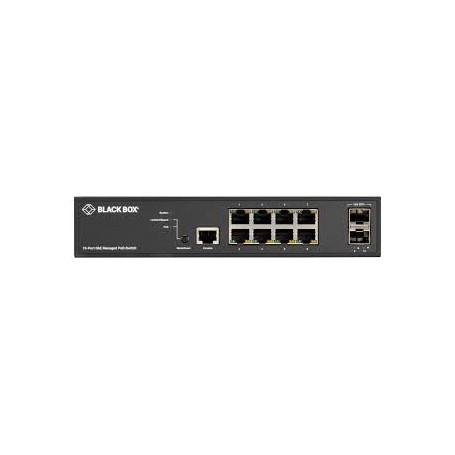

Black Box LPB3010A 10-Port Managed Gigabit Switch with PoE+ View larger

Black Box LPB3000 Series 10-Port Managed Switch

LPB3010A

New

10-port managed switch from the LPB3000 Series for efficient network management

×




Detailed Specifications

Black Box LPB3010A LPB3000 Series 10-Port Managed Switch

Overview:

The Black Box LPB3010A LPB3000 Series switch delivers robust scalability, enhanced security, and Power over Ethernet (PoE+) to your LAN access network. With 10/100/1000BASE-T UTP ports and 1G/10G SFP+ ports, this fully managed switch supports advanced management features and enterprise-class security, making it a perfect fit for modern network environments.

The Black Box LPB3010A is a versatile 10-port managed switch from the LPB3000 Series, designed to offer advanced network management and performance optimization. This switch is ideal for businesses and organizations seeking to enhance their network infrastructure with reliable and efficient connectivity solutions. The LPB3010A features a user-friendly management interface, enabling easy configuration and monitoring of network traffic. With robust support for VLANs, QoS, and link aggregation, it ensures high network performance and security. The switch's compact design allows for flexible installation in various environments, making it suitable for both small and medium-sized networks. Its high reliability and scalability make it an excellent choice for growing networks that require consistent and high-speed data transfer.

Specifications:

SpecificationDetails
Brand Black Box
Product Line Black Box LPB3000 Series
Model LPB3010A
Network Standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Features DHCP client, DHCP relay, IGMP proxy, IPv4/IPv6 support, VLAN support
Form Factor Desktop, Wall-mountable
Jumbo Frame Support 10KB
MAC Address Table 16K entries
Manageable Yes
PoE Budget 130 watts
Ports 10 (8 x 1000Base-T RJ-45 PoE+, 2 x Gigabit/10Gbit LAN SFP+ uplink)
Power Over Ethernet PoE+
Remote Management HTTP, RMON, SNMP, SSH, Telnet
Routing Protocols IGMP, IGMPv2, IGMPv3
Status Indicators Link/activity, Port transmission speed, Power
Switching Type Gigabit Ethernet
Max Operating Temp 122°F (50°C)
Min Operating Temp 32°F (0°C)
Operating Humidity Up to 95% (non-condensing)
Dimensions (H x W x D) 1.7 x 8.7 x 9.5 inches (43.2 x 221 x 241 mm)
Weight 5.07 lbs (2.3 kg)
Certifications FCC
