TRENDnet TPE-1020WS 10-Port Gigabit Web Smart PoE+ Switch View larger

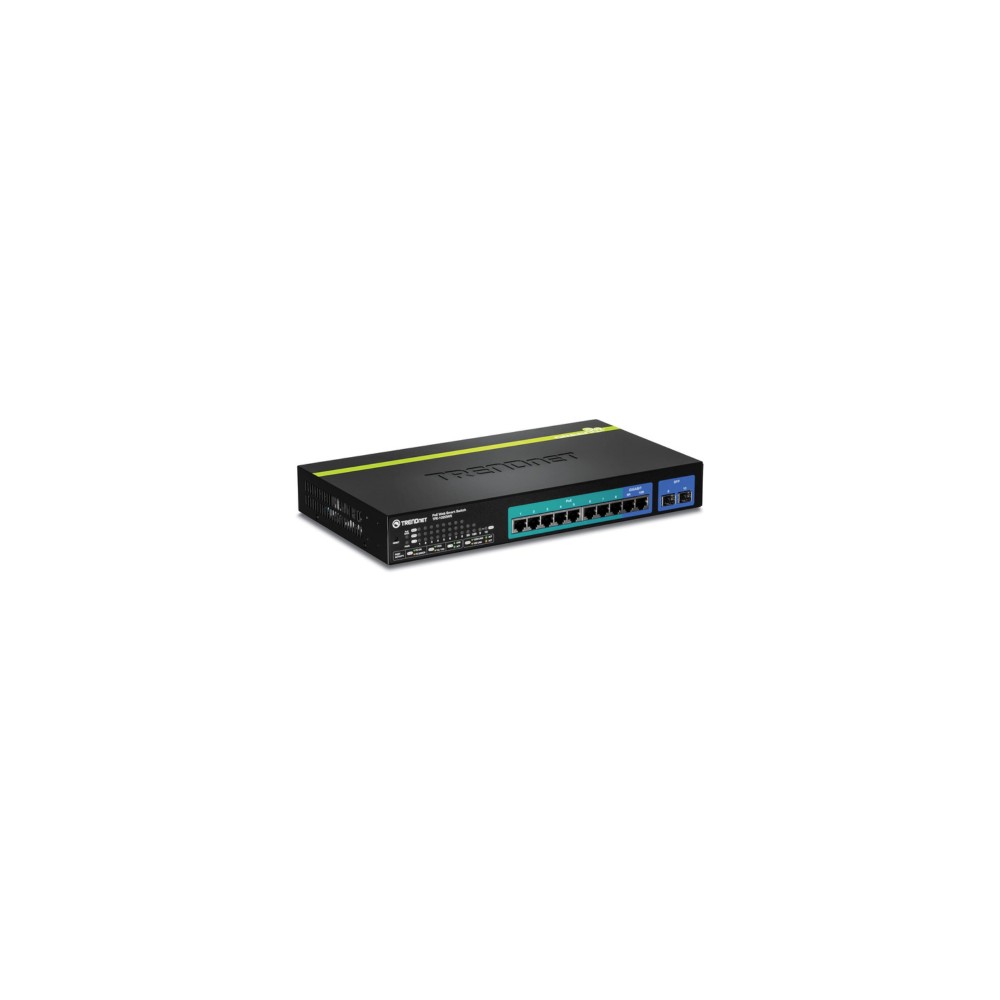

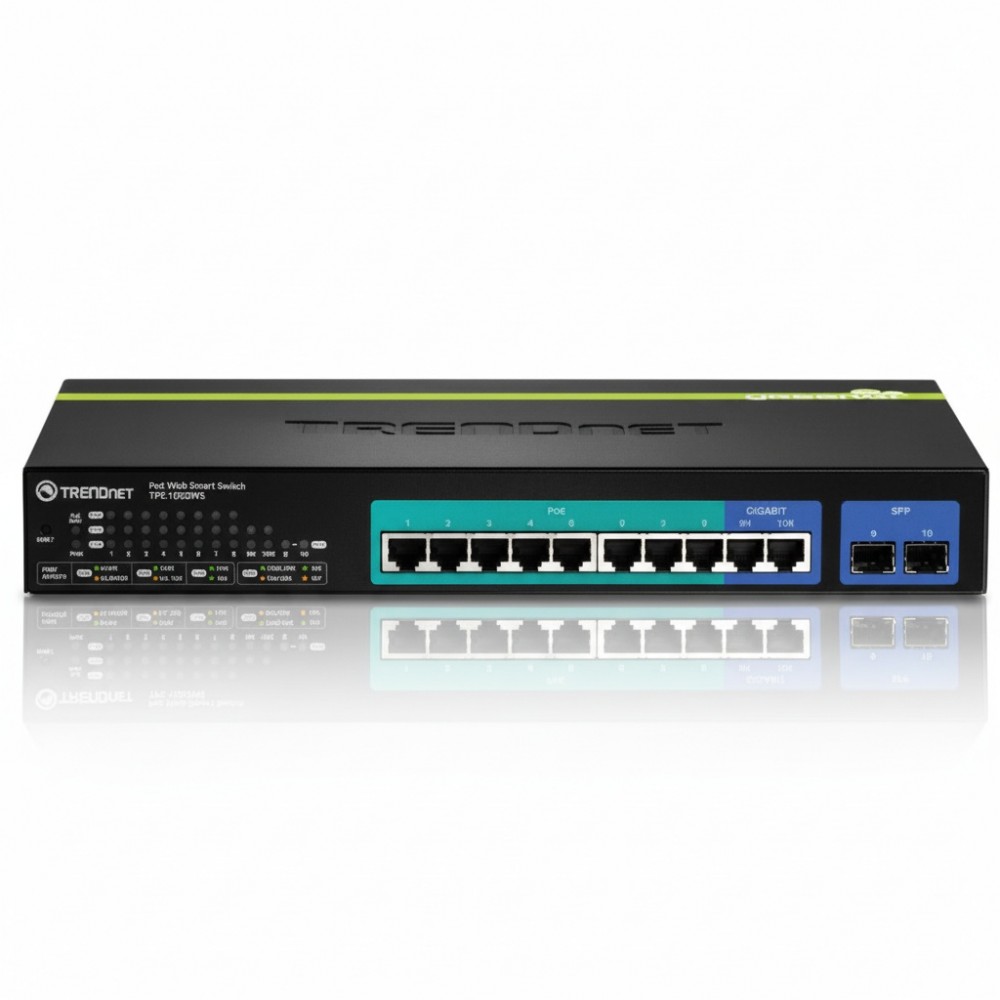

TRENDnet TPE-1020WS 10-Port Gigabit Web Smart PoE+ Switch

TPE-1020WS

New

The TRENDnet TPE-1020WS is a 10-port Gigabit Web Smart PoE+ Switch with 8 PoE+ ports
×




Detailed Specifications

TRENDnet TPE-1020WS 10-Port Gigabit Web Smart PoE+ Switch

Overview :

The TRENDnet TPE-1020WS is a 10-port Gigabit Web Smart PoE+ Switch designed to provide a reliable and efficient networking solution for small to medium-sized businesses. Featuring eight Gigabit PoE+ ports and two dedicated Gigabit uplink ports, this switch allows for seamless network expansion and integration. The PoE+ technology delivers up to 30 watts per port, making it ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE-compatible devices without the need for additional power cables.

With a total PoE power budget of 125 watts, the TPE-1020WS ensures sufficient power distribution across all PoE devices connected to the network. The switch also offers advanced web-based management features, such as VLAN, QoS, Link Aggregation, and port monitoring, to optimize network performance and security. Its fanless design ensures silent operation, making it suitable for noise-sensitive environments. Additionally, its robust metal housing ensures durability for long-term usage.

Specification :

FeatureSpecification
Model TRENDnet TPE-1020WS
Type 10-Port Gigabit Web Smart PoE+ Switch
Ports 8 x Gigabit PoE+ Ports, 2 x Gigabit SFP Slots
PoE Standard IEEE 802.3at/af (PoE/PoE+)
PoE Power Budget 75 Watts
Switching Capacity 20 Gbps
MAC Address Table 8K MAC Address Entries
Management Web-based Management Interface
VLAN Up to 256 VLANs
QoS IEEE 802.1p (Traffic Prioritization), DSCP
Link Aggregation IEEE 802.3ad (Up to 5 groups)
Jumbo Frame Up to 10 KB
Power Supply Internal Power Supply (110-240V AC, 50/60Hz)
Dimensions 279 x 182 x 44 mm (11.0 x 7.17 x 1.73 in)
Weight 1.98 kg (4.37 lbs)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Certifications CE, FCC, RoHS
