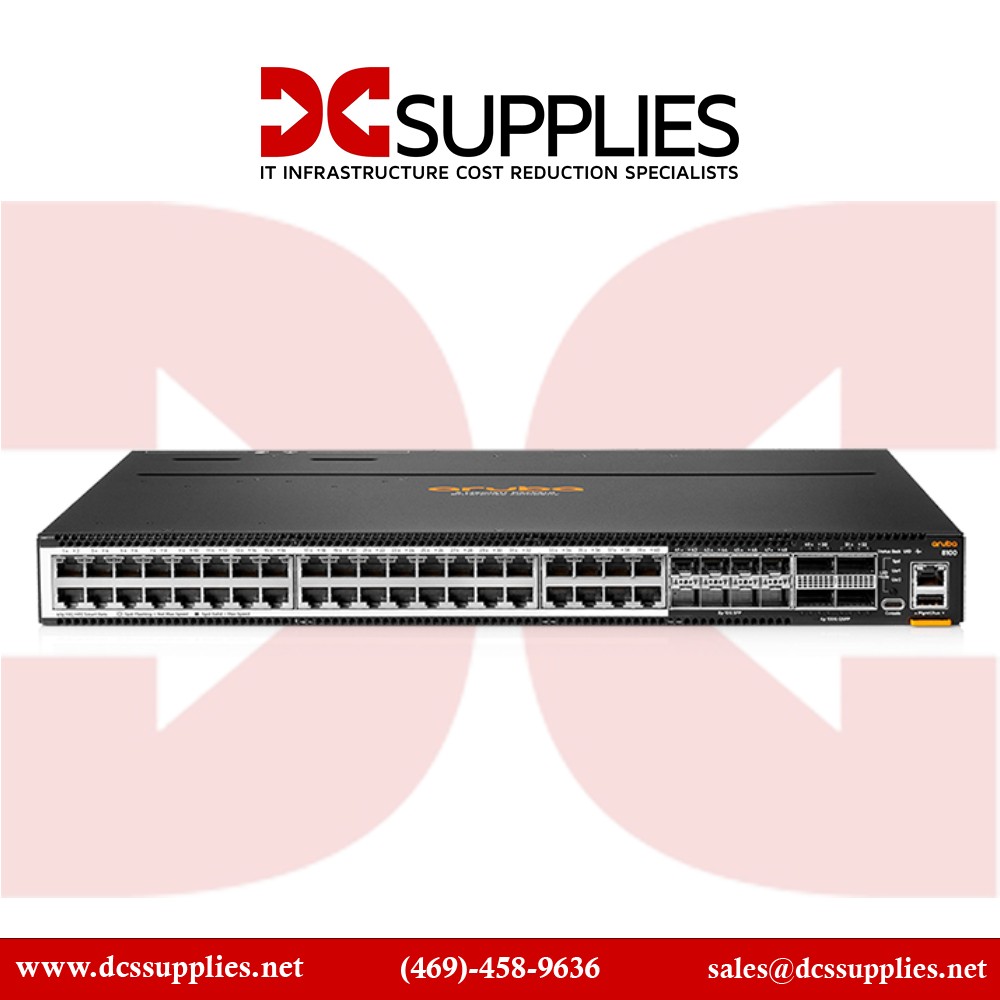

HPE Aruba Networking CX 8100 40 ports Ethernet switch 40 ports View larger

HPE Aruba Networking CX 8100 40 ports Ethernet switch 40 ports

R9W92A

New

HPE Aruba Networking CX 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch
×




Detailed Specifications

HPE R9W92A Ethernet Switch

Overview :

The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT. The HPE CX 8100 Switches are based on AOS-CX, a modern software system that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, and delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are also available in every switch. The series includes industry-leading line rate ports with 1/10GbE (SFP/SFP+) and 40/100GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G. These switches are great for customers needing 1GbE/10GbE with a mix of fiber and copper ports.

Specifications :

Product Name HPE Networking 8100-40XT8XF4C FB3F2AC Bundle PL-NV
Manufacturer Part Number R9W92A#ABA
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology 10 Gigabit Ethernet 100 Gigabit Ethernet
Product Family CX 8100
Media Type Supported Optical Fiber Twisted Pair
Total Number of Network Ports 40
Total Number of Expansion Slots 12.0
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Expansion Slot Type SFP+ QSFP28 SFP QSFP+
Form Factor Surface Mount Cabinet Mount Rack-mountable Compact
Power Consumption 500 W
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Compatible Rack Unit 1U
Number of Power Supplies Supported 2
Network (RJ-45) Yes
Number of SFP+ Slots 8
Modular Yes
Uplink Port Yes
Product Color Black
Height 1.7"
Width 17.4"
Depth 16"
Product Series CX 8100
Product Model 40XT8XF4C
Network Technology 10GBase-X 100GBase-X 10GBase-T
Input Voltage 120 V AC 230 V AC
Limited Warranty Lifetime
Color Family Black
Frequency 50 Hz 60 Hz
