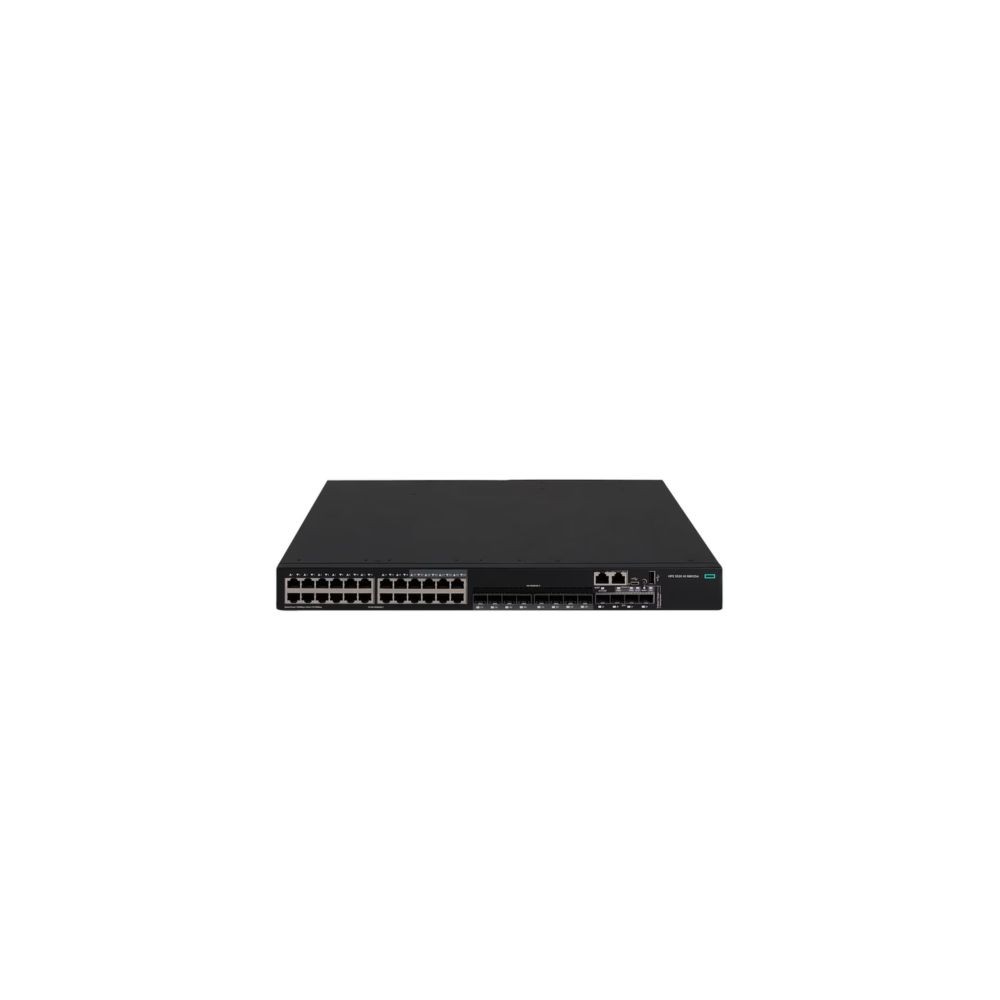

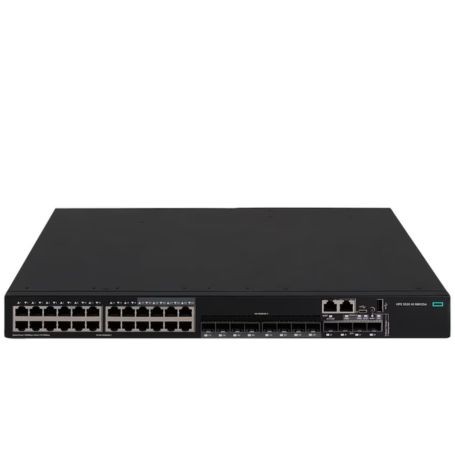

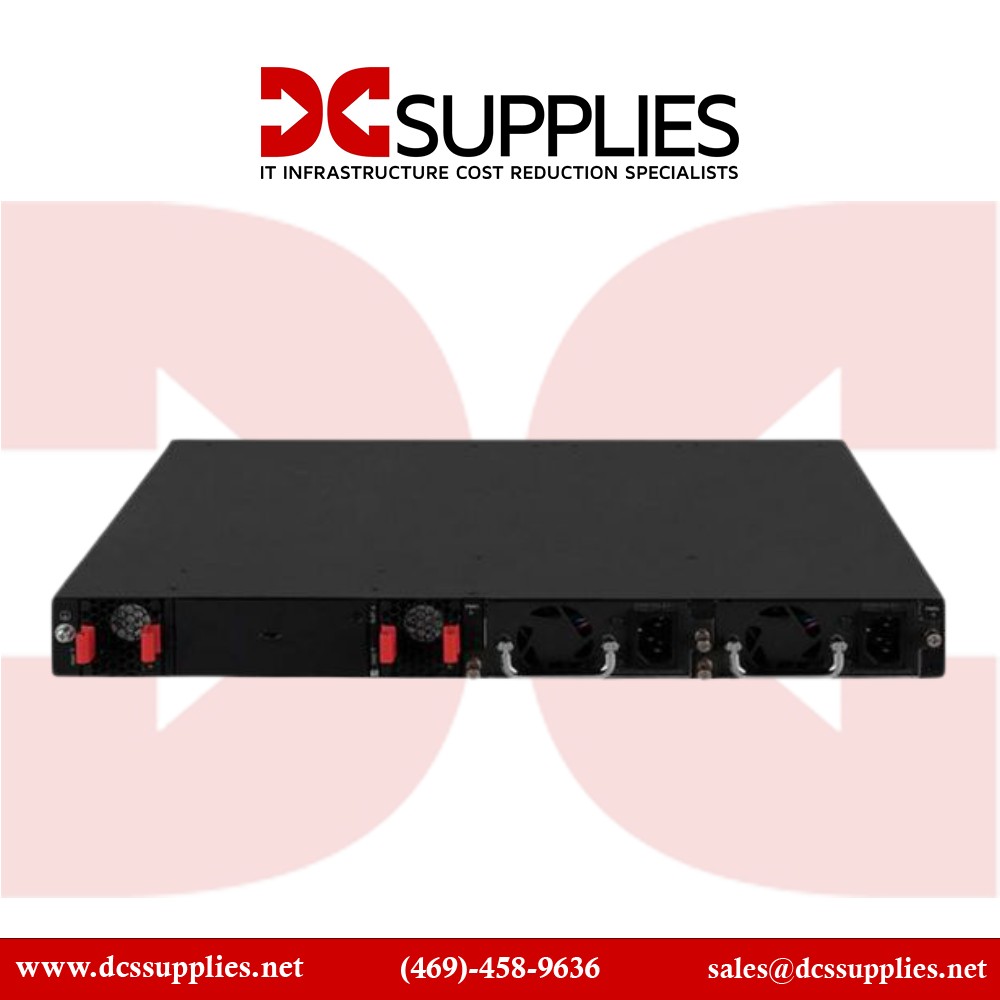

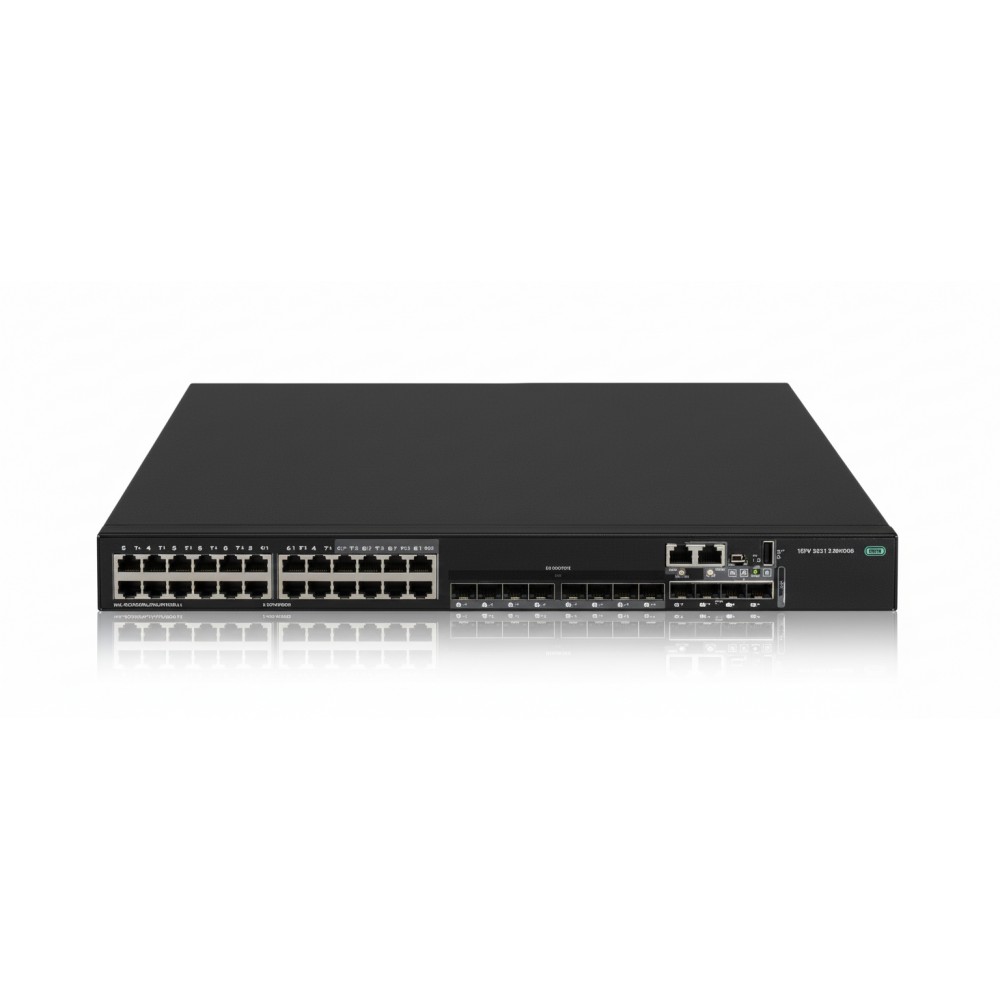

HPE R8M25A 5520 24G Ethernet Switch 4SFP+ Hi Switch Power Supply View larger

HPE R8M25A 5520 24G Ethernet Switch 4SFP+ Hi Switch Power Supply

R8M25A

New

HPE R8M25A 5520: 24G Ethernet switch with 4 SFP+ uplinks and power supply
×




Detailed Specifications

HPE R8M25A Ethernet Switch

Overview :

The HPE FlexNetwork 5520 HI Switch series delivers superior performance, high availability, and simplified manageability by leveraging advanced features at the access and aggregation layer of medium and large enterprise networks.

These switches deliver faster performance and advanced L3 features with support for larger ARP/MAC tables and Longest Prefix Match (LPM). VXLAN and EVPN enable multitenant isolation and greater scalability; high availability and resiliency provided by Distributed Resilient Network Interconnect (DRNI), Intelligent Resilient Framework (IRF), Virtual Router Redundancy Protocol (VRRP), Equal-Cost Multipath (ECMP) and Bi-directional Forwarding Detection (BFD). Real-time network health, network and switch performance and visibility provided with Intelligent Management Center (IMC) and Intelligent Network Quality Analyzer (iNQA). Support for IPv4/IPv6, OpenFlow, and MPLS/VPLS features provides investment protection and eases transition from IPv4 to IPv6 networks.

Specifications :

Product Name HPE 5520 24G 4SFP+ Hi Switch
Manufacturer Part Number R8M25A
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet

10 Gigabit Ethernet
Product Family FlexNetwork 5520 HI
Media Type Supported Optical Fiber

Twisted Pair
Total Number of Network Ports 24
Total Number of Expansion Slots 13.0
Expansion Slot Type SFP+
Form Factor Rack-mountable

Cabinet Mount
Power Consumption 24 W
Power Source Power Supply
Layer Supported 3
Compatible Rack Unit 1U
Number of Power Supplies Supported 2
Network (RJ-45) Yes
Number of SFP+ Slots 4
Modular Yes
Uplink Port Yes
Shared SFP Slot Yes
Port / Expansion Slot Details 16 x Gigabit Ethernet Network

8 x Gigabit Ethernet TP/SFP Combo

4 x 10 Gigabit Ethernet Expansion Slot

1 x Expansion Slot
Height 1.7"
Width 17.3"
Depth 14.2"
Product Series 5520 HI
Product Model 5520 24G 4SFP+ HI
Network Technology 10/100/1000Base-T

100/1000Base-X

10GBase-X
Product Line FlexNetwork
Frequency 50 Hz

60 Hz
