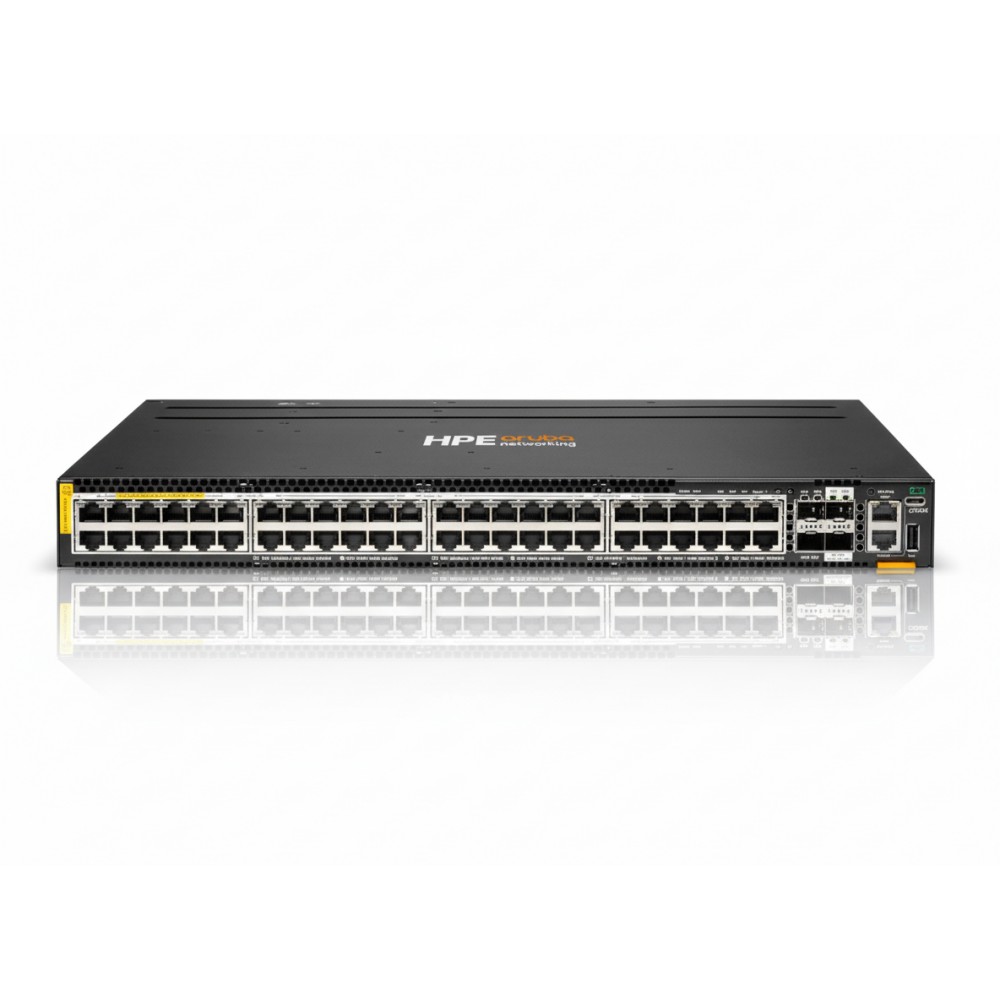

HPE S0G04A Anw 6300M 48SR5 CL6 PoE 4S View larger

HPE S0G04A Anw 6300M 48SR5 CL6 PoE 4S

S0G04A

New

HPE S0G04A 6300M: 48-port PoE+ switch with 4 SFP+ uplinks for advanced enterprise networks
×




Detailed Specifications

HPE S0G04A Ethernet Switch

Overview :

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackableswitcheside al for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Networwing Analytics Engine, the CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of HPE Aruba Networking NetEdit and HPE CX Mobile App verify that configurations are flawless and easy to deploy.

A powerful HPE Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow's unpredictable demands. HPE Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices.

Specifications :

Product Name HPE Anw 6300M 48SR5 CL6 PoE 4S
Manufacturer Part Number S0G04A
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology 5 Gigabit Ethernet

50 Gigabit Ethernet
Product Family CX 6300
Media Type Supported Twisted Pair

Optical Fiber
Total Number of Network Ports 48
PoE (RJ-45) Port Yes
Total Number of Expansion Slots 4
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Waste Electrical and Electronic Equipment Directive (WEEE)
Expansion Slot Type SFP56
Form Factor Rack-mountable
Layer Supported 3
Maximum Data Transfer Rate 6.25 GB/s
Uplink Port Yes
Port / Expansion Slot Details 48 x 5 Gigabit Ethernet PoE

4 x 50 Gigabit Ethernet Expansion Slot
Networking Standards IEEE 802.3bt
Height 1.7"
Width 17.4"
Depth 15.2"
Product Series CX 6300
Network Technology 5GBase-T

50GBase-X
Limited Warranty Lifetime
