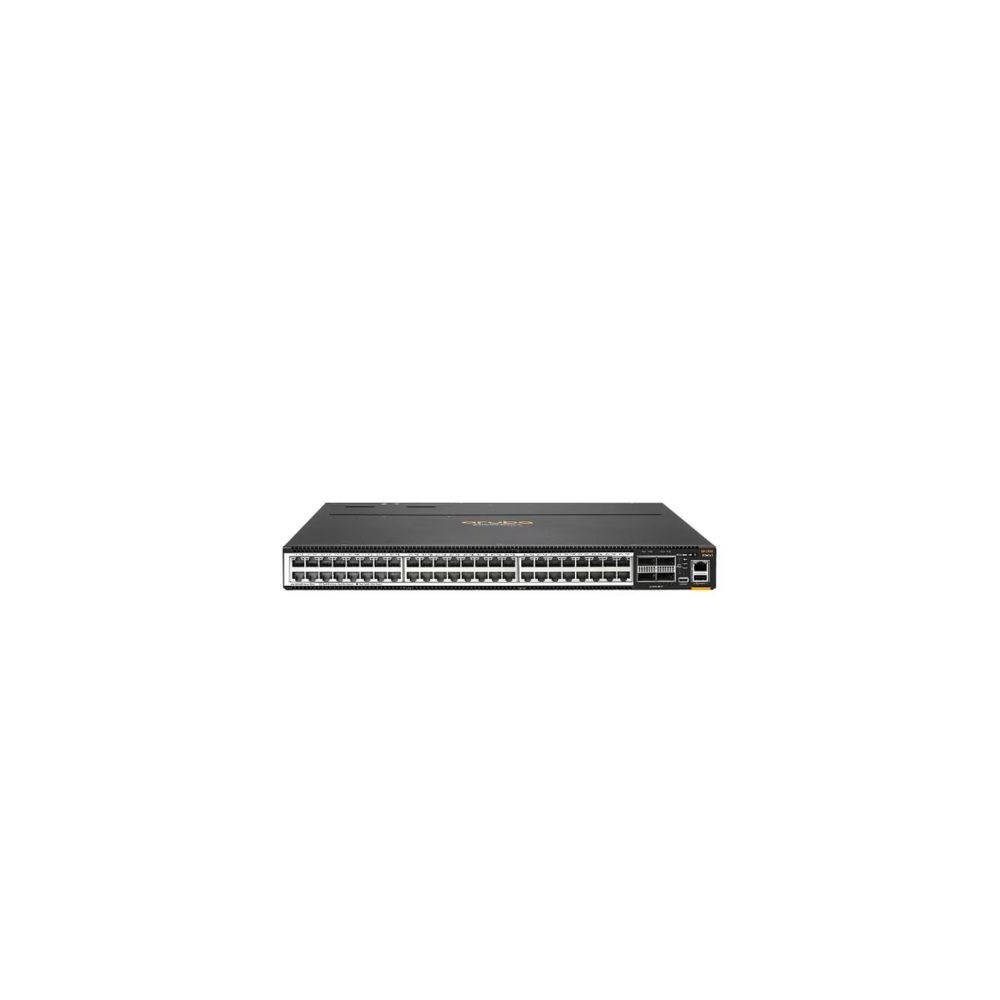

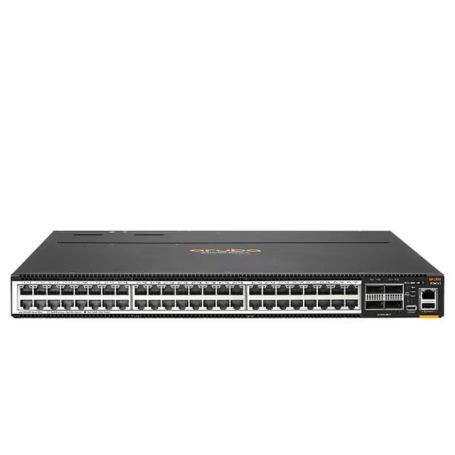

HPE Aruba JL707C CX 8360 Ethernet switch 48 ports View larger

HPE Aruba JL707C CX 8360 Ethernet switch 48 ports

JL707C

New

×




Detailed Specifications

HPE Aruba JL707C Ethernet switch

Overview :

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches meet the requirements of next-generation campus core and aggregation layers, as well as virtual and cloud data center environments. The Aruba CX 8360-48Y6C v2 switch is the first in this series.

In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.

  • High-performance 4.8Tbps and 2,678 Mpps
  • Intelligent monitoring and visibility with Aruba Network Analytics Engine
  • High availability with industry leading VSX redundancy, and redundant power supplies and fans
  • Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
  • MACsec secured connectivity over untrusted domains
  • Aruba OS-CX automation and programmability using built-in REST APIs and Python scripts

Specifications :

Product Name Aruba 8360 Ethernet Switch
Manufacturer Part Number JL707C
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology 10 Gigabit Ethernet, 100 Gigabit Ethernet
Product Family CX 8360
Media Type Supported Optical Fiber, Twisted Pair
Total Number of Network Ports 48.0
Total Number of Expansion Slots 4.0
Redundant Power Supply Supported Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Expansion Slot Type QSFP28
Power Consumption 500 W
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Number of Power Supplies Supported 2
Network (RJ-45) Yes
Modular Yes
Uplink Port Yes
Port / Expansion Slot Details 48 x 10 Gigabit Ethernet Network, 4 x 100 Gigabit Ethernet Expansion Slot
Product Series CX 8360
Product Model 8360v2- 48XT4C
Network Technology 10GBase-T, 100GBase-X
Frequency 50 Hz, 60 Hz
