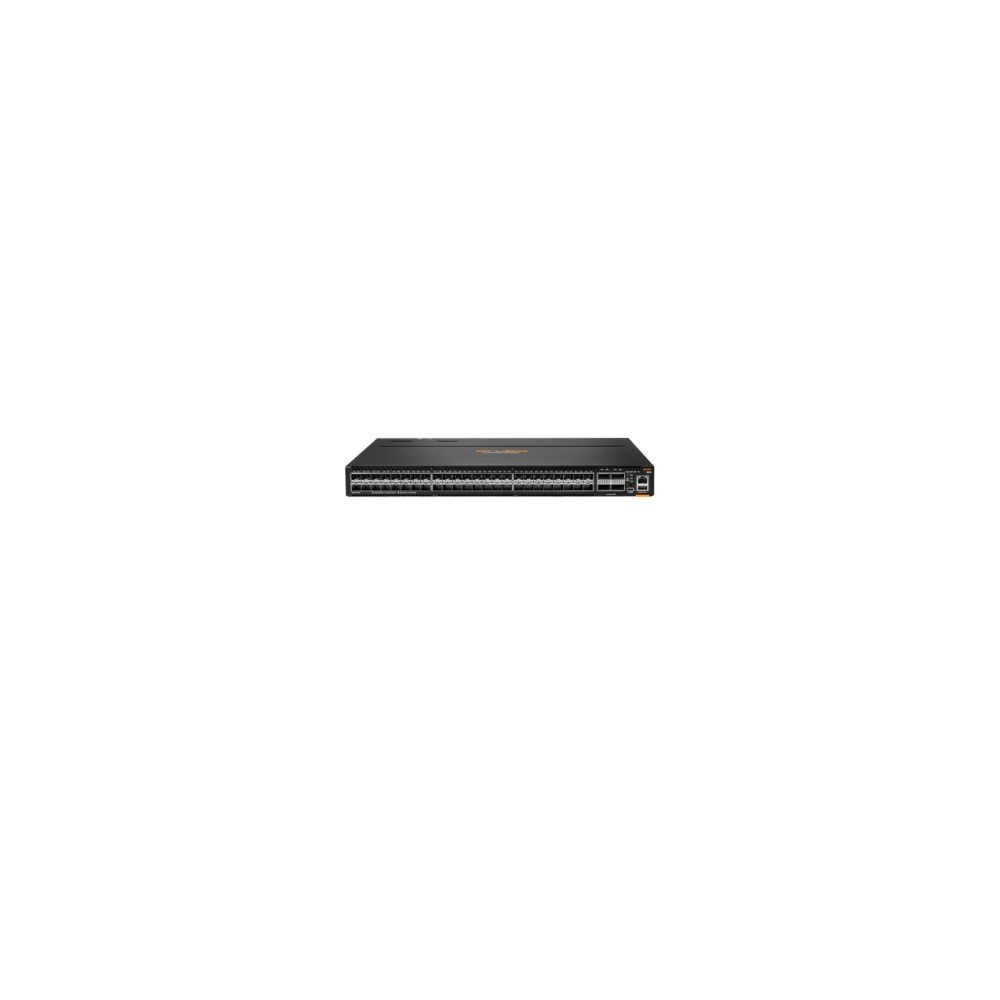

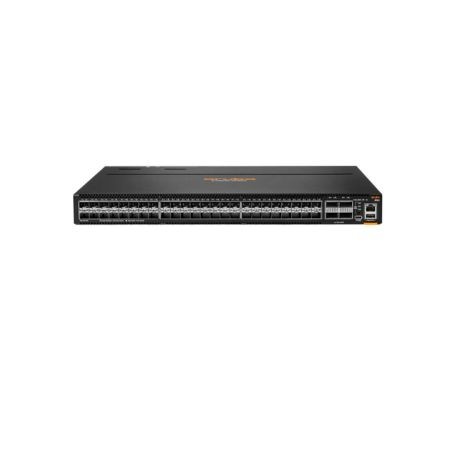

HPE Aruba R9W96A CX 8100 Ethernet Switch 52 Ports View larger

HPE Aruba R9W96A CX 8100 Ethernet Switch 52 Ports

R9W96A

New

HPE Aruba R9W96A CX 8100 Ethernet Switch - 52-Port High-Performance Switch
×




Detailed Specifications

HPE Aruba R9W96A Ethernet Switch

Overview :

The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT. The HPE CX 8100 Switches are based on AOS-CX, a modern software system that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, and delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are also available in every switch. The series includes industry-leading line rate ports with 1/10GbE (SFP/SFP+) and 40/100GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G. These switches are great for customers needing 1GbE/10GbE with a mix of fiber and copper ports.
  • High-performance 1.76Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
  • Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.
  • High availability with industry-leading VSX redundancy and redundant power supplies and fans.
  • Aruba AOS-CX automation and programmability using built-in REST APIs and Python scripts with intelligent monitoring and visibility delivered by the Aruba Network Analytics Engine.

 Specifications :

Product Name Aruba 8100-48XF4C Switch PL-NV
Manufacturer Part Number R9W96A
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology 10 Gigabit Ethernet, 100 Gigabit Ethernet
Product Family CX 8100
Media Type Supported Optical Fiber
PoE (RJ-45) Port Yes
Total Number of Expansion Slots 52
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Expansion Slot Type SFP+, QSFP28, SFP, QSFP+
Form Factor Surface Mount, Cabinet Mount, Rack-mountable
Power Consumption 450 W
Power Source AC, Power Supply
Layer Supported 3
Environmentally Friendly Yes
Number of Power Supplies Supported 2
Modular Yes
Uplink Port Yes
Port / Expansion Slot Details 52 x 10 Gigabit Expansion Slot
Height 1.7"
Width 17.4"
Depth 16"
Product Series CX 8100
Product Model 48XF4C
Network Technology 10GBase-X, 100GBase-X, 40GBase-X, 1000Base-X
Input Voltage 120 V AC, 230 V AC
Frequency 50 Hz, 60 Hz
