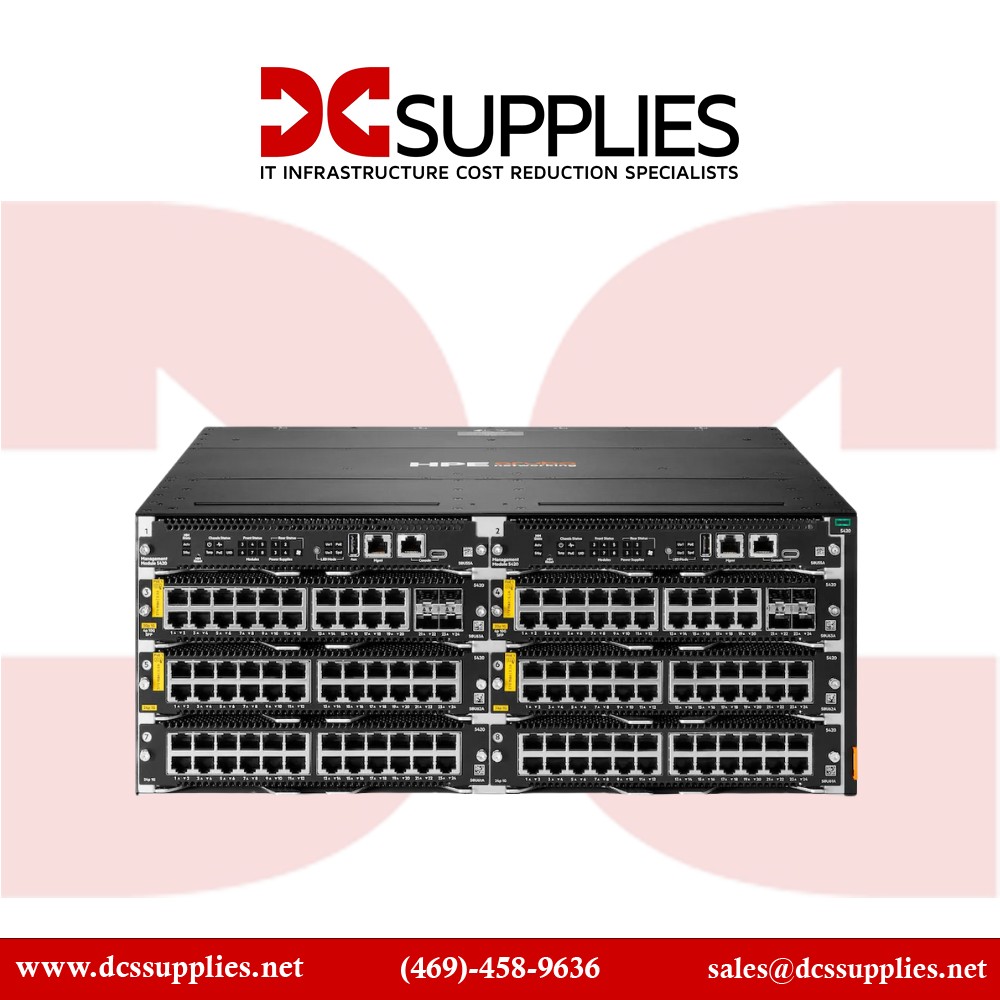

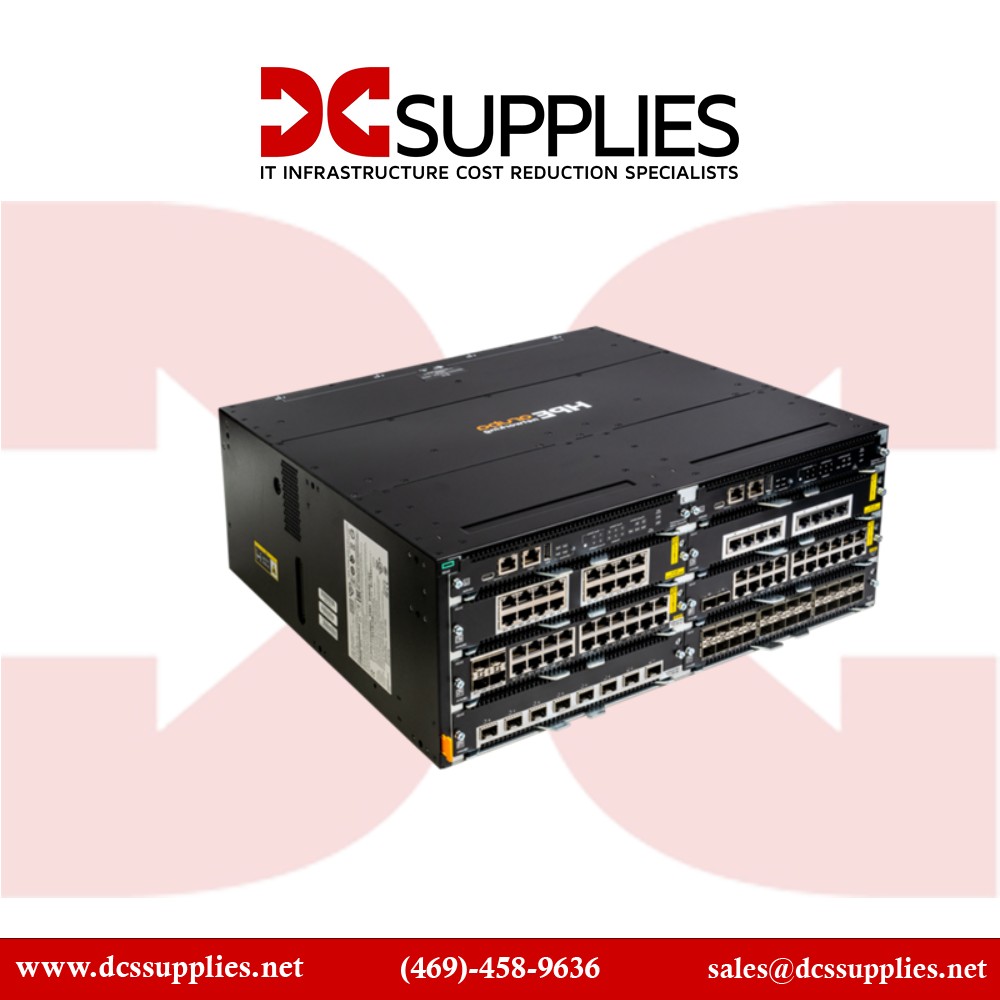

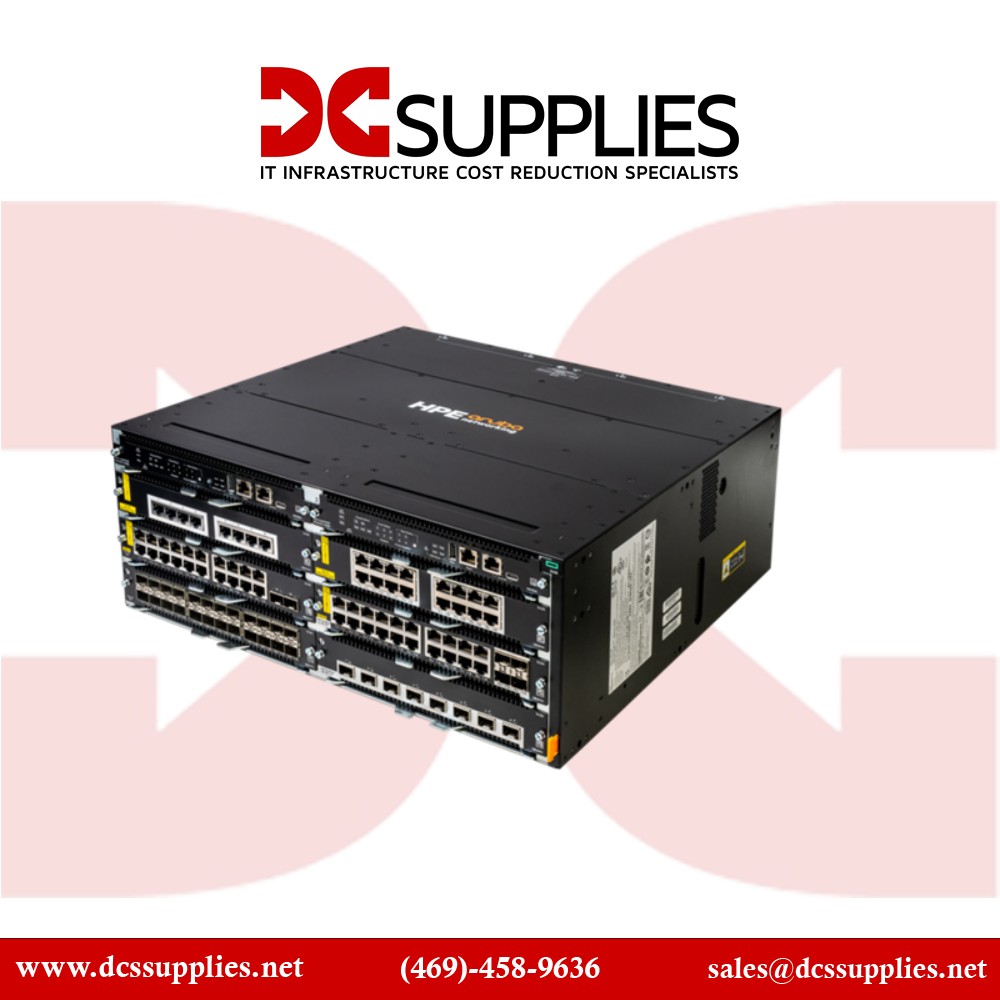

HPE Aruba S0U59A Networking CX 5420 6slot Switch View larger

HPE Aruba S0U59A Networking CX 5420 Ethernet Switch

S0U59A

New

HPE Aruba S0U59A CX 5420 Ethernet Switch Enterprise-grade Layer 3 connectivity
×




Detailed Specifications

HPE Aruba S0U59A Ethernet Switch

Overview :

The HPE Aruba Networking CX 5420 Switch Series is an intelligent, flexible and modular Layer 3 switch chassis created for today's enterprise small and medium campus, branch enterprise networks with built-in MACsec hardware capability, analytics and automation. CX 5420 switch chassis is part of the CX switching portfolio that provides an enterprise-class access layer solution that is easy-to-deploy, simple, secure and resilient. By combining a modern, fully programmable OS with HPE Aruba Networking Network Analytics Engine (NAE), the CX 5420 switch provides industry leading monitoring and troubleshooting capabilities across the network. A powerful Gen7 ASIC architecture delivers performance and extensive feature support with flexible programmability for the tomorrow applications. This advanced modular 4U chassis switch offers up to 960Gbps with low latency, 6 half-width line card slots, VSX Live Upgrade, and HPE Smart Rate 10GbE up to 90W Class-8 PoE with BGP/OSFP/PIM support

Specification :

Ports  6-line card slots up to 160 Gb/s forwarding per slot
Memory and processor  16GB DDR4 SODIMM with ECC, 32GB eMMC Flash memory. 64MB shared packet buffer memory shared dynamically among ports
Latency  2.5 micro sec
Throughput  714 Mpps
Switching capacity  960 Gbps (480 Gbps in + 480 Gbps out)
PoE capability  Industry standard IEEE 802.3bt High Power PoE support provides up to 90W of Class 8 PoE power per port to support the latest APs and IoT devices
Management features  HPE Aruba Networking Central Network Management HPE Aruba Networking Switch Multi-Edit Software Command-line interface SNMP v2c/v3 RMON
Power supply name  Supports 4 field replaceable and hot-swappable power supply slots
Input voltage  100‑127/200‑240VAC
Power consumption  1600W @ 200-240Vac, 1000W @ 100-127Vac
