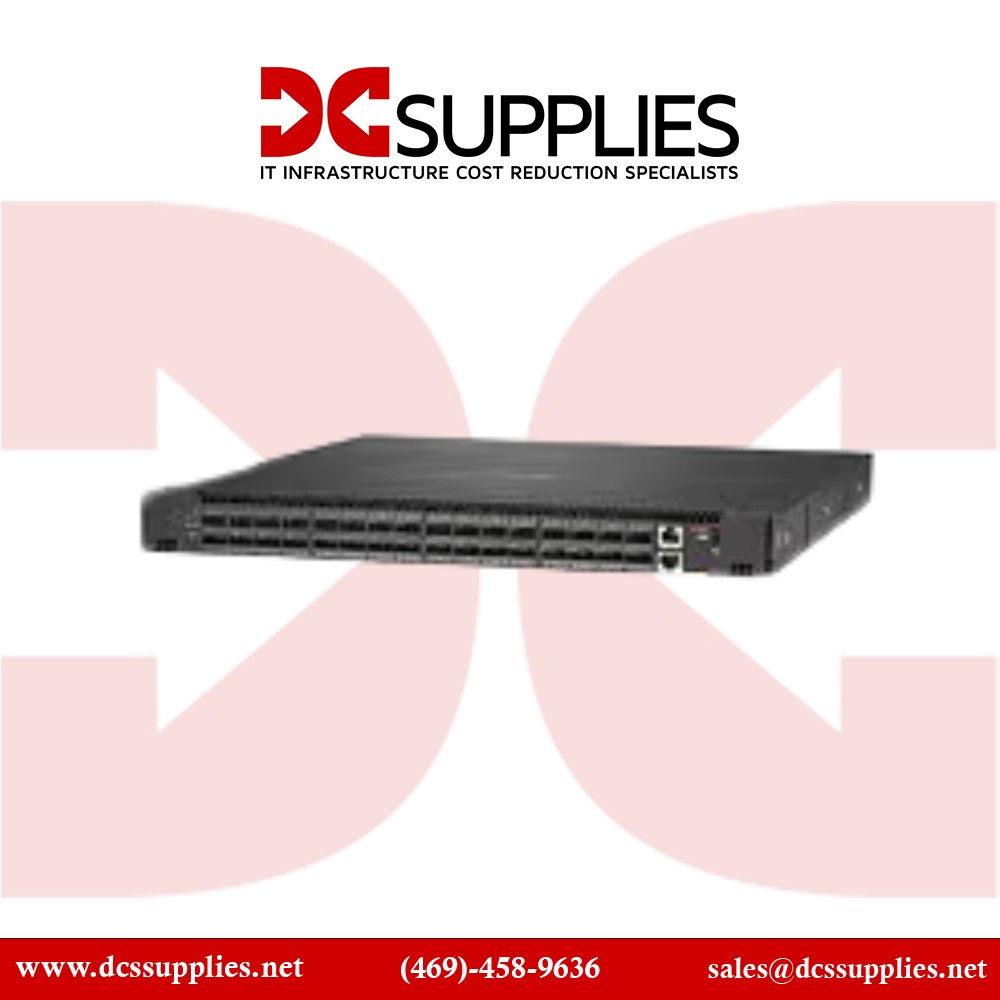

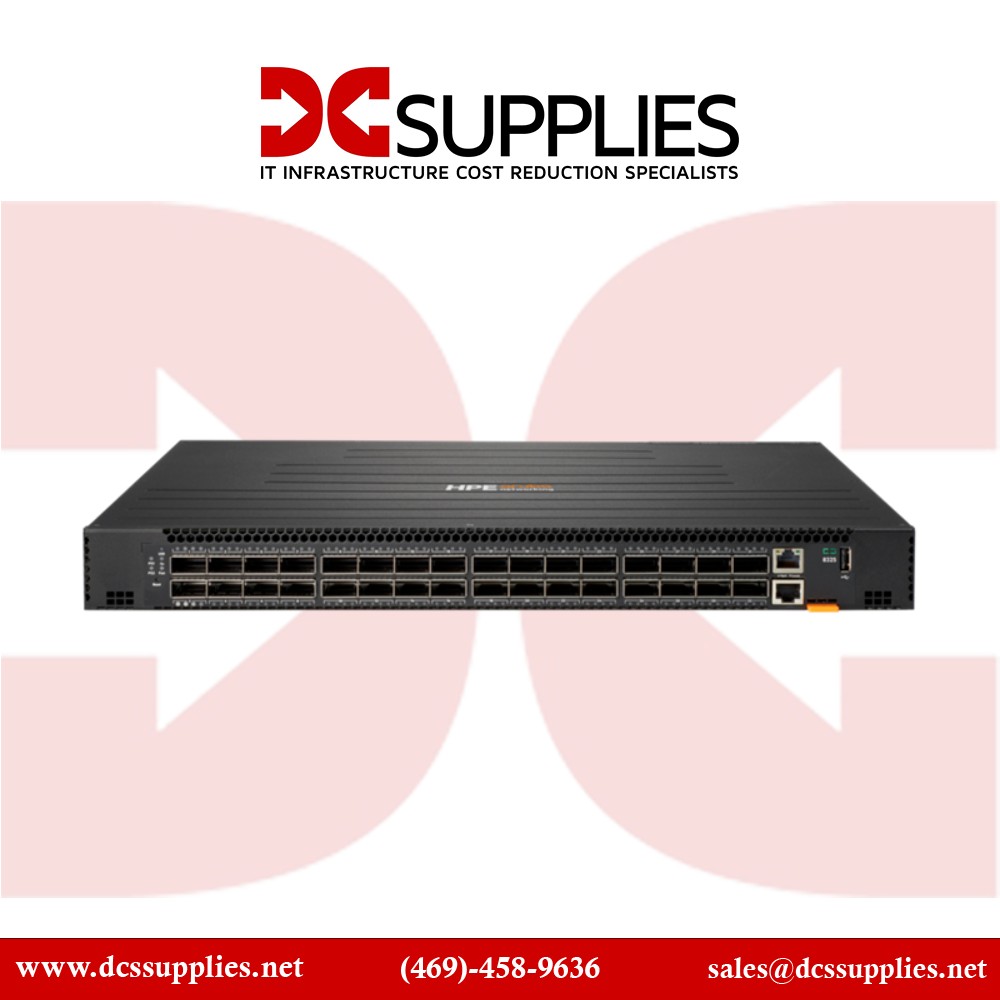

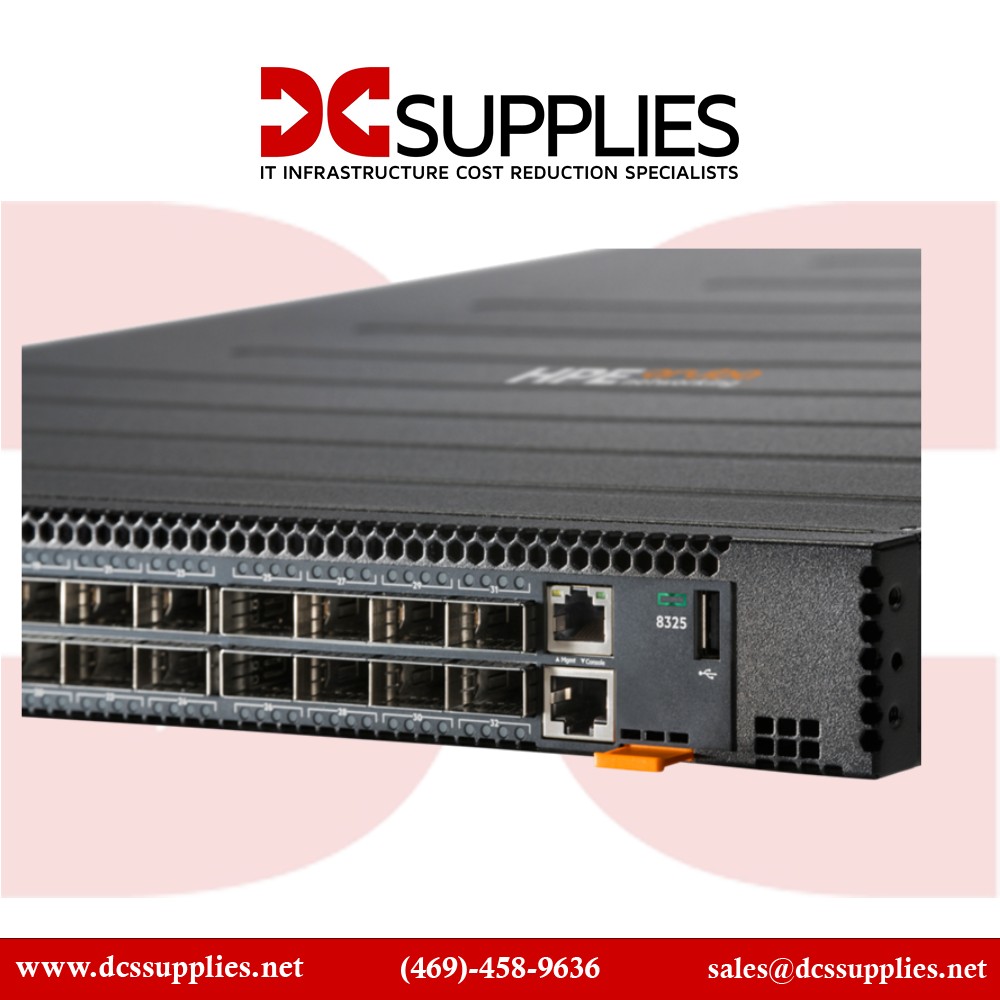

HPE Aruba S1D11A CX 8325-32C Port Switch, 6 Fans, 2 DC PSU View larger

HPE Aruba S1D11A CX 8325-32C Port Switch, 6 Fans, 2 DC PSU

S1D11A

New

HPE Aruba CX 8325-32C Port Switch, 6 Fans, 2 DC PSU
×




Detailed Specifications

HPE Aruba S1D11A Ethernet Switch

Overview:

The HPE Aruba S1D11A Networking CX 8325-32C is a high-performance, scalable switch designed for demanding data center environments. It offers 32 ports that support both 40G and 100G Ethernet, delivering the bandwidth required for high-traffic applications. Featuring a port-to-power airflow design, this switch ensures efficient cooling and optimized performance in dense network setups. With 6 fans and dual DC power supplies, it provides redundancy and reliability for mission-critical applications. Built on Aruba’s CX Switching Architecture, the CX 8325-32C delivers advanced Layer 2/Layer 3 capabilities, network automation, and robust security. This switch is ideal for organizations seeking a reliable, energy-efficient networking solution to handle large-scale data and ensure seamless connectivity.

Table

FeatureSpecification
Power Consumption 618 W (maximum, depending on model)
Input Voltage 100–240 V AC, -36 to -72 V DC
Ports (48) 25G SFP28 ports and (8) 100G QSFP28 ports, or (32) 100G QSFP28 ports (depending on model)
Switch Fabric Speed 6.4 Tbps (maximum, depending on model)
Switching Capacity 6.4 Tbps (switching), 2,000 Mpps (forwarding)
Stacking Capabilities Supports core, aggregation, and ToR/EoR data center requirements
Throughput 2,000 Mpps (maximum, depending on model)
Memory and Processor 2.2 GHz CPU, 16 GB RAM, 64 GB SSD, 8 GB Flash, 32 MB Packet Buffer
Power Supply Field-replaceable, hot-swappable; supports up to 2 power supplies
Management Features CLI, SNMP v2c/v3, sFlow, RMON, PTP Class C (G.8275.1/.2)
