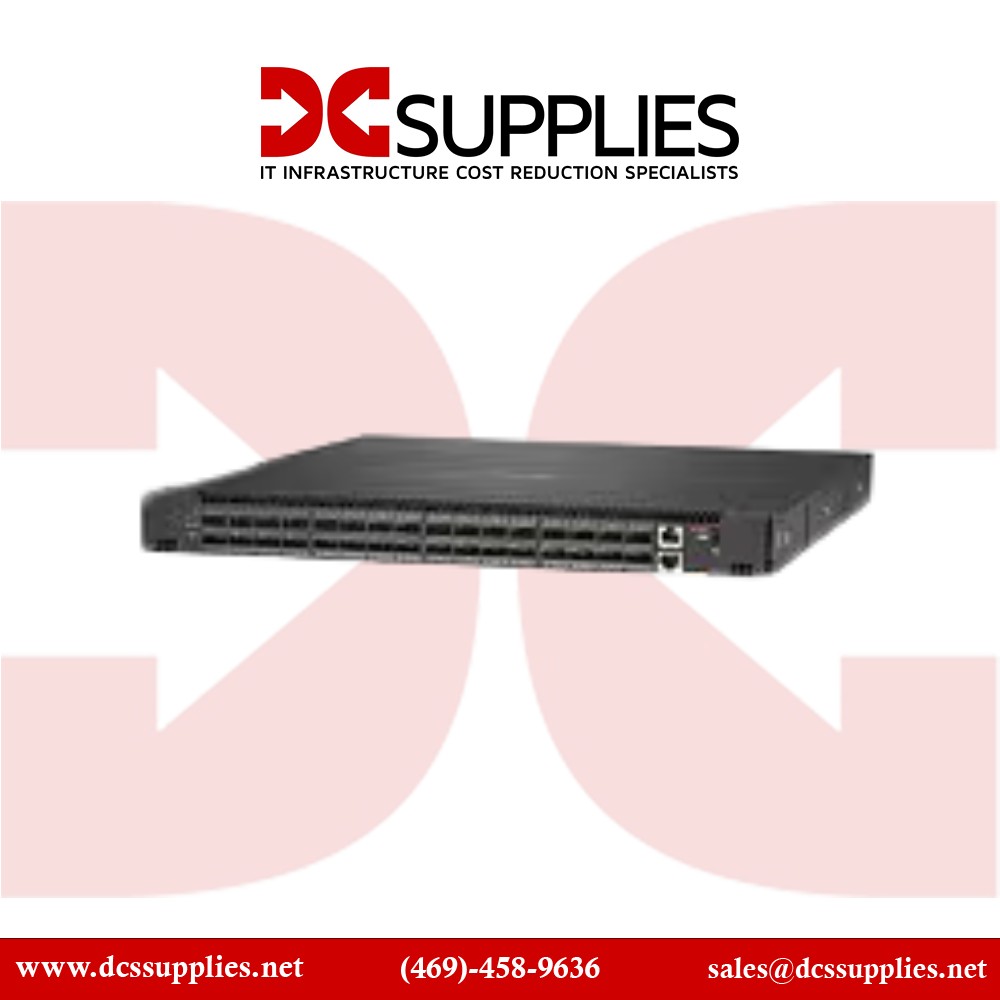

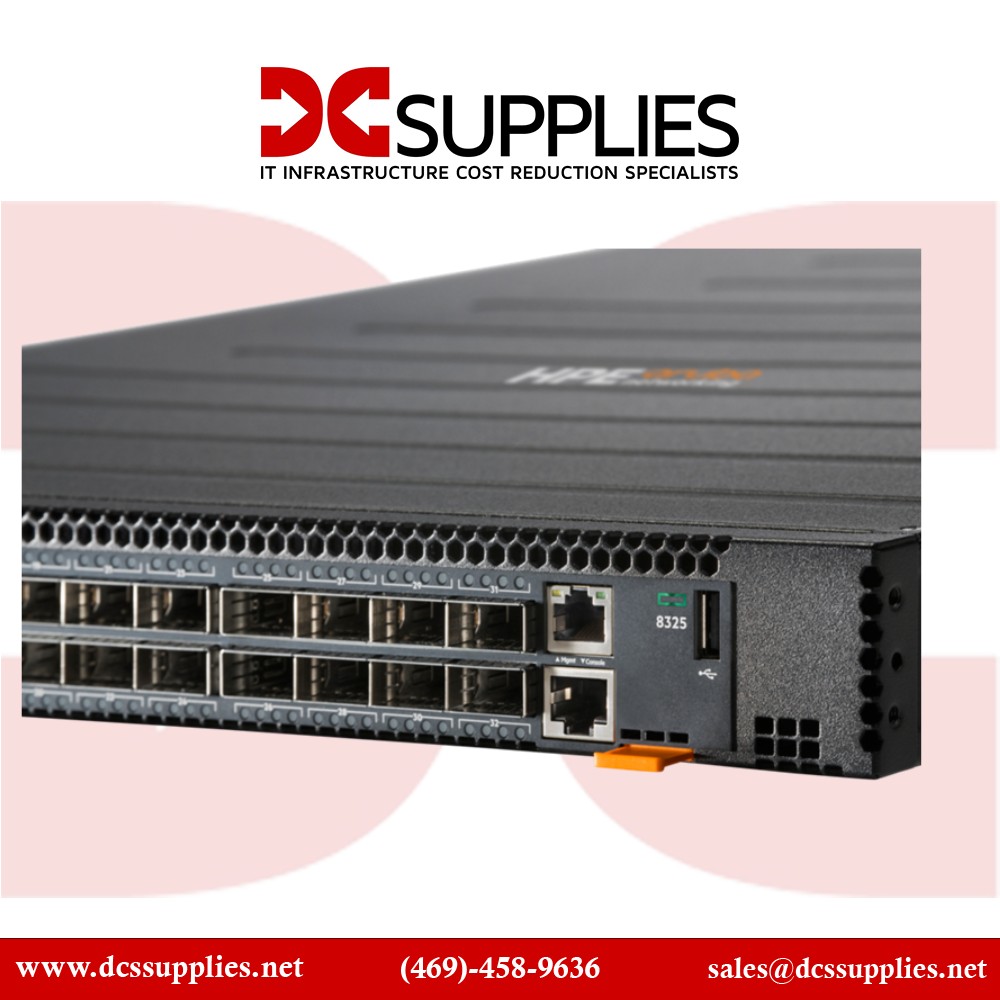

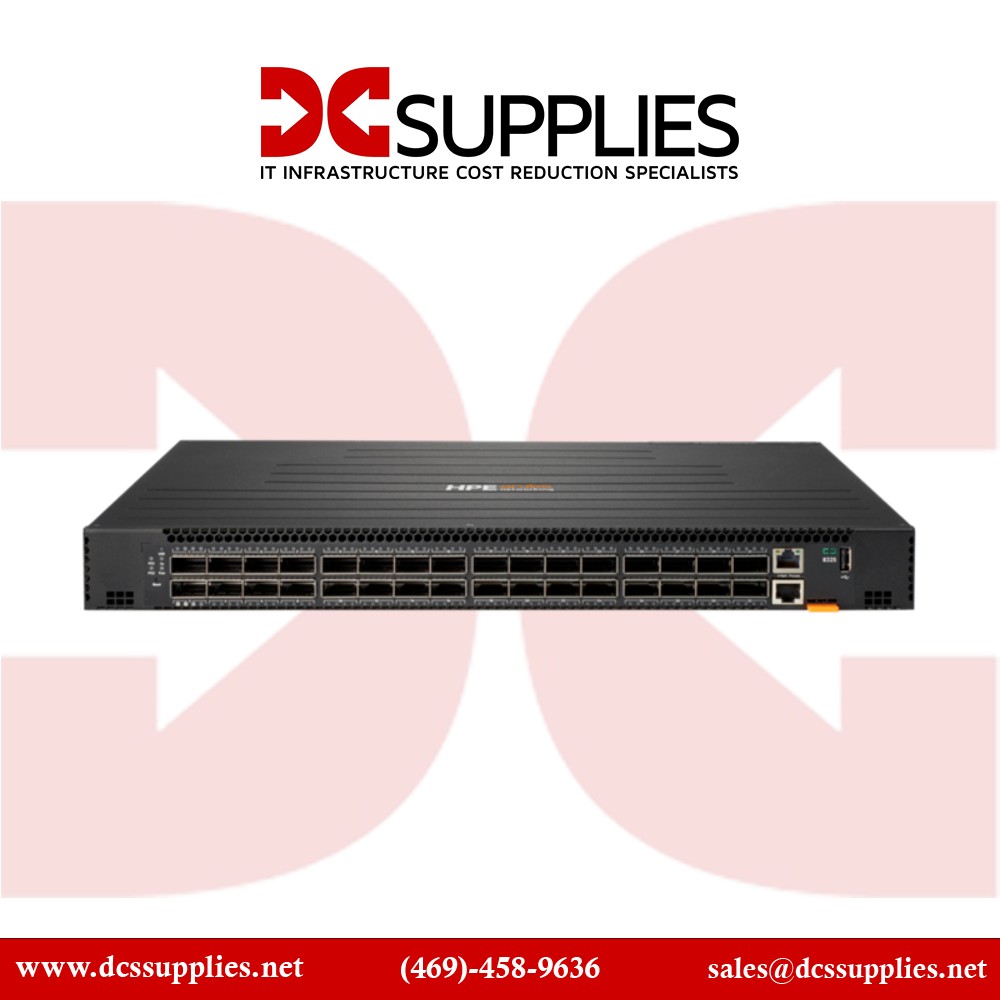

HPE Aruba S1D07A CX 9300 Ethernet Switch 34 Ports View larger

HPE Aruba S1D07A CX 9300 Ethernet Switch 34 Ports

S1D07A

New

HPE Aruba S1D07A CX 9300 Ethernet Switch 34 Port High Performance Switch
×




Detailed Specifications

HPE Aruba S1D07A Ethernet Switch

Overview :

The Aruba CX 9300 Switch Series is a next-generation 25.6Tbps, 1U fixed configuration switch supporting 32-ports of 100GbE, 200GbE or 400GbE. The switch is an ideal solution for flexible, cost-effective, high-density 400GbE networking for server, storage, and intra-fabric connectivity. This solution helps protect enterprises investment as they transition server farms from 10GbE and 10GbE/25GbE to 100GbE/400GbE EVPN-VXLAN leaf and/or spine configurations at reduced power and a smaller footprint.  The Aruba CX 9300 Switch Series supports large Data Center PODS of up to 6,000 x 25GbE servers or up to 2,000 x 100GbE servers. This is an 8x jump in scaling/density over current Aruba CX 8325-32C which scales to 700 x 25GbE servers. Aruba CX 9300 Switch Series can be used as a 100GbE Leaf or 100GbE/400GbE Spine switch (128 x 100GbE or 64 x 200GbE ports using breakouts).

The HPE Aruba Networking CX 9300 Switch Series provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity. The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current HPE Aruba Networking CX 8325-32C, which scales to 700 x 25G servers.
  • 25.6Tbps, 1U fixed configuration supporting 32 ports of 100/400GbE. Designed to provide flexible, cost-effective, high-density 10-400GbE for servers, storage, and intra-fabric connectivity.
  • Protects enterprises’ investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint.
  • Support large data center pods connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
  • Support large data center pods and increased density by connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
  • HPE Aruba Networking Aruba Fabric Composer greatly simplifies the automation, orchestration, and end-end visibility of the network fabric underlay and virtualized overlay.
  • Introducing new HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front and Front-to-Back Bundles along with new compatible transceivers and power supply options.

Specifications :

Product Name Aruba 9300-32D PRT2PWR Software Bundle HPE Us EN
Manufacturer Part Number S1D07A
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology 400 Gigabit Ethernet, 10 Gigabit Ethernet
Product Family CX 9300
Media Type Supported Optical Fiber
Total Number of Expansion Slots 34.0
Redundant Power Supply Supported Yes
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Expansion Slot Type QSFP-DD, SFP+
Form Factor Rack-mountable
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Compatible Rack Unit 1U
Number of SFP+ Slots 2
Modular Yes
Uplink Port Yes
Port / Expansion Slot Details 32 x 400 Gigabit Ethernet Expansion Slot, 2 x 10 Gigabit Ethernet Expansion Slot
Product Series CX 9300
Network Technology 10GBase-X
Input Voltage 120 V AC, 230 V AC
Frequency 50 Hz, 60 Hz
