HPE Aruba S0F82A CX 9300 Ethernet Switch 32 port View larger

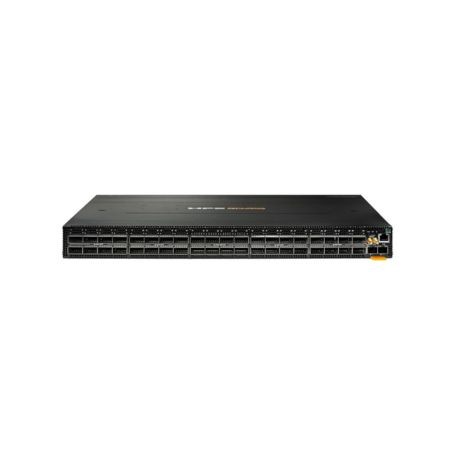

HPE Aruba S0F82A CX 9300 Ethernet Switch 32 port

S0F82A

New

HPE Aruba S0F82A CX 9300 Ethernet Switch 32 Port High Capacity Switch
×




Detailed Specifications

HPE Aruba S0F82A Ethernet Switch

Overview :

The HPE Aruba Networking CX 9300SwitchSeries provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity. The HPE Aruba Networking CX 9300SwitchSeries protects enterprises' investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current HPE Aruba Networking CX 8325-32C, which scales to 700 x 25G servers.

The HPE Aruba Networking CX 9300 Switch Series provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity. The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current HPE Aruba Networking CX 8325-32C, which scales to 700 x 25G servers.

Specifications :

Product Name HPE Anw 9300S 32C 8D FB 6FS AC Bundle Us EN PL-L1
Manufacturer Part Number S0F82A
Product Type Layer 3 Switch
Manageable Yes
Ethernet Technology 100 Gigabit Ethernet, 400 Gigabit Ethernet
Product Family CX 9300
Media Type Supported Optical Fiber
Total Number of Expansion Slots 32
Redundant Power Supply Supported Yes
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS) 6
Expansion Slot Type QSFP28, QSFP28-DD
Form Factor Rack-mountable
Power Consumption 600 W
Power Source Power Supply
Layer Supported 3
Compatible Rack Unit 1U
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Data Transfer Rate 50 GB/s
Product Color Black
Height 1.7"
Width 23.2"
Depth 17.3"
Product Series CX 9300
Features Hot-swappable
Network Technology 100GBase-X, 40GBase-X, 10GBase-X, 20GBase-X
Input Voltage 120 V AC, 230 V AC
Color Family Black
High Availability Supported Yes
