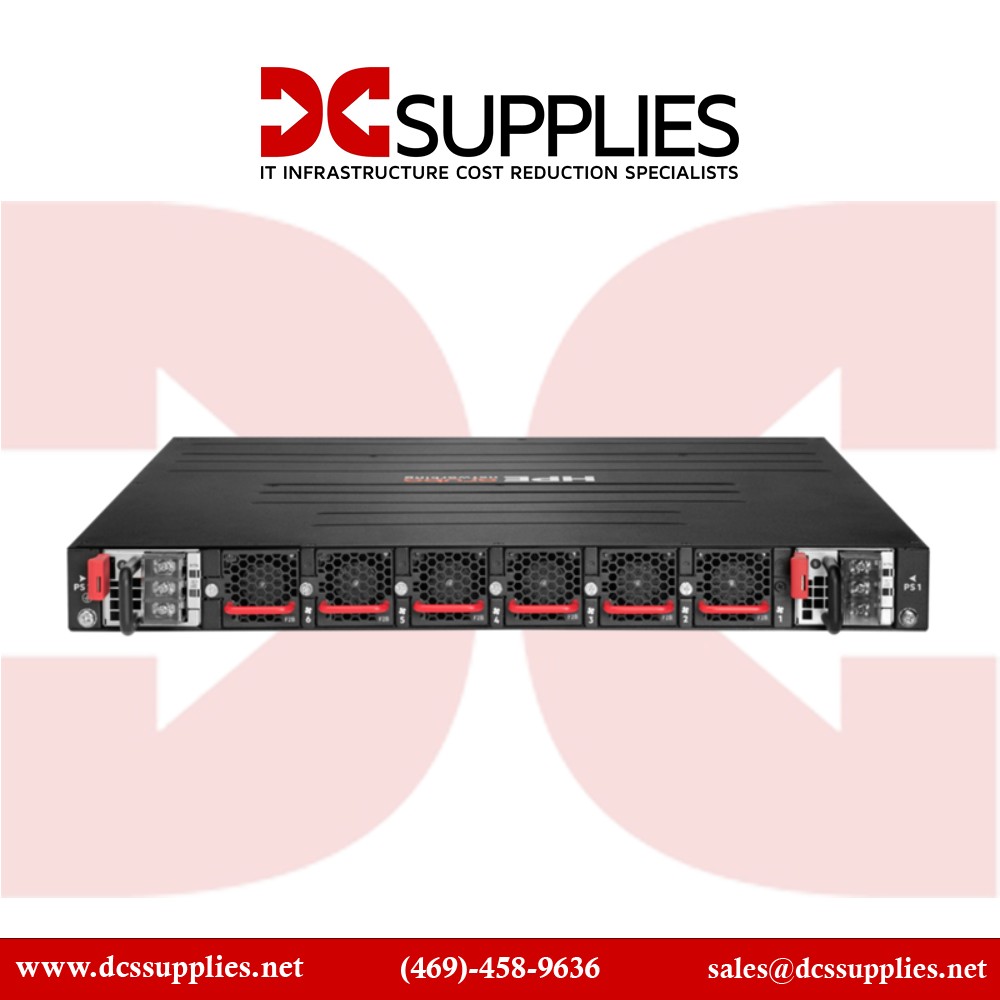

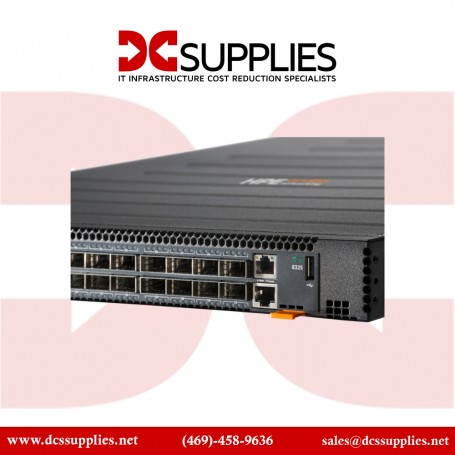

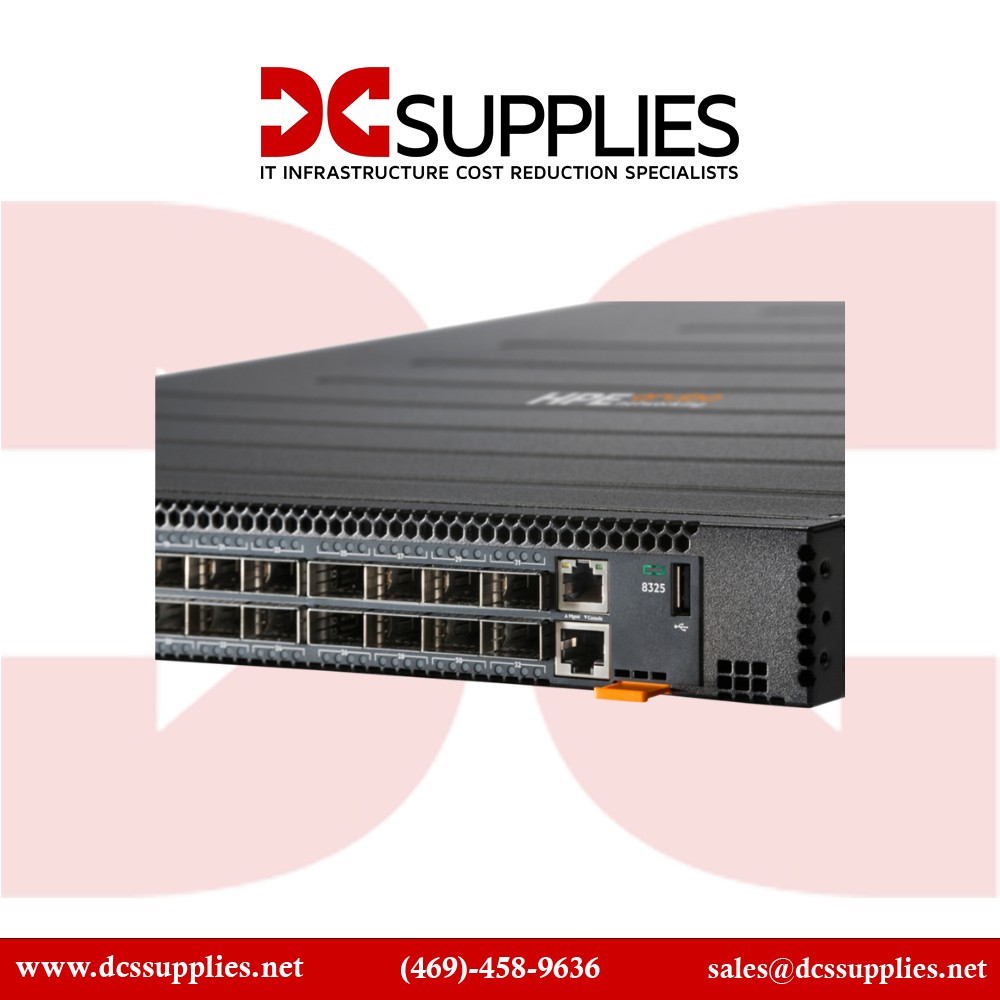

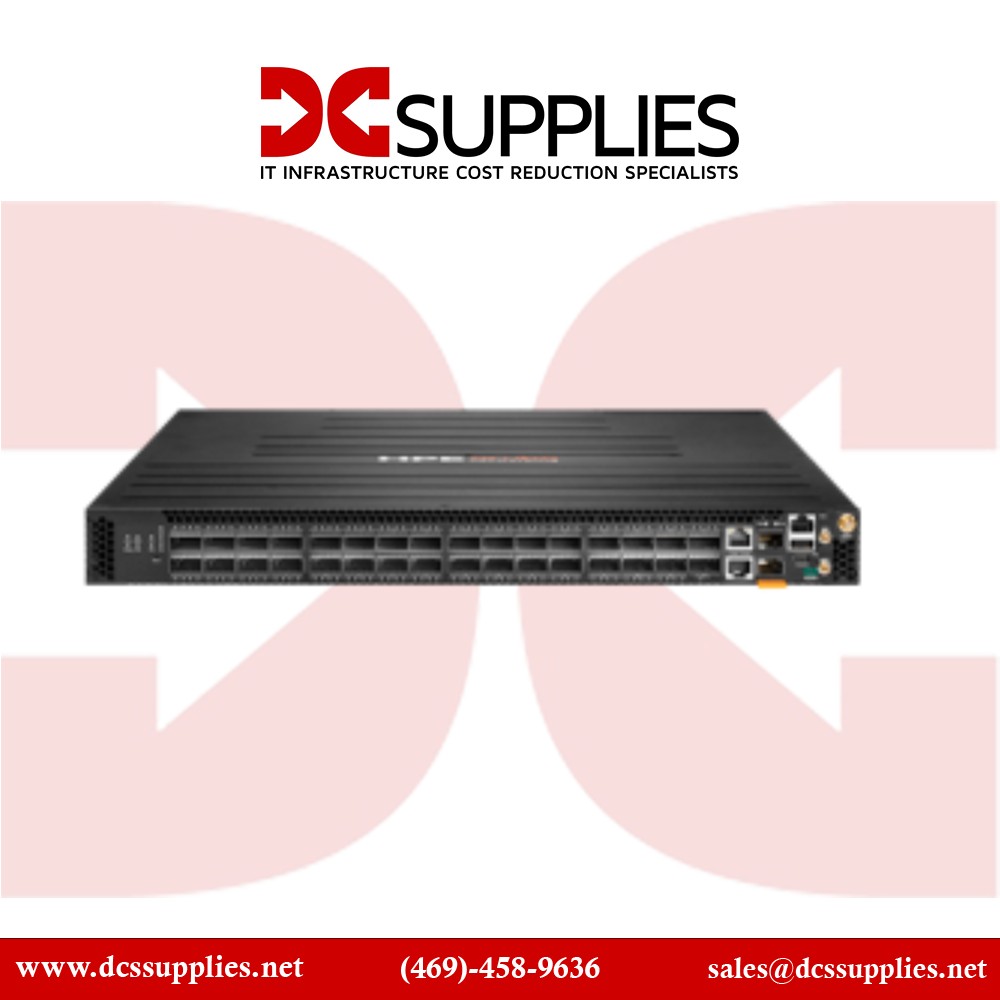

HPE Aruba S0G07A CX 8325P 32-Port 40G/100G Switch, Front-to-Back, 6xFan View larger

HPE Aruba S0G07A CX 8325P 32-Port 40G/100G Switch, Front-to-Back, 6xFan

S0G07A

New

HPE 32-port of 40/100Gbps switch with 6 fans and 2 DC power supplies installed
×




Detailed Specifications

HPE Aruba S0G07A CX 8325P 32-Port 40G/100G Switch, Front-to-Back, 6xFan

Overview:

The HPE Aruba S0G07A Networking CX 8325P is a high-performance switch designed to meet the needs of modern data centers and high-traffic enterprise networks. It offers 32 QSFP28 ports, supporting both 40G and 100G Ethernet speeds, providing the bandwidth required for data-intensive applications. The front-to-back airflow design ensures optimal cooling in dense environments, while the 6 fans and dual DC power supplies offer redundancy and reliability for mission-critical workloads. Compliant with TAA regulations, this switch is ideal for organizations that require high availability, security, and scalability in their network infrastructure. Built on Aruba’s CX Switching Architecture, it provides advanced Layer 2/Layer 3 features, network automation, and robust security. This solution is perfect for businesses looking for an efficient, scalable, and future-proof networking solution.

Specifications :

FeatureSpecification
Differentiator Supports 1G, 10G, 25G, 40G, and 100G computing deployments. Supports PTP, Telco Class C, Synchronous Ethernet, and GNSS for Telco Boundary Clock
Power Consumption Max: 558 W, 1907 BTU/hr; Idle: 135 W, 462 BTU/hr
Input Voltage -36 to -72 V DC
Ports (32) 100G QSFP28 ports
Switch Fabric Speed 6.4 Tbps
Switching Capacity 6.4 Tbps (switching), 2,000 Mpps (forwarding)
Stacking Capabilities Supports core, aggregation, and ToR/EoR data center requirements
Throughput 2,000 Mpps (maximum)
Memory and Processor 2.2 GHz CPU, 16 GB RAM, 64 GB SSD, 8 GB Flash, 32 MB Packet Buffer
Power Supply Field-replaceable, hot-swappable; supports up to 2 power supplies
Management Features CLI, SNMP v2c/v3, sFlow, RMON, PTP Class C (G.8275.1/.2)
