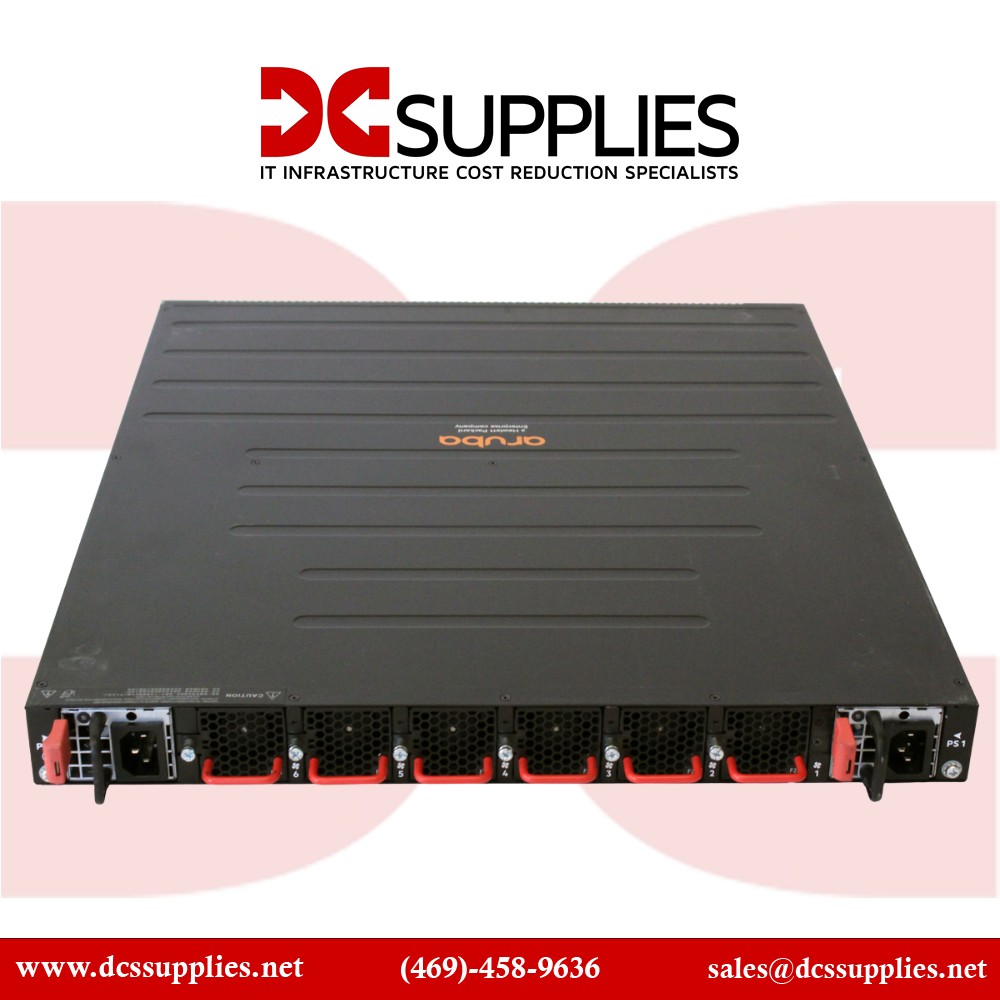

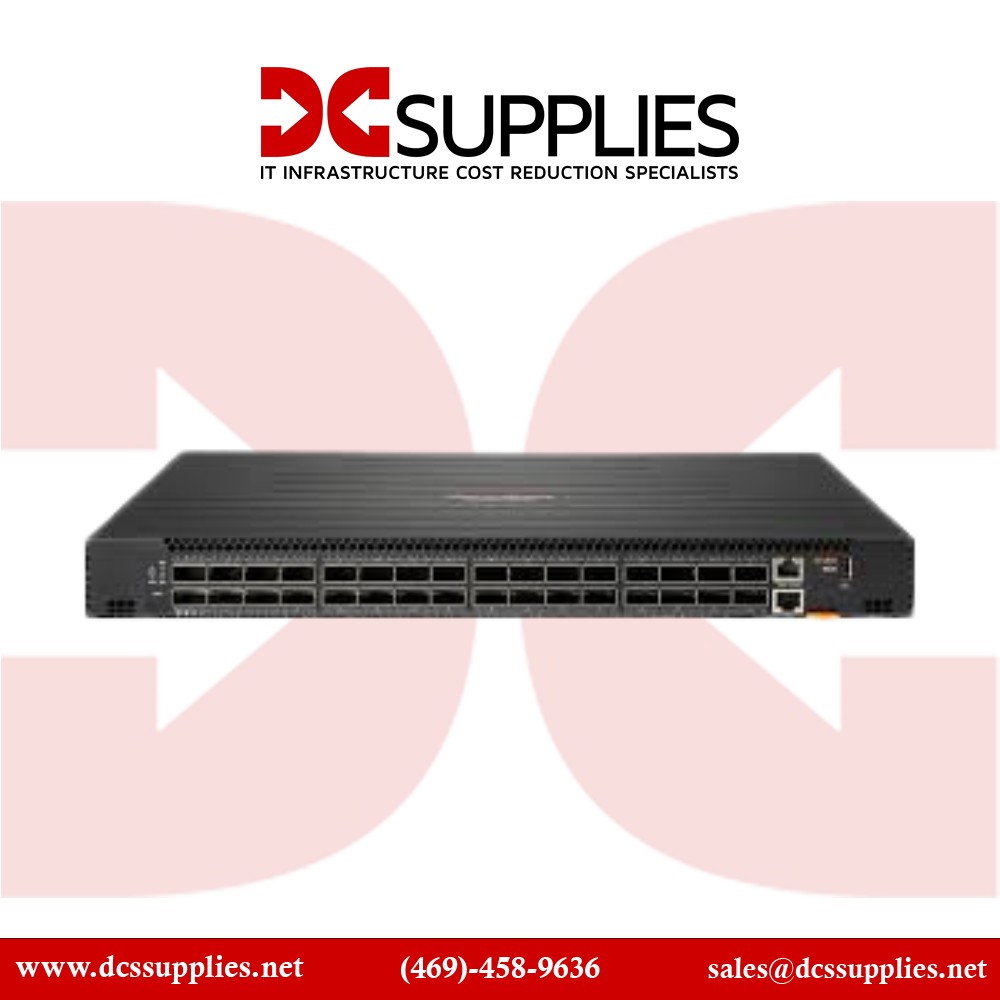

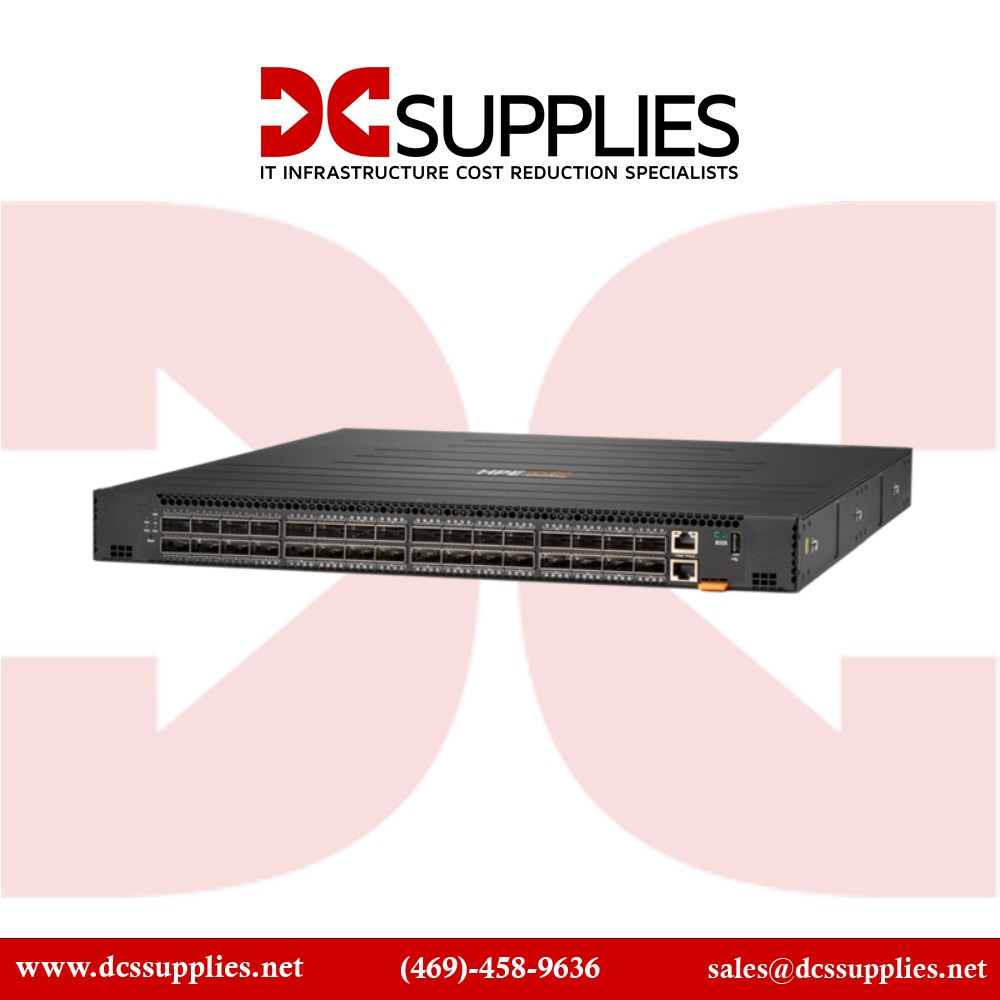

HPE Aruba JL636A CX 8325-32C 32-Port 100G QSFP+/QSFP28 Switch View larger

HPE Aruba JL636A CX 8325-32C 32-Port 100G QSFP+/QSFP28 Switch

JL636A

New

HPE Aruba CX 8325-32C 32-Port 100G QSFP+/QSFP28 Switch
×




Detailed Specifications

HPE Aruba JL636A Ethernet Switch

Overview:

The HPE Aruba JL636A Networking CX 8325-32C is a high-performance switch built to meet the demanding requirements of modern data centers and large-scale enterprise networks. Equipped with 32 ports, the switch supports both QSFP+ and QSFP28 modules, providing flexible 100G Ethernet connectivity to scale as network traffic grows. This switch is designed for high availability and reliability, with features that ensure optimal performance in data-intensive environments. Built on Aruba's CX Switching Architecture, it delivers advanced Layer 2/Layer 3 capabilities, automation, and robust security for efficient and secure network management. The CX 8325-32C is ideal for businesses seeking a powerful, scalable solution to future-proof their network and support high-capacity workloads with ease.

Specifications :

FeatureSpecification
Differentiator 32-port QSFP28 (40/100 GbE) switch, designed for high-performance networking.
Power Consumption Max: 618W (depending on model)
Input Voltage 100 to 240 VAC, -36 to -72 VDC
Ports (32) 100G QSFP28 ports
Switch Fabric Speed 6.4 Tbps (maximum depending on model)
Switching Capacity 6.4 Tbps for switching, 2,000 Mpps for forwarding
Stacking Capabilities Supports next-generation core and aggregation layers; ideal for Top of Rack (ToR) and End of Row (EoR) in data centers
Throughput 2,000 Mpps (maximum depending on model)
Memory and Processor CPU: 2.2 GHz, 16 GB RAM, 64 GB SSD, 8 GB Flash, 32 MB Packet Buffer
Power Supply Field-replaceable, hot-swappable, up to 2 power supplies
Management Features Industry-standard CLI with hierarchical structure, SNMP v2c/v3, sFlow (RFC 3176), Remote Monitoring (RMON), Precision Time Protocol (PTP Class C (G.8275.1/.2))
