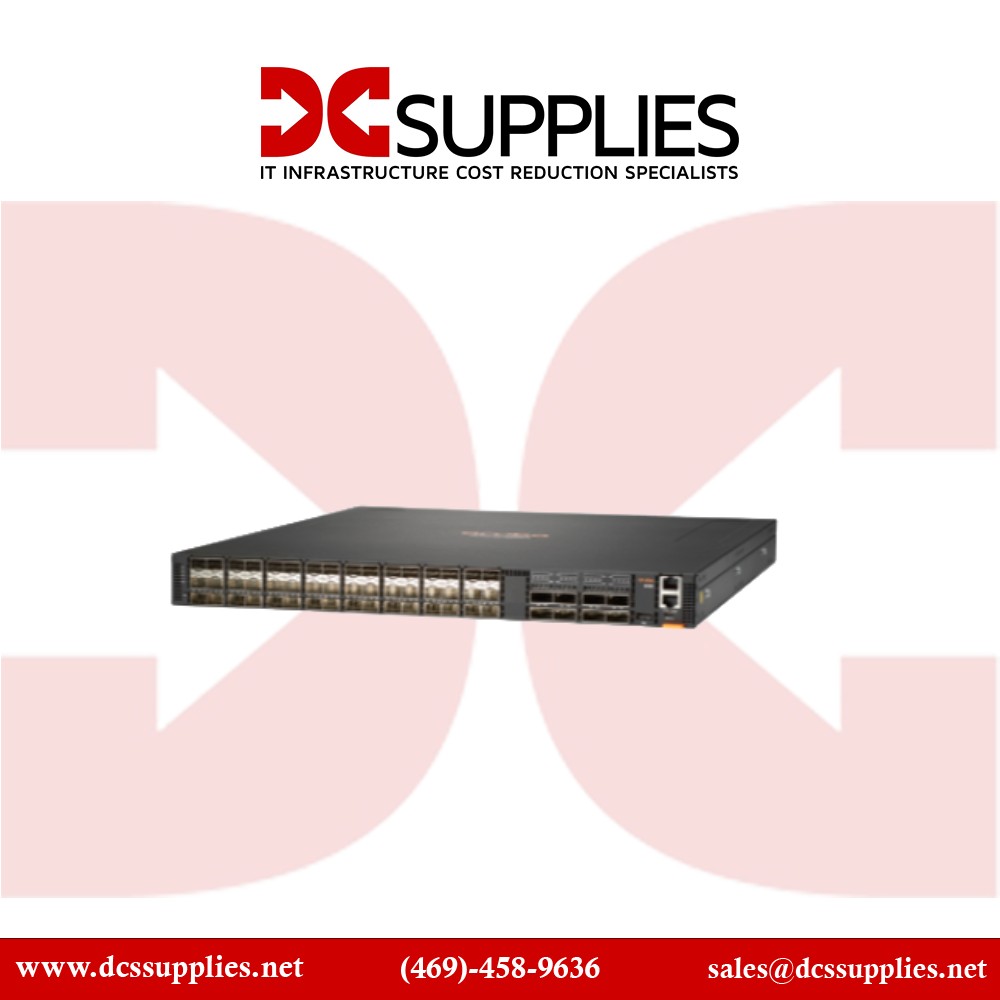

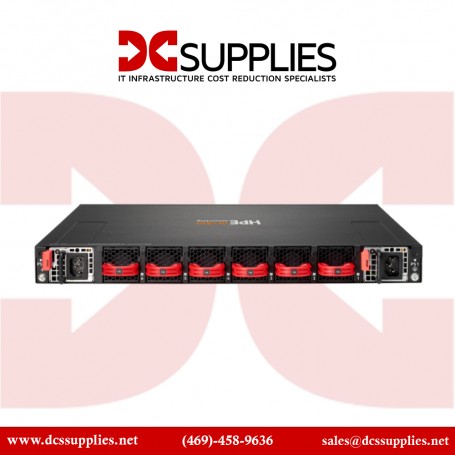

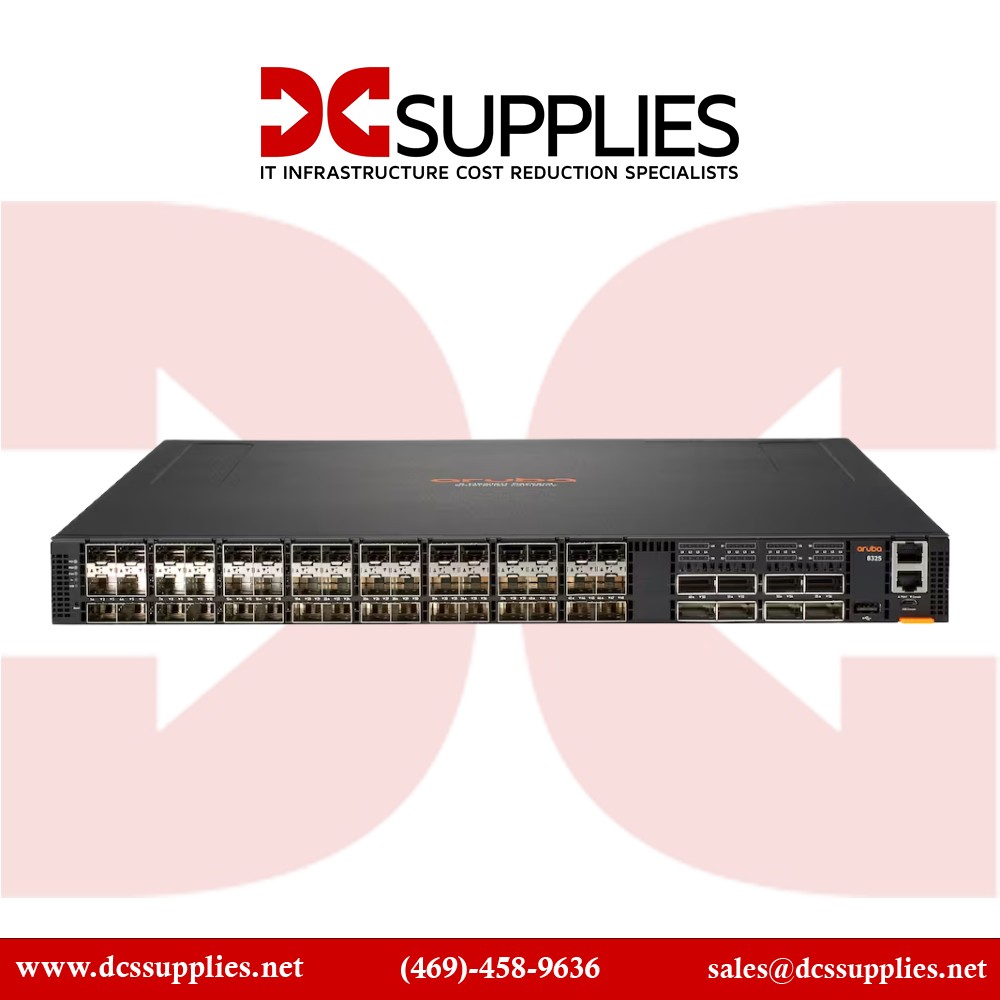

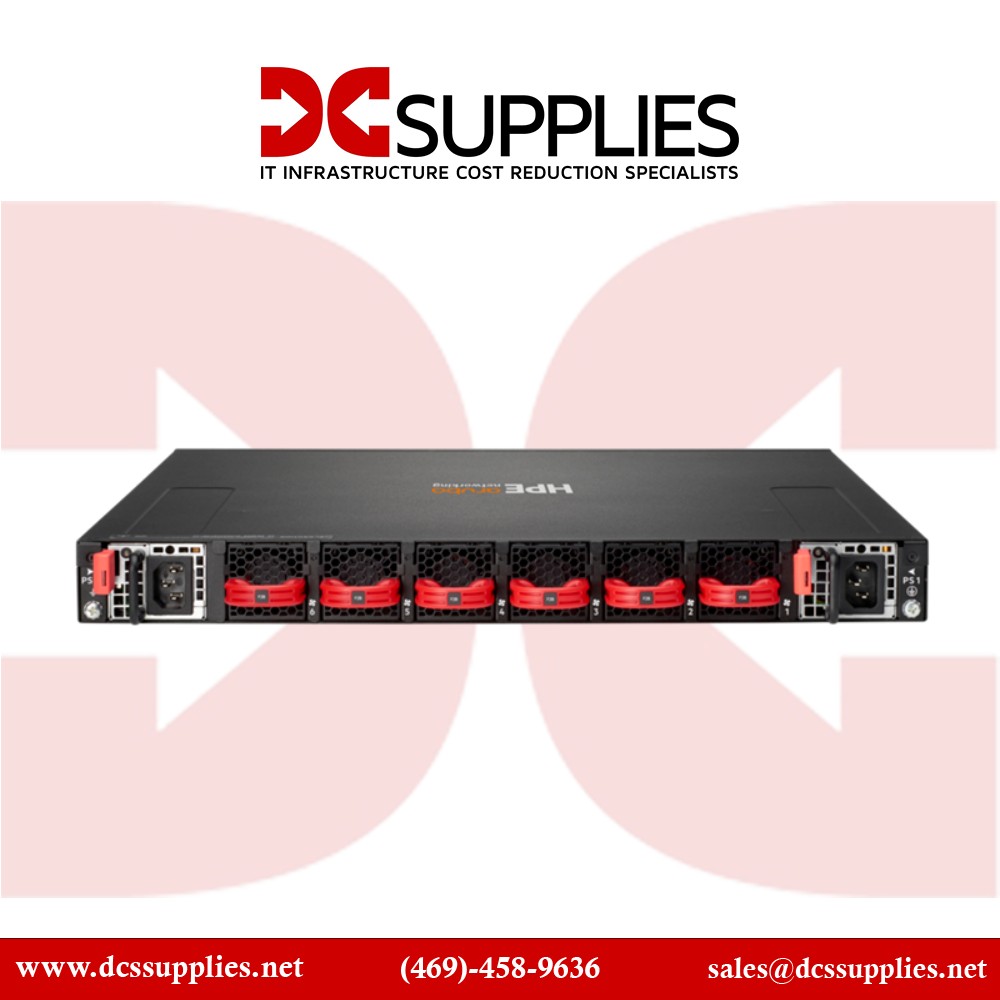

HPE Aruba JL635A CX 8325-48Y8C 48port 25G & 8x 100G Switch View larger

HPE Aruba JL635A CX 8325-48Y8C 48port 25G & 8x 100G Switch

JL635A

New

HPE Aruba CX 8325-48Y8C 48port 25G & 8x 100G Switch
×




Detailed Specifications

HPE Aruba JL635A Ethernet Switch

Overview:

The HPE Aruba JL635A Networking CX 8325-48Y8C is a high-performance, versatile switch designed to meet the needs of modern data center and enterprise networks. It features 48 ports that support 25G SFP, SFP+, and SFP28 modules, providing flexible connectivity options for high-density environments. Additionally, it includes 8 ports for 100G QSFP+ and QSFP28 modules, offering exceptional bandwidth for demanding applications. Built on Aruba’s CX Switching Architecture, the CX 8325-48Y8C delivers advanced Layer 2/Layer 3 features, automation, and robust security for seamless network management. This switch is ideal for organizations looking for scalability, reliability, and performance, supporting both current and future networking needs with ease. The CX 8325-48Y8C is perfect for businesses that need high-capacity, flexible solutions to optimize data flow and ensure a resilient network infrastructure.

Specifications :

FeatureSpecification
Differentiator 48-port SFP28 (1/10/25 GbE) and 8-port QSFP28 (40/100 GbE) switch
Power Consumption Max: 618W (depending on model)
Input Voltage 100 to 240 VAC, -36 to -72 VDC
Ports (48) 25G SFP28 ports and (8) 100G QSFP28 ports
Switch Fabric Speed 6.4 Tbps (maximum depending on model)
Switching Capacity 6.4 Tbps for switching, 2,000 Mpps for forwarding
Stacking Capabilities Designed for next-generation core and aggregation layers, and for ToR/EoR in data centers
Throughput 2,000 Mpps (maximum depending on model)
Memory and Processor CPU: 2.2 GHz, 16 GB RAM, 64 GB SSD, 8 GB Flash, 32 MB Packet Buffer
Power Supply Field-replaceable, hot-swappable, up to 2 power supplies
Management Features Industry-standard CLI, SNMP v2c/v3, sFlow (RFC 3176), Remote Monitoring (RMON), Precision Time Protocol (PTP Class C (G.8275.1/.2))
