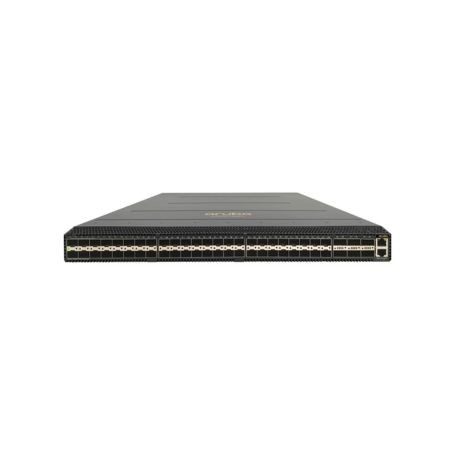

HPE Aruba R8S96A CX 10000 Ethernet Switch 48 Port View larger

HPE Aruba R8S96A CX 10000 Ethernet Switch 48 Port

R8S96A

New

HPE Aruba R8S96A CX 10000 Ethernet Switch 48 Port High Performance Switch
×




Detailed Specifications

HPE Aruba R8S96A Ethernet Switch

Overview :

HPE Aruba Networking CX 10000 Switch Series delivers a flexible and innovative approach to address the security performance, agility, and scalability demands of both traditional enterprise data centers and emerging distributed, edge and co-located centers of data.  The CX 10000 series is a category of switches that combines the best-of-breed network operating system, HPE Aruba Networking CX Switch Operating System (AOS-CX), for data center, campus, and edge in addition to the fully programmable AMD Pensando DPU. This allows the CX 10000 switches to deliver software-defined services inline,  at scale, with wire-rate performance and orders of magnitude scale and performance improvements over traditional L2/L3 switches at a fraction of their TCO.  This allows the flexibility to enable service delivery, when deployed as access, leaf top of rack (ToR), or end of row (EoR) in a data center, and potentially in the aggregation layer in campus or edge data center designs.
  • he CX 10000 switches are integrated with Fabric Composer which provides unified network and security management, automated switch and network configurations, and unified security policy and distributed firewalls across the entire switching fabric.
  • The CX 10000 switches integrate through Rest API, provides flow data to security and network performance tools including Advanced Security ML (XDR), Application Dependency Mapping (ADM), Network Performance Management (NPM), SIEM/SOAR, firewall compliance rules, and identity group mapping tools.
  • The switch is based on the CX Operating System, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks.

Specifications :

Product Name Aruba CX 10000-48Y6C Switch PL-Fa
Manufacturer Part Number R8S96A
Product Type Ethernet Switch
Ethernet Technology 25 Gigabit Ethernet, 100 Gigabit Ethernet
Product Family CX 10000
Media Type Supported Optical Fiber
Total Number of Expansion Slots 48
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Expansion Slot Type SFP28, QSFP28
Form Factor Rack-mountable
Layer Supported 2
Environmentally Friendly Yes
Modular Yes
Port / Expansion Slot Details 48 x 25 Gigabit Ethernet Expansion Slot, 6 x 100 Gigabit Ethernet Expansion Slot
Product Color Black
Height 1.7"
Width 17.3"
Depth 20.1"
Product Series CX 10000
Product Model 10000-48Y6C
Network Technology 25GBase-X, 100GBase-X
Color Family Black
