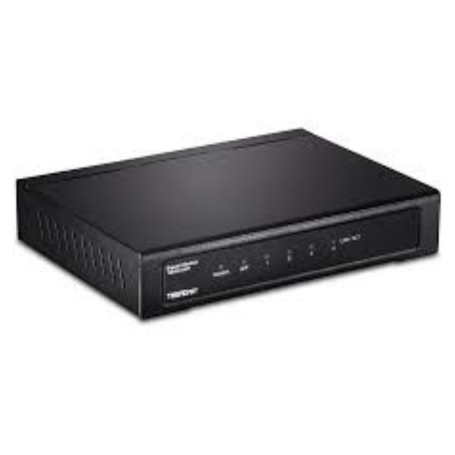

TRENDnet TEG-S51SFP 4-Port Gigabit Switch with SFP Slot (Metal) View larger

TRENDnet TEG-S51SFP 4-Port Gigabit Switch with SFP Slot (Metal)

TEG-S51SFP

New

TRENDnet 4-Port Gigabit Switch with SFP Slot (Metal)
×




Detailed Specifications

TRENDnet TEG-S51SFP Gigabit Switch with SFP Slot (Metal)

Overview :

The 5-Port Gigabit Switch with SFP Slot, model TEG-S51SFP, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 12Gbps with full-duplex mode. The gigabit SFP port provides capability for long distance network applications allowing for seamless integration into an existing SMB network.

DEVICE INTERFACE: 5 x Gigabit Ethernet Ports; 1 x Gigabit SFP slot; LED indicators; Wall Mountable

SWITCHING CAPACITY: This fanless unmanaged desktop switch offers a total switching capacity of 12Gbps that allows data

traffic to flow smoothly, reducing traffic bottlenecks.

LONG DISTANCE NETWORKING: The gigabit SFP slot allows for optional long distance connectivity. (SFP transceiver and

fiber not included)

JUMBO FRAME: Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance with this 5 port network switch

Specifications :

Product Name 4-Port Gigabit Switch with SFP Slot (Metal)
Product Type Ethernet Switch
Ethernet Technology Gigabit Ethernet
Media Type Supported Optical Fiber

Twisted Pair
Total Number of Network Ports 5
Total Number of Expansion Slots 1
Expansion Slot Type SFP
Form Factor Wall Mountable
Power Consumption 2.94 W
Power Source Power Adapter
Maximum Data Transfer Rate 128 MB/s
Number of SFP Slots 1
Port / Expansion Slot Details 5 x Gigabit Ethernet Network

1 x Gigabit SFP Expansion Slot
Networking Standards IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3z
Product Material Metal
Country of Origin Taiwan
Height 1"
Width 3.4"
Depth 7.6"
Features Fanless
Product Model TEG-S51SFP
Network Technology 1000Base-T

1000Base-X
Input Voltage 120 V AC

230 V AC
Package Contents
  • TEG-S51SFP Ethernet Switch
  • Quick Installation Guide
  • Power Adapter (12V DC, 1A)
Limited Warranty Lifetime
NDAA Compliant Yes
Frequency 50 Hz

60 Hz
MTBF 1018523 Hour
Stock Details
Manufacturer TRENDnet
Manuf Part# TEG-S51SFP
