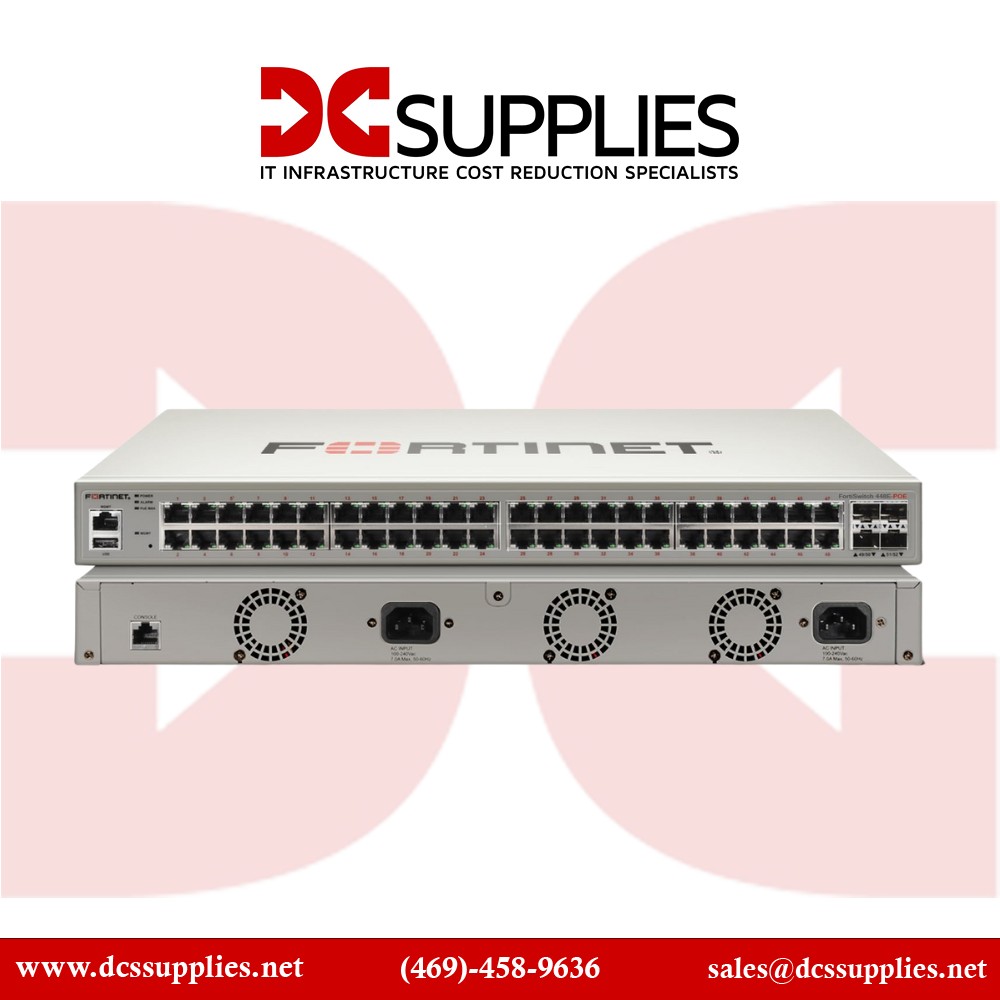

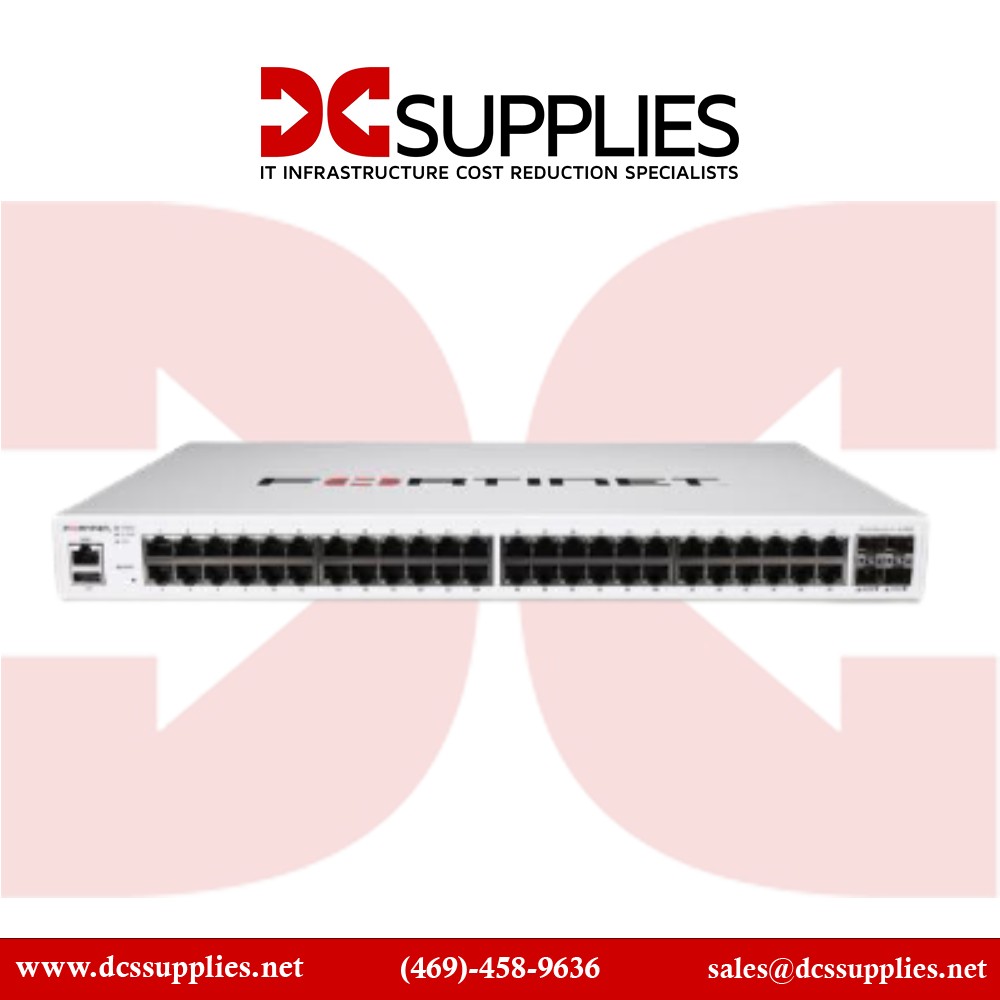

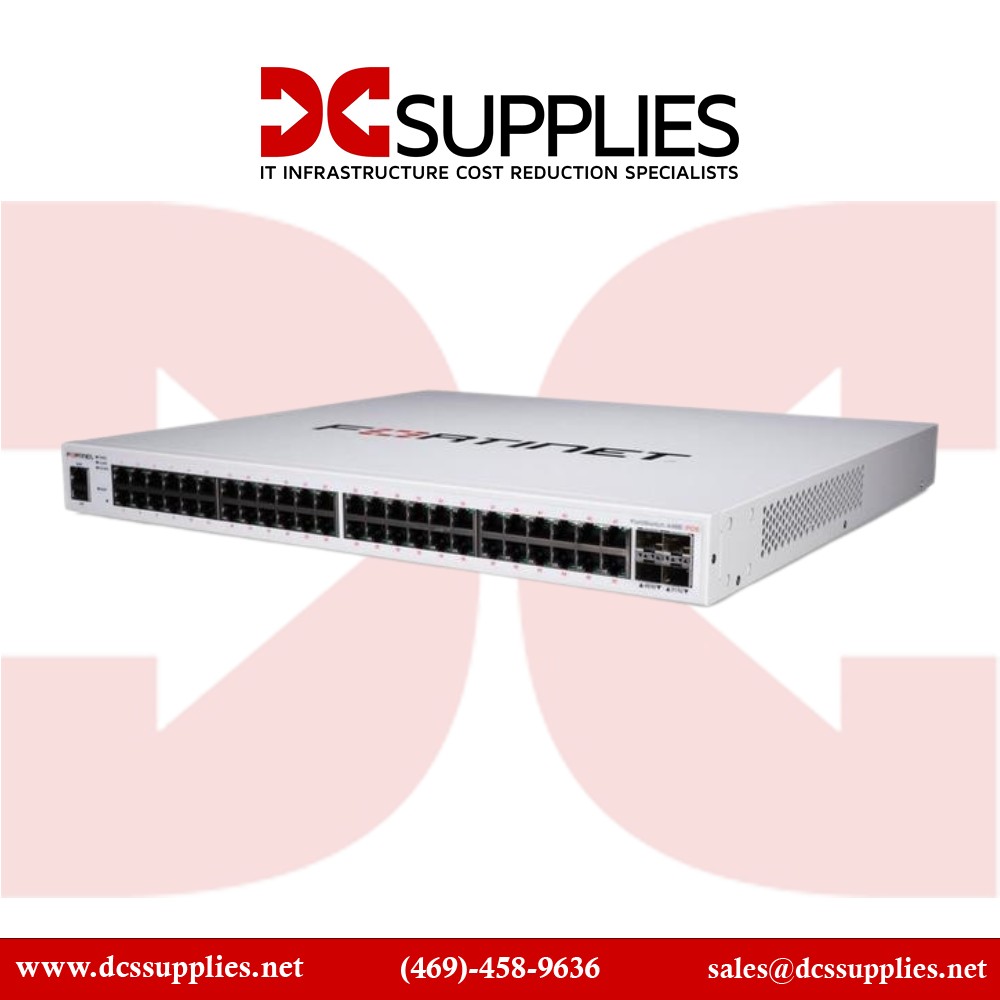

Fortinet FS-448E-FPOE 48 Ports Gigabit Ethernet Switch View larger

Fortinet FS-448E-FPOE 48 Ports Gigabit Ethernet Switch

FS-448E-FPOE

New

In Stock

Layer 2/3 FortiGate switch controller compatible switch w/ 48 GE RJ45, 4x 10 GE SFP + ports, 48 port PoE+ w/ maximum 772 W
×




$4,350.00

Detailed Specifications

Overview :

Security, Performance, and Manageability
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.

Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

Specifications :

Network
Access Control List (ACL) IPv6 entries 8000
Access Control List (ACL) IPv4 entries 16000
Networking standards IEEE 802.3af, IEEE 802.3at
Spanning tree protocol Yes
Number of VLANs 4000
Link aggregation Yes
Ethernet LAN data rates 1000 Mbit/s
Virtual LAN features
Number of VLANs 4000
Data transmission
Number of VLANs 4000
Latency (1 Gbps) 1 µs
Packet buffer memory 4 MB
MAC address table 32000 entries
Switching capacity 176 Gbit/s
IPv4 & IPv6 features
Access Control List (ACL) IPv6 entries 8000
Access Control List (ACL) IPv4 entries 16000
Performance
Packet buffer memory 4 MB
Noise level 50.7 dB
Memory type DDR4-SDRAM
Internal memory 1000 MB
Flash memory 256 MB
Technical details
Form factor 1U
Noise level 50.7 dB
Rack mounting Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 10
Console port RJ-45
Security
Access Control List (ACL) IPv6 entries 8000
Access Control List (ACL) IPv4 entries 16000
Certificates
Certification FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Memory
Packet buffer memory 4 MB
Memory type DDR4-SDRAM
Internal memory 1000 MB
Flash memory 256 MB
Design
Form factor 1U
Certification FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Rack mounting Yes
Power
Power consumption (max) 923.6 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (typical) 772 W
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 163.1 BTU/h
Weight & dimensions
Width 17.3" (440 mm)
Depth 16.1" (410 mm)
Height 1.73" (44 mm)
Weight 13.8 lbs (6.26 kg)
Other features
Ethernet LAN data rates 1000 Mbit/s
