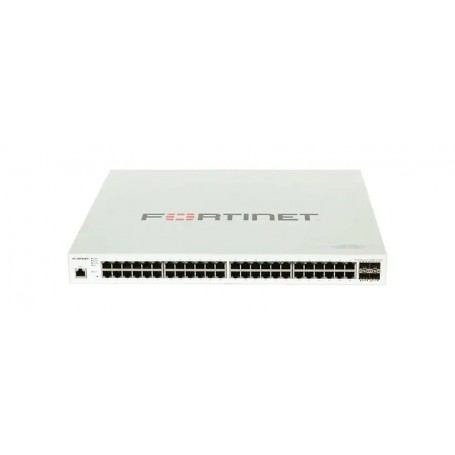

Fortinet FS-248E-FPOE 48 Ports managed Ethernet Switch View larger

Fortinet FS-248E-FPOE 48 Ports managed Ethernet Switch

FS-248E-FPOE

New

In Stock

Layer 2/3 FortiGate switch controller compatible PoE+ switch with 48 GE RJ45 + 4 SFP ports, 48 port PoE with maximum 740 W...

×




$2,280.00

Detailed Specifications

Overview :

FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate ® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.

Specifications :

Management features
Multicast support Yes
Switch type Managed
Switch layer L2
Ports & interfaces
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 48
Console port RJ-45
Network
IGMP snooping Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex Yes
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
Number of VLANs 4096
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Virtual LAN features Tagged VLAN
Virtual LAN features
VLAN support Yes
Number of VLANs 4096
Virtual LAN features Tagged VLAN
Data transmission
Number of VLANs 4096
Latency (1 Gbps) 1 µs
Packet buffer memory 1.5 MB
MAC address table 16000 entries
Switching capacity 104 Gbit/s
Jumbo frames support Yes
Forwarding rate 155 Mpps
Performance
Packet buffer memory 1.5 MB
Auto-negotiation Yes
Internal memory 512 MB
Flash memory 128 MB
Technical details
Form factor 1U
Product colour White
Rack mounting Yes
Security
BPDU filtering/protection Yes
Authentication Guest VLAN, MAC-based authentication, Port-based authentication
IGMP snooping Yes
DHCP features DHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast support Yes
Protocols
Management protocols HTTP / HTTPS, SNMP v1/v2c/v3, Telnet / SSH
Certificates
Certification FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Memory
Packet buffer memory 1.5 MB
Internal memory 512 MB
Flash memory 128 MB
Design
Form factor 1U
Product colour White
LED indicators Yes
Certification FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Rack mounting Yes
Indication
LED indicators Yes
Power
Power consumption (max) 855.02 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 842 W
Redundant power supply (RPS) support No
Number of power supply units 1
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 740 W
Power over Ethernet (PoE) ports quantity 48
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 162.87865 BTU/h
Weight & dimensions
Width 17.3" (440 mm)
Depth 16.1" (410 mm)
Height 1.73" (44 mm)
Weight 13.4 lbs (6.1 kg)
