HPE Aruba R8Q68A 6200M 24G PoE managed Ethernet switch View larger

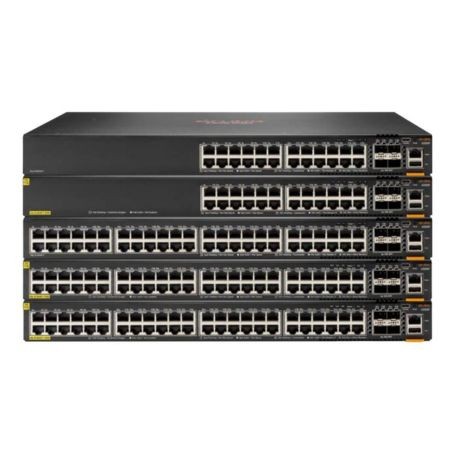

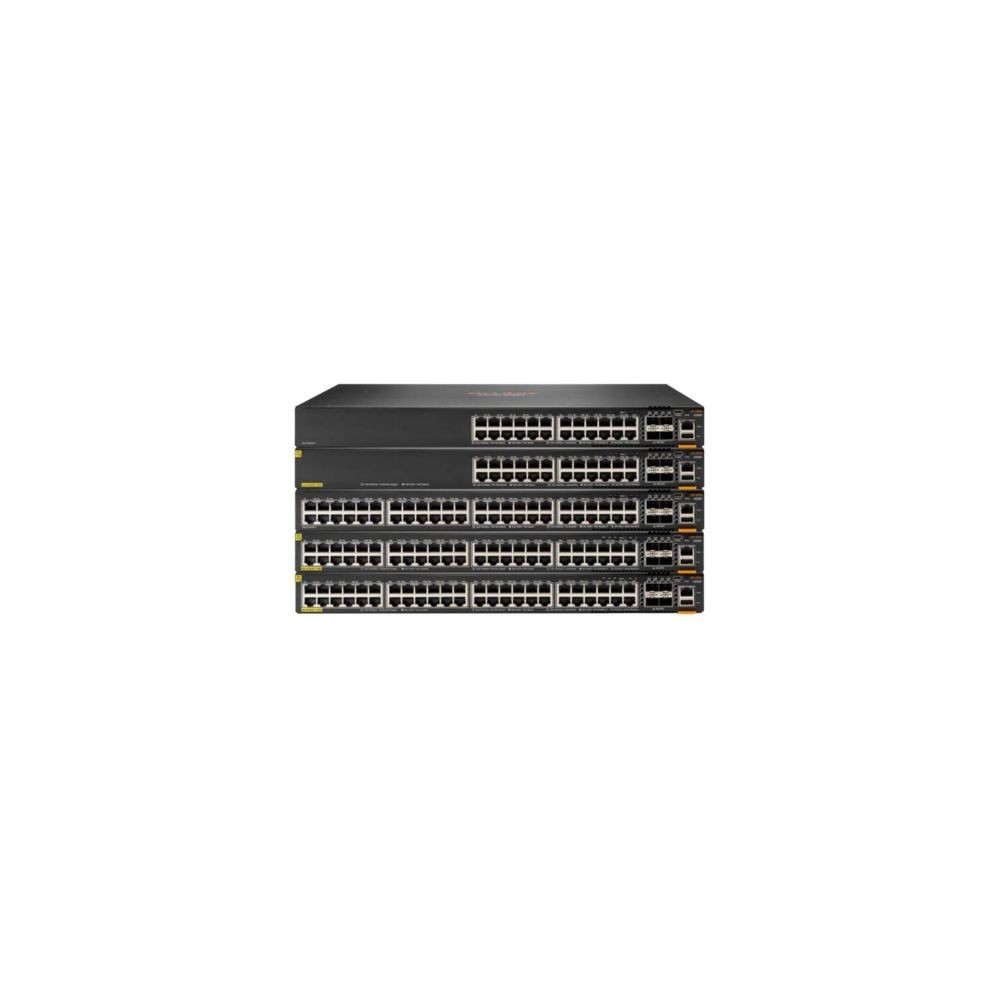

HPE Aruba R8Q68A 6200M 24G PoE managed Ethernet switch

R8Q68A

New

In Stock

HPE R8Q68A Aruba layer 3 Ethernet switch 24 port
×




$4,224.90

Detailed Specifications

HPE Aruba R8Q68A Ethernet switch

Overview :

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow's unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.

Specifications :

Brand HPE Aruba
Part Number R8Q68A
Product Type Ethernet switch
Packet buffer memory 8 MB
Stackable Yes
Processor frequency 1.8 MHz
Memory type DDR4-SDRAM
Internal memory 8192 MB
Flash memory 16000 MB
Built-in processor Yes
Processor model ARM Cortex-A72
Stackable Yes
Processor frequency 1.8 MHz
Rack mounting Yes
Built-in processor Yes
Switch type Managed
Switch layer L3
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 4
Console port RJ-45/USB Type-C
Networking standards IEEE 802.3af, IEEE 802.3at
10G support Yes
Throughput 95.2 Mpps
Packet buffer memory 8 MB
MAC address table 32000 entries
Switching capacity 176 Gbit/s
Packet buffer memory 8 MB
Memory type DDR4-SDRAM
Internal memory 8192 MB
Flash memory 16000 MB
Stackable Yes
Rack mounting Yes
Power supply included Yes
AC input voltage 100 - 240 V
Power consumption (typical) 76 W
Power source AC
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 740 W
Power over Ethernet (PoE) Yes
