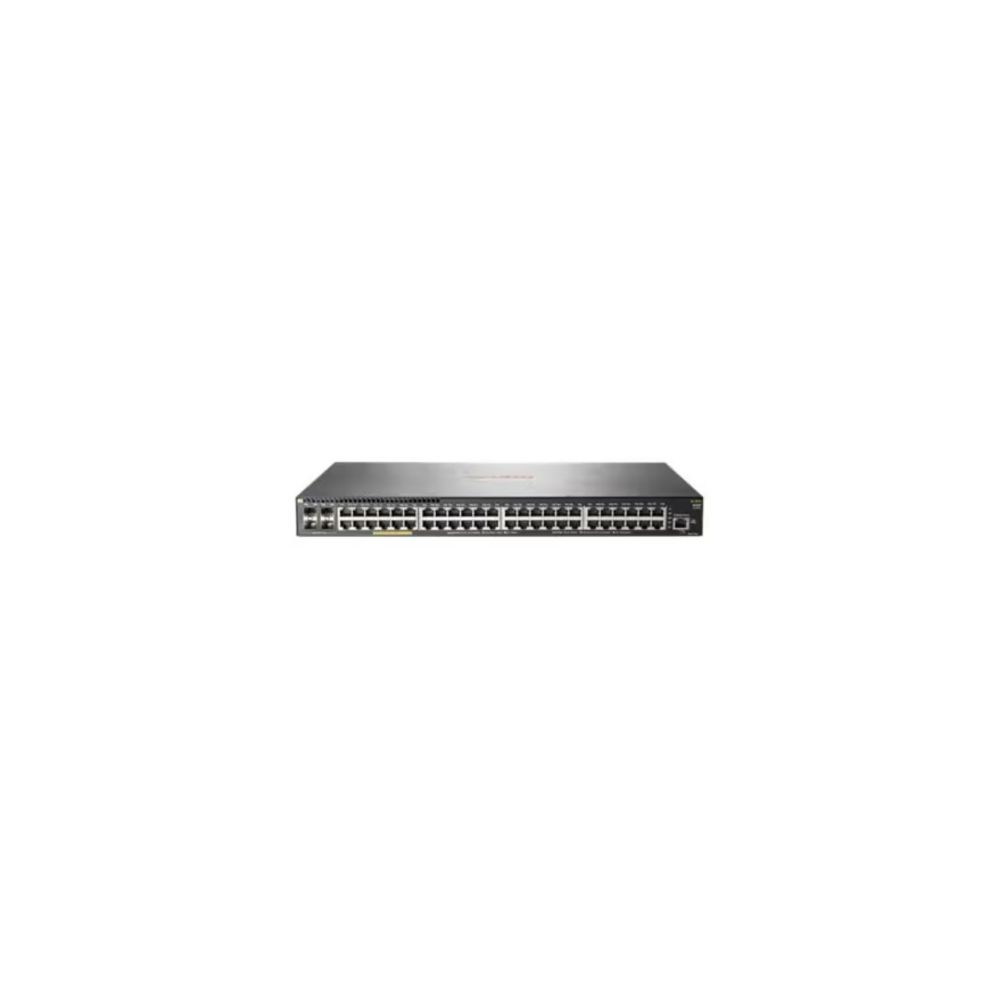

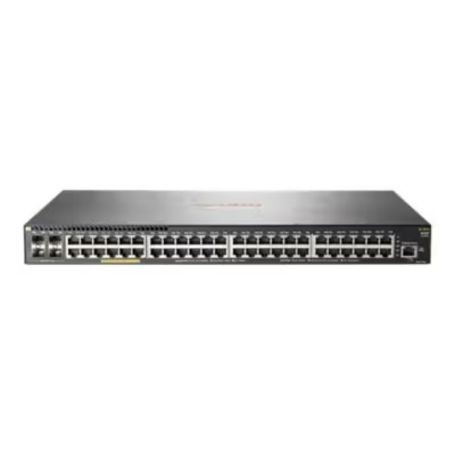

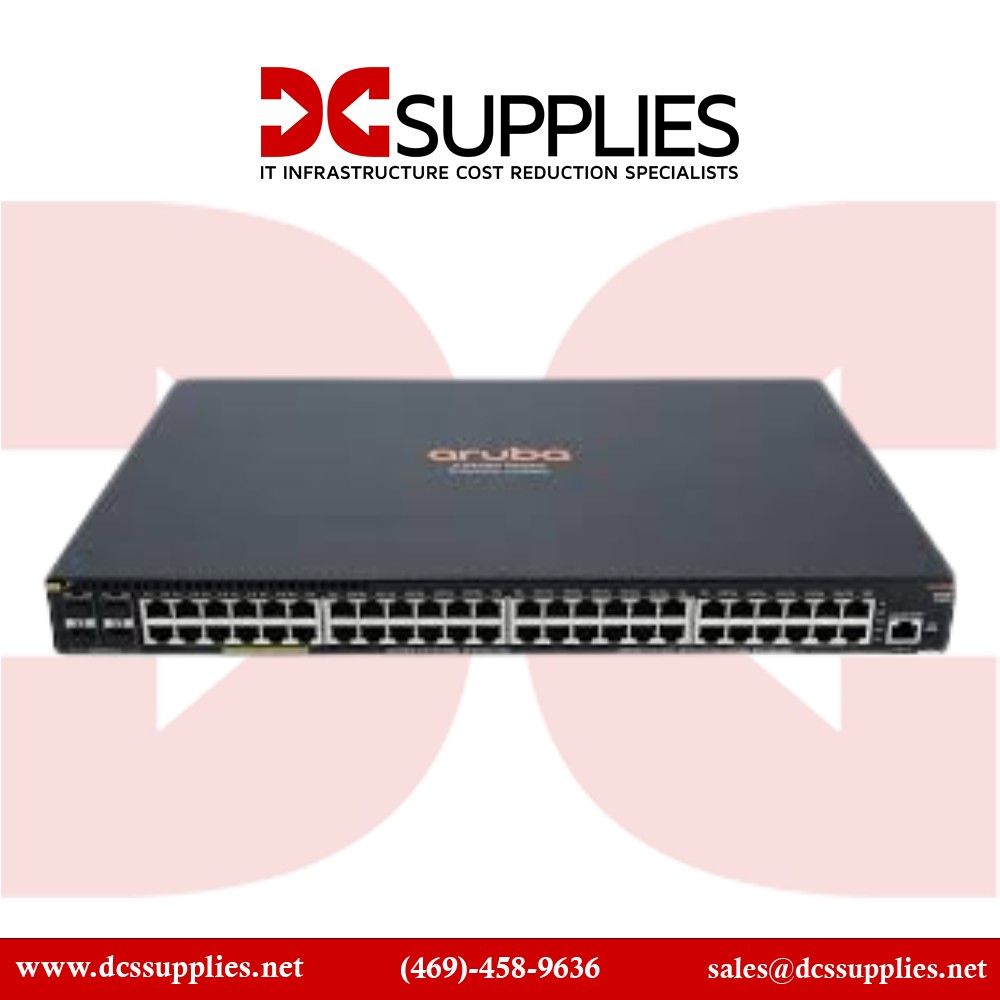

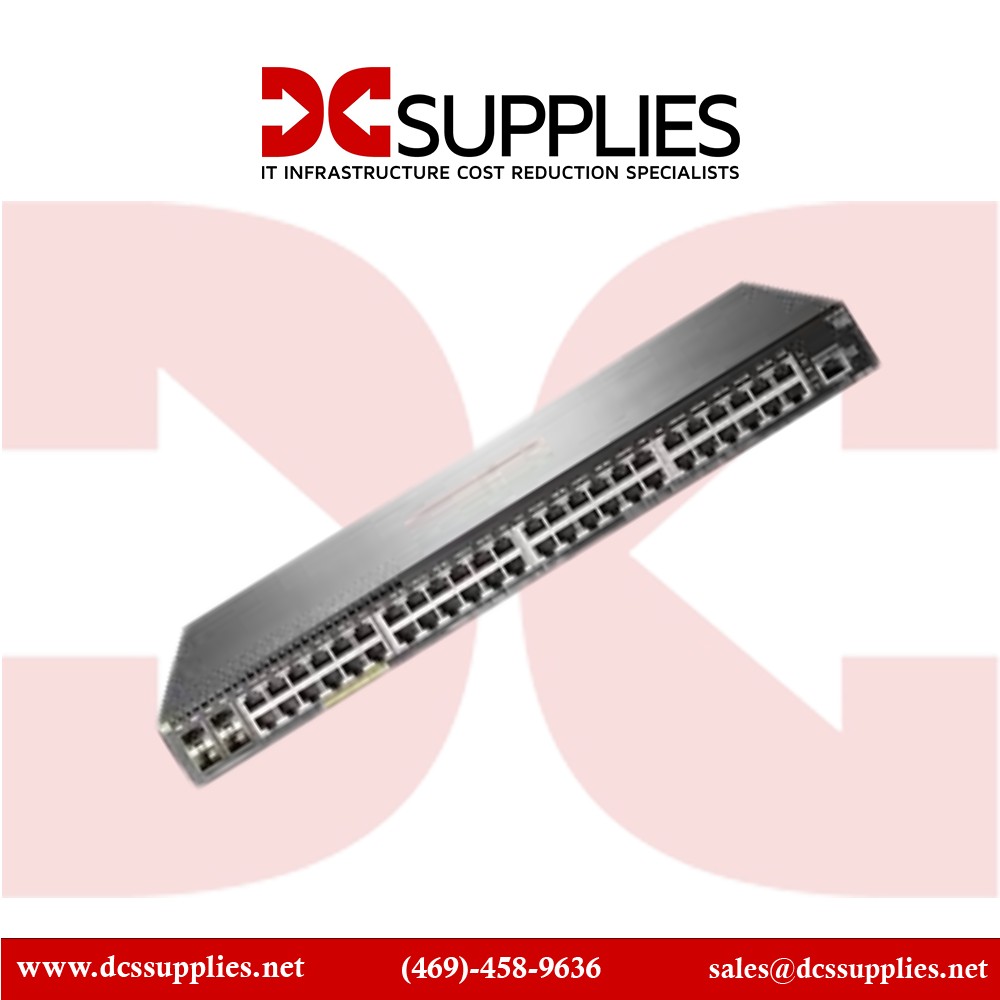

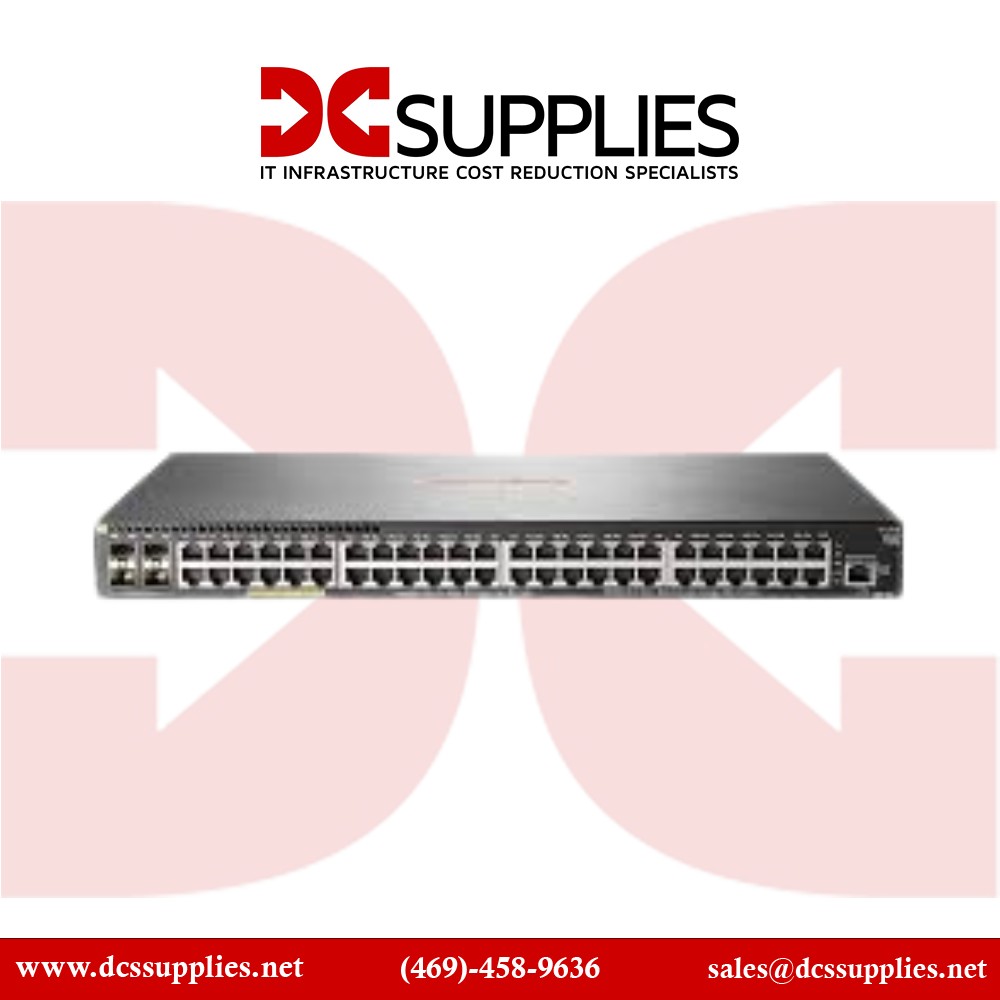

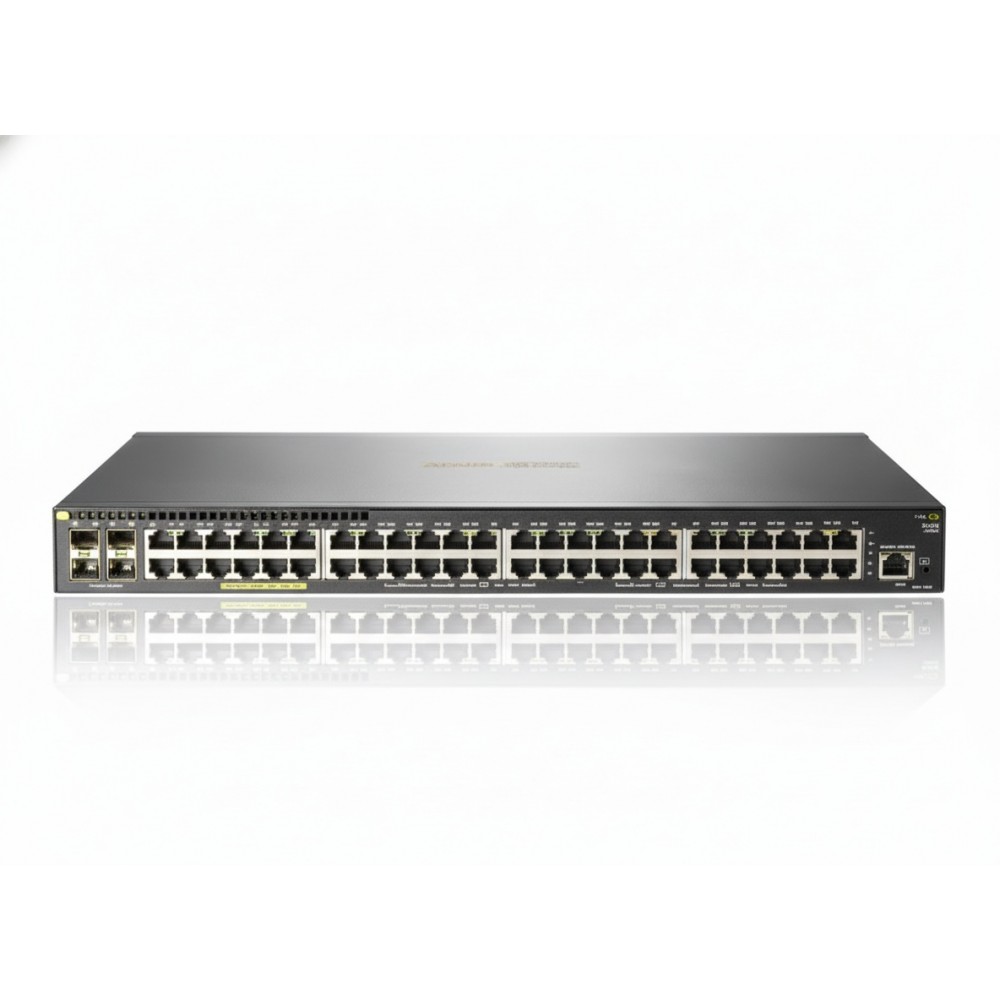

HPE Aruba JL262 2930F 48G Managed Ethernet Switch View larger

HPE Aruba JL262 2930F 48G Managed Ethernet Switch

JL262

New

In Stock

HPE JL262 Aruba layer 3 Switch PoE 48 Ports
×




$1,695.00

Detailed Specifications

HPE Aruba JL262 Ethernet Switch

Overview :

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba Clear Pass Policy Manager, Aruba Air Wave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing. Aruba Layer 3 switch series that is easy to deploy and manage with Aruba Clear Pass Policy Manager and Aruba Air Wave. Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support. The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.

Specifications :

Brand HPE
Part Number JL262
Product name HPE Aruba Managed Ethernet Switch 48 poe port
Product Type Ethernet Switch
Multicast support Yes
Traffic classification Yes
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
IGMP snooping Yes
IPv6 FIB entries 5000
IPv4 FIB entries 10000
Auto-sensing Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex Yes
VLAN support Yes
Spanning tree protocol Yes
Routing entries 10000
Rate limiting Yes
Link aggregation Yes
IP routing Yes
Flow control support Yes
Auto MDI/MDI-X Yes
10G support No
VLAN support Yes
IPv6 FIB entries 5000
IPv4 FIB entries 10000
Packet buffer memory 12.38 MB
Stackable Yes
Processor frequency 1016 MHz
Memory type DDR3-SDRAM
Internal memory 1024 MB
Built-in processor Yes
Processor model ARM Cortex-A9
Harmonized System (HS) code 85176990
Form factor 1U
Product colour Gray
Stackable Yes
Processor frequency 1016 MHz
Rack mounting Yes
Built-in processor Yes
Throughput 77.4 Mpps
Latency (1 Gbps) 3.8 µs
Packet buffer memory 12.38 MB
MAC address table 32768 entries
Switching capacity 104 Gbit/s
Jumbo frames support Yes
SSH/SSL support Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP server
Multicast support Yes
Routing protocols IP
IPv6 FIB entries 5000
IPv4 FIB entries 10000
Packet buffer memory 12.38 MB
Memory type DDR3-SDRAM
Internal memory 1024 MB
Form factor 1U
Product colour Gray
Stackable Yes
Rack mounting Yes
Power consumption (max) 459 W
Power supply included Yes
AC input voltage 100 - 240 V
Power consumption (typical) 48.6 W
Total Power over Ethernet (PoE) budget 370 W
Power over Ethernet (PoE) Yes
