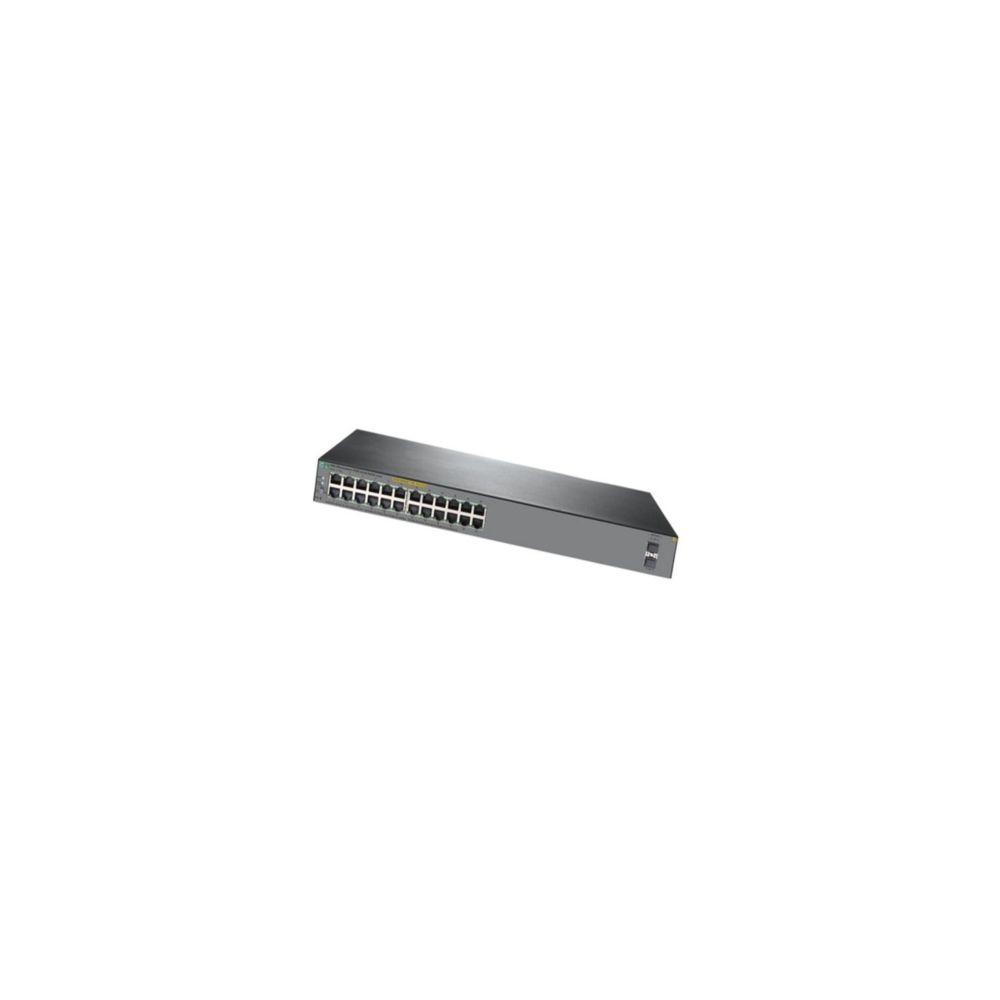

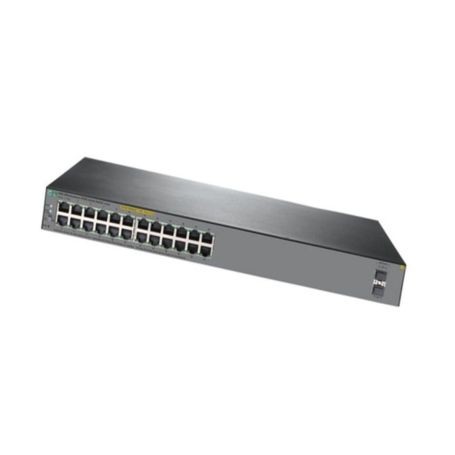

HPE JL385A 1920S Networking Ethernet Switch 24 port poe View larger

HPE JL385A 1920S Networking Ethernet Switch 24 port poe

JL385A

New

HPE JL385A Layer 3 24G 2SFP Ethernet Switch 370W
×




Detailed Specifications

HPE JL385A Ethernet Switch

Overview :

The HPE OfficeConnect 1920S Switch Series, is designed for small businesses that require enhanced performance to support bandwidth-demanding applications. They are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management. The switches are advanced smart-managed fixed configuration Gigabit switches that are optimized for small business price/performance. They offer 8-, 24- and 48-port configurations, choice of PoE+ and non-PoE+ models; some include SFP slots for fiber connectivity. HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z. Power over Ethernet (PoE). Rack mounting, Form factor: 1U.

Specifications :

Brand HPE
Part Number JL385A
Product Name HPE 1920S Networking Ethernet Switch 24 port poe
Product Type Ethernet Switch
Rack Mounting Yes
Stackable Yes
Form Factor 1U
Colour of Product Grey
Switch Type Managed
Switch Layer L3 (Layer 3)
Quality of Service (QoS) Support Yes
Web-Based Management Yes
Basic Switching RJ-45 Ethernet Ports Quantity 24
Basic Switching RJ-45 Ethernet Ports Type 1 GbE Copper
Installed SFP Modules Quantity 2
SFP Module Slots Quantity 2
Networking Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z
10G Support No
Copper Ethernet Cabling Technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port Mirroring Yes
Full Duplex Yes
Auto-Sensing Yes
Rate Limiting Yes
Spanning Tree Protocol Yes
Auto MDI/MDI-X Yes
Flow Control Support Yes
VLAN Support Yes
MAC Address Table 16,000 entries
Switching Capacity 52 Gbit/s
Throughput 77.3 Mpps
Latency (10-100 Mbps) 7 µs
Latency (1 Gbps) 2 µs
Jumbo Frames Support Yes
Packet Buffer Memory 1.5 MB
DHCP Features DHCP client
Access Control List (ACL) Yes
IGMP Snooping Yes
SSH/SSL Support Yes
Built-In Processor Yes
Processor Frequency 400 MHz
Memory Type SDRAM
Internal Memory 256 MB
Flash Memory 64 MB
Power Supply Included Yes
AC Input Voltage 100 - 240 V
AC Input Frequency 50 - 60 Hz
Power Consumption (Typical) 34.2 W
Power Consumption (Max) 435 W
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) Budget 370 W
