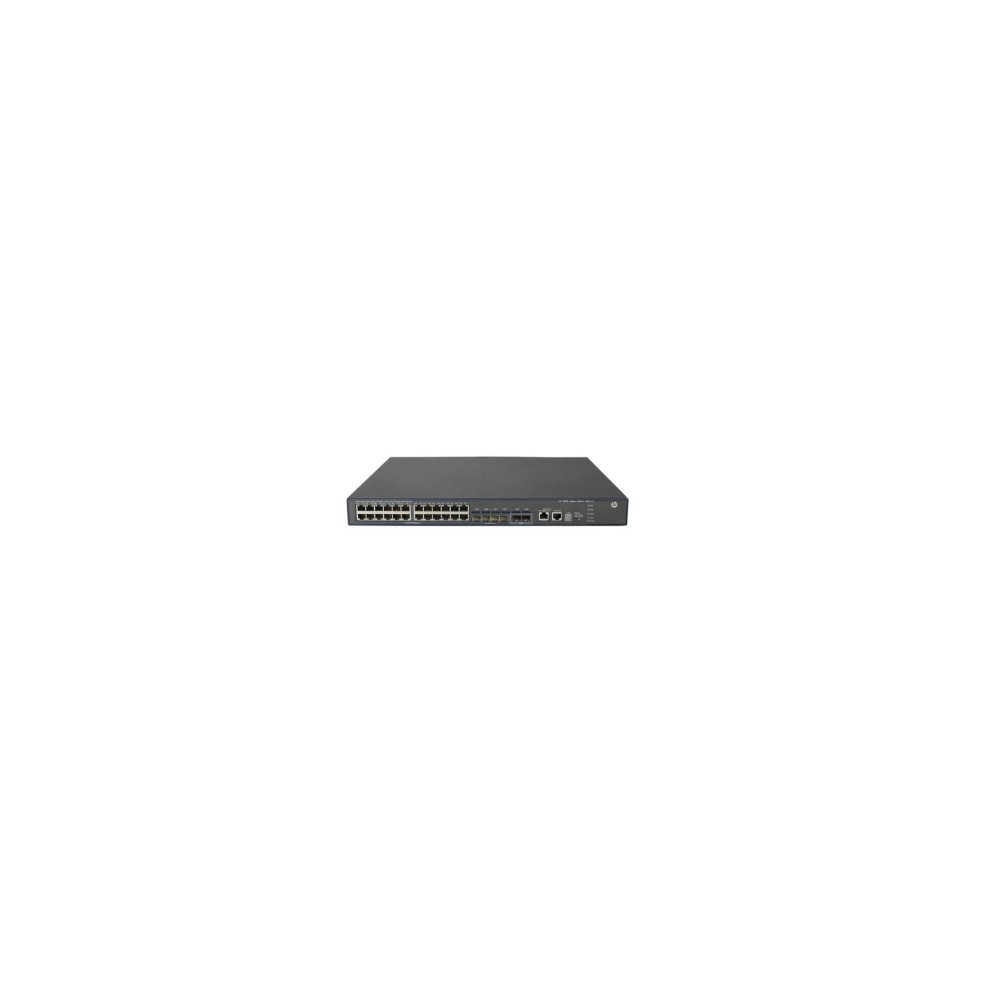

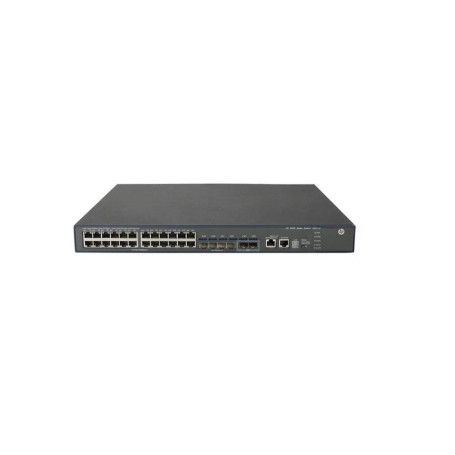

HPE JG541A 5500-24G-PoE+ 4SFP 24 Port Ethernet Switch View larger

HPE JG541A 5500-24G-PoE+ 4SFP 24 Port Ethernet Switch

JG541A

New

In Stock

HPE JG541A 5500-24G-PoE+ is a high-performance Layer 3 managed switch
×




$0.00

Detailed Specifications

HPE JG541A Ethernet Switch

Overview

The HPE 5500-24G-PoE+ (JG541A) Ethernet Switch is part of the HPE FlexNetwork 5500 EI Series, known for its scalability, efficiency, and robust Layer 3 capabilities. Designed for enterprise and campus networks, it supports PoE+ for easy deployment of powered devices, QoS for traffic prioritization, and advanced security features.

Key Features:

  • 24 x Gigabit Ethernet (10/100/1000) PoE+ ports for data and power.
  • 4 x SFP uplink ports for flexible fiber connectivity.
  • PoE+ (802.3at) support with up to 30W per port.
  • Layer 3 static and dynamic routing for optimized traffic flow.
  • High-performance switching capacity of 128 Gbps.
  • Advanced security with 802.1X authentication, ACLs, RADIUS, and TACACS+.
  • IRF stacking support for scalability and simplified management.
  • Redundant power supply support for increased reliability.
  • Jumbo frame support for improved performance in large data transfers.

Specification Table

Part Number JG541A
Brand HPE
Product Type Ethernet Switch
Ports 24 x 10/100/1000 Mbps Gigabit Ethernet PoE+
Uplink Ports 4 x SFP
PoE Standard 802.3af/802.3at (PoE+)
PoE Power Budget 370W Total Power Budget
Switching Capacity 128 Gbps
Forwarding Rate 95 Mpps (Million Packets Per Second)
Layer Support Layer 2 and Layer 3
MAC Address Table 32K entries
Jumbo Frame Support Yes (up to 9K bytes)
IPv6 Support Yes
Security Features ACLs, 802.1X, RADIUS, TACACS+, DHCP Snooping
QoS Features Traffic shaping, Rate limiting, Priority queuing
Stacking Support Yes (IRF Stacking)
Management CLI, Web GUI, SNMP v1/v2c/v3, RMON
Power Supply Internal, redundant option available
Form Factor Rack-Mountable (1U)
Dimensions (W x D x H) Approx. 44 x 32 x 4.4 cm
Weight Approx. 5.6 kg
Operating Temperature 0°C to 45°C
Ideal Use Case Enterprise networks, VoIP, Surveillance, WLAN deployment
