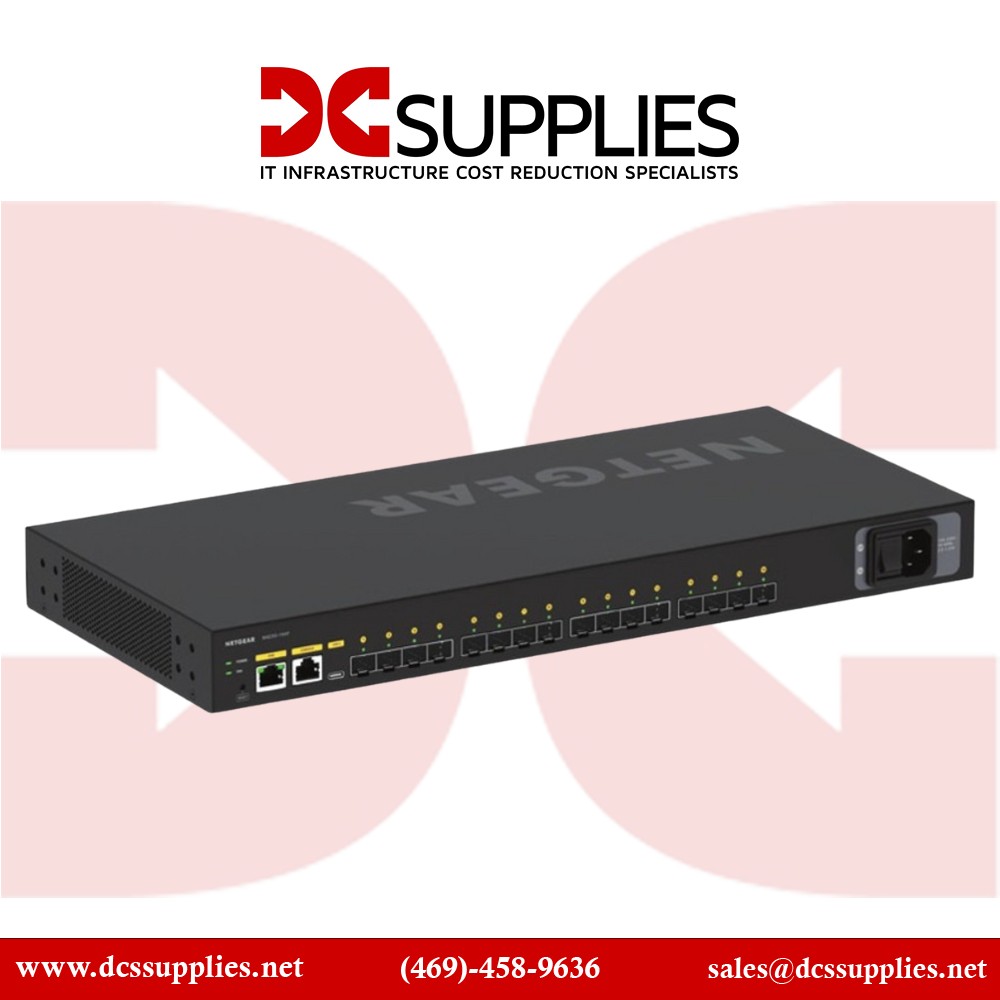

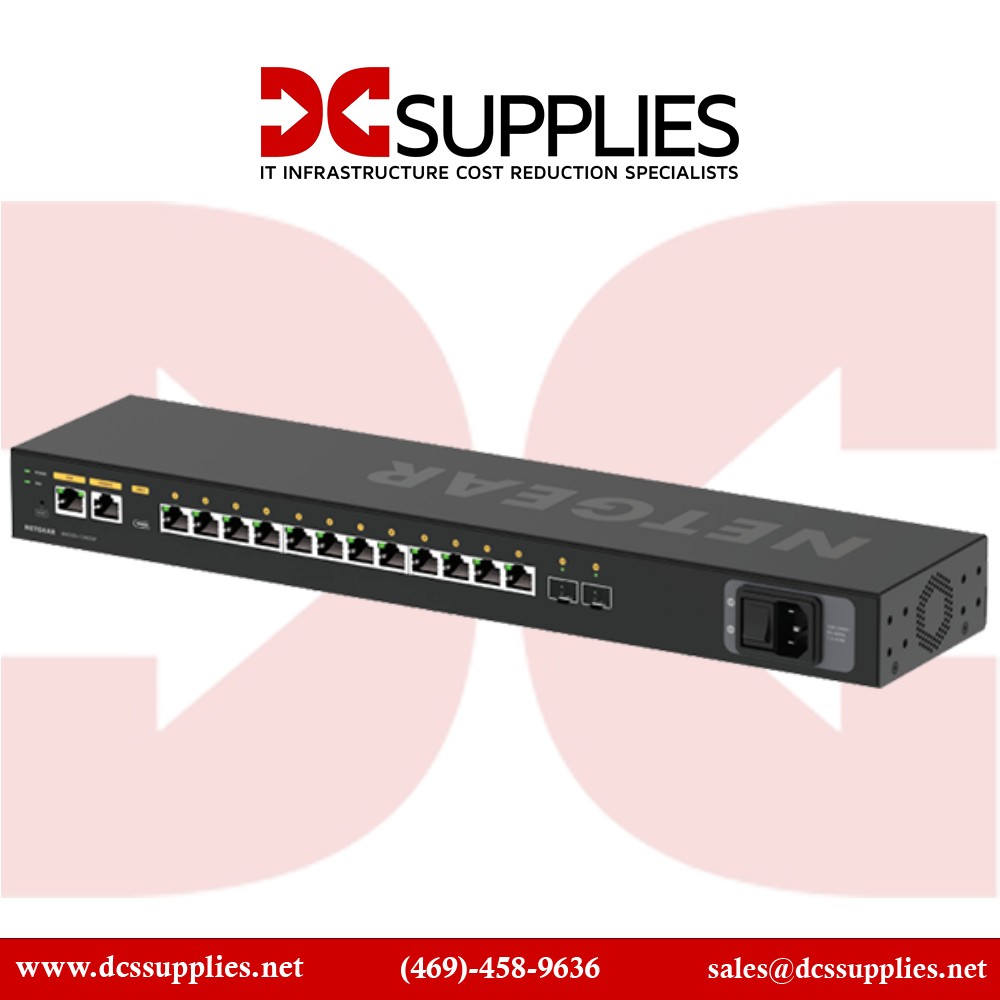

NETGEAR MSM4214X-100NAS AV Line M4250-12M2XF 12X2.5G 2XSFP+ Switch View larger

Netgear MSM4214X-100NAS M4250 12M2XF AV 12-Port 2.5G Managed Switch

MSM4214X-100NAS

New

In Stock

NETGEAR M4250-12M2XF is a managed switch with 12x 2.5G Ethernet and 2x SFP+ ports
×




$945.00

Detailed Specifications

Netgear MSM4214X-100NAS Managed Ethernet Switch

Overview :

Netgear AV Line M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X) - 12 Ports - Manageable - 3 Layer Supported - Modular - 37.90 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Rack-mountable
Switching Engineered for AV over IP

The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.

NETGEAR M4250 series key features:

  • Ranges from 8 to 16 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
  • Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
  • Also includes 12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
  • Designed for a clean integration with traditionalrack-mounted, AV equipment

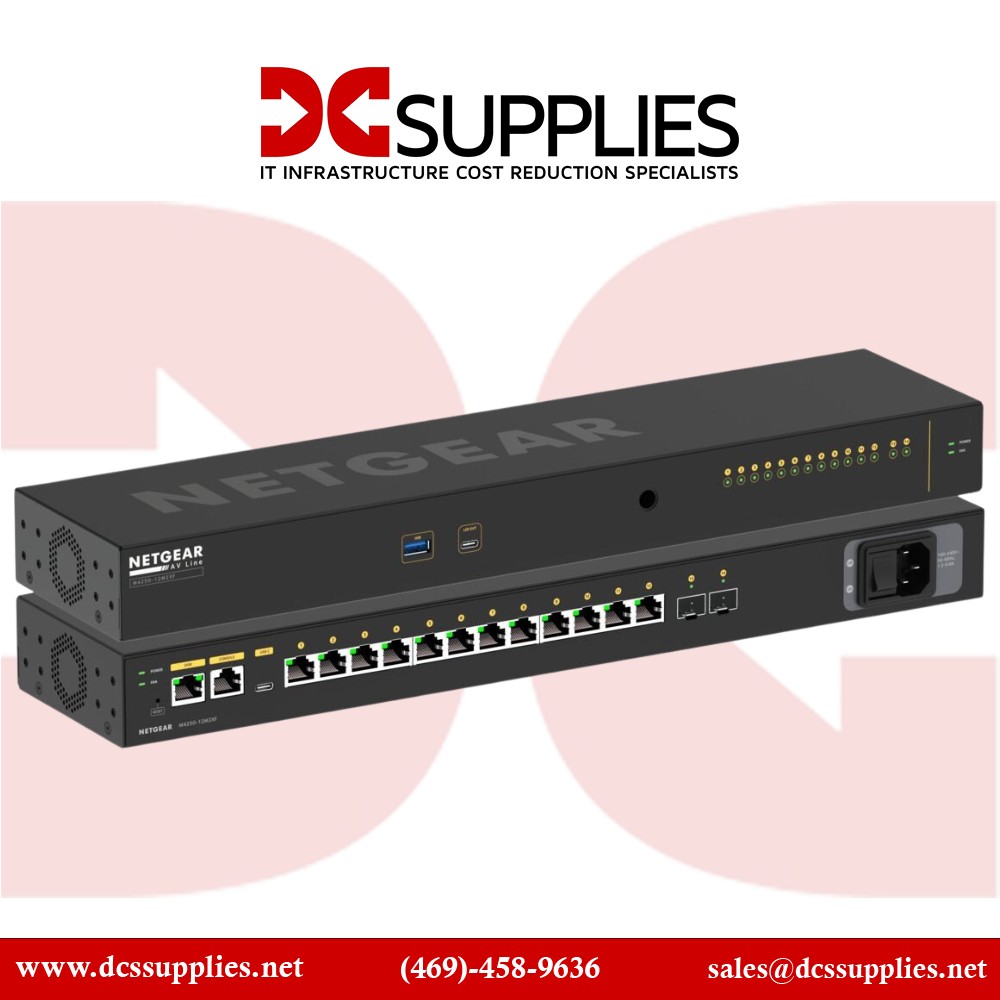

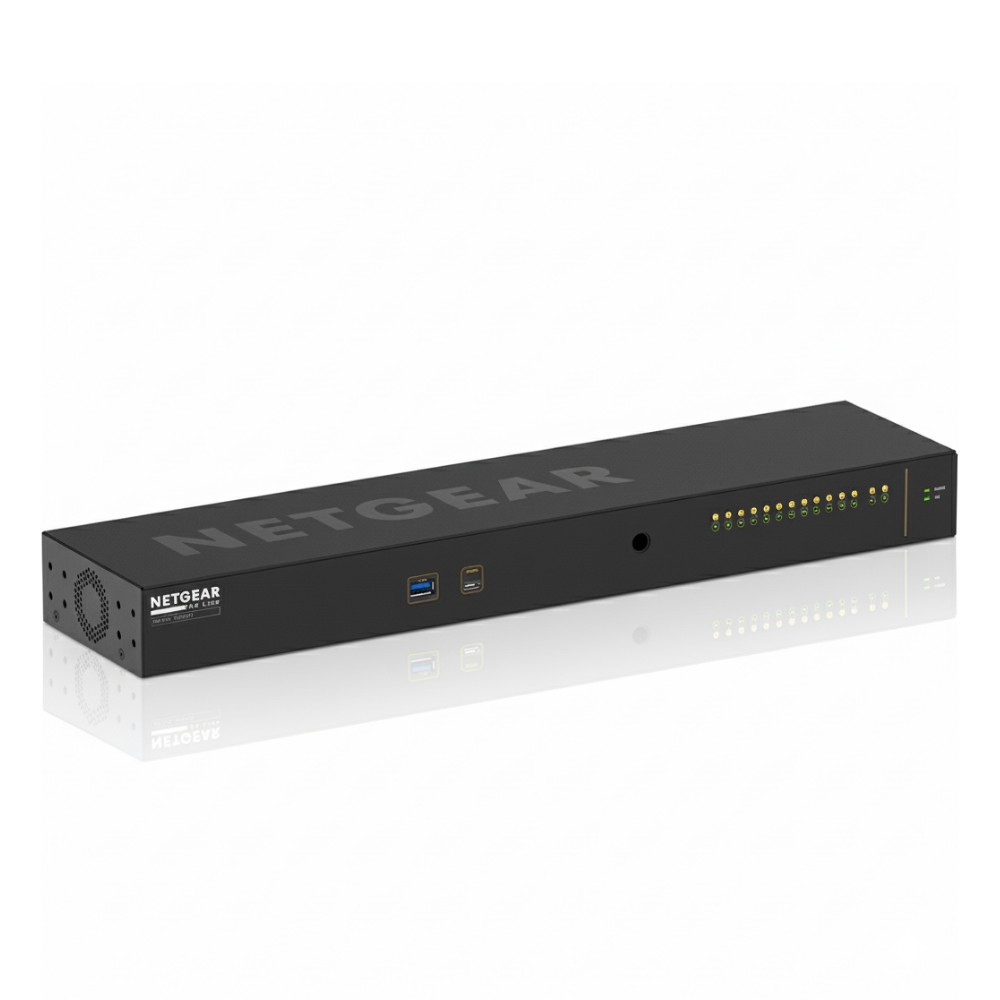

  • The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
  • Reversed mounting is possible when ports are desired on the front of the rack
  • A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
  • Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
  • Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mountingoptionsoutside the rack as well

Specifications :

Product Name AV Line M4250-12M2XF 12X2.5G 2XSFP+ Switch
Manufacturer Part Number MSM4214X-100NAS
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology 10 Gigabit Ethernet , 2.5 Gigabit Ethernet
Number of Total Expansion Slots 2
Product Family AV Line
Media Type Supported Optical Fiber Twisted Pair
Total Number of Network Ports 12
PoE (RJ-45) Port No
Expansion Slot Type SFP+
Plug / Connector Type IEC 60320 C14
Form Factor Rack-mountable
Power Consumption 37.90 W
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Compatible Rack Unit 1U
Number of SFP+ Slots 2
Modular Yes
Port / Expansion Slot Details 12 x 2.5 Gigabit Ethernet Network 2 x 10 Gigabit Ethernet Expansion Slot
Country of Origin Thailand
Product Model M4250-12M2XF
Network Technology 10GBase-X 2.5GBase-T
Product Line AV Line
Limited Warranty Lifetime
Power Plug Type Type C
