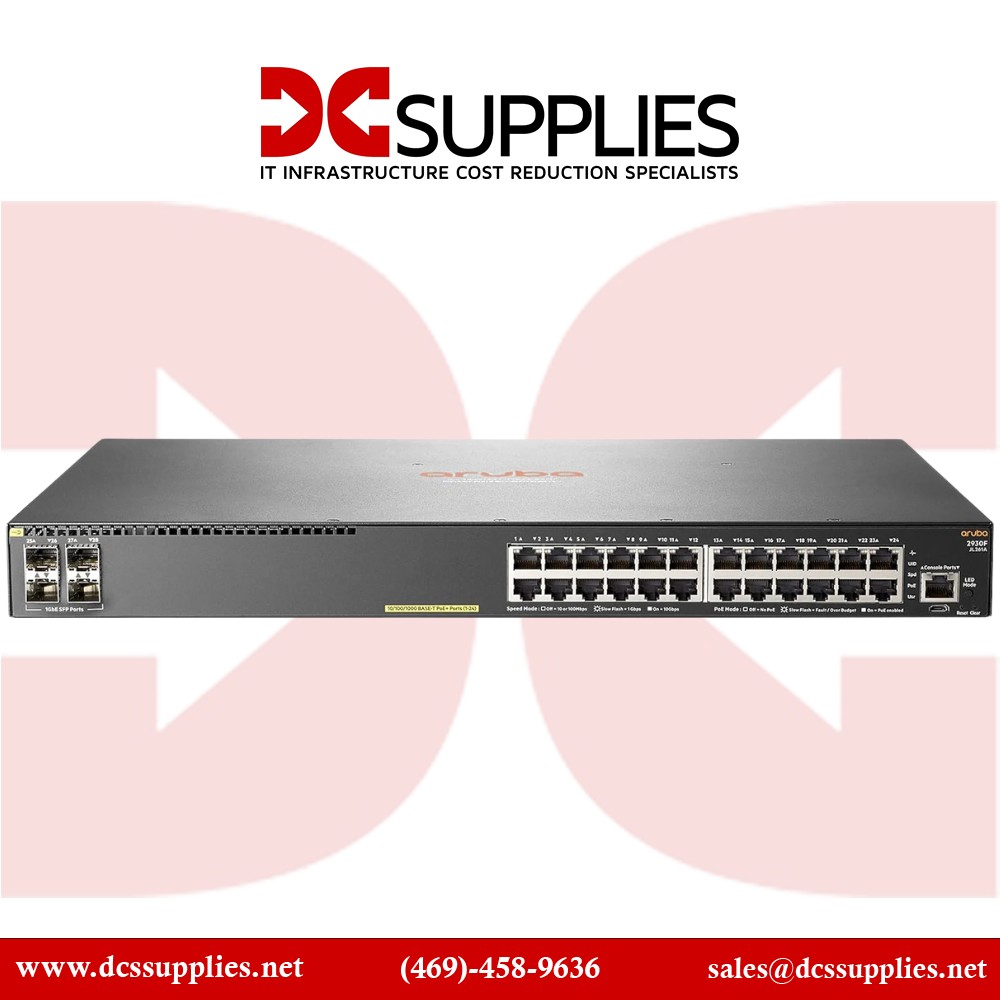

HPE Aruba  JL253A Ethernet switch View larger

HPE Aruba JL253A 2930F 24G 4SFP Switch

JL253A

New

In Stock

HPE Aruba JL253A 2930F 24-Port Gigabit with 4x SFP+ L3 Managed Switch

×




$892.50

Detailed Specifications

HPE Aruba JL253A Managed Switch

Overview :

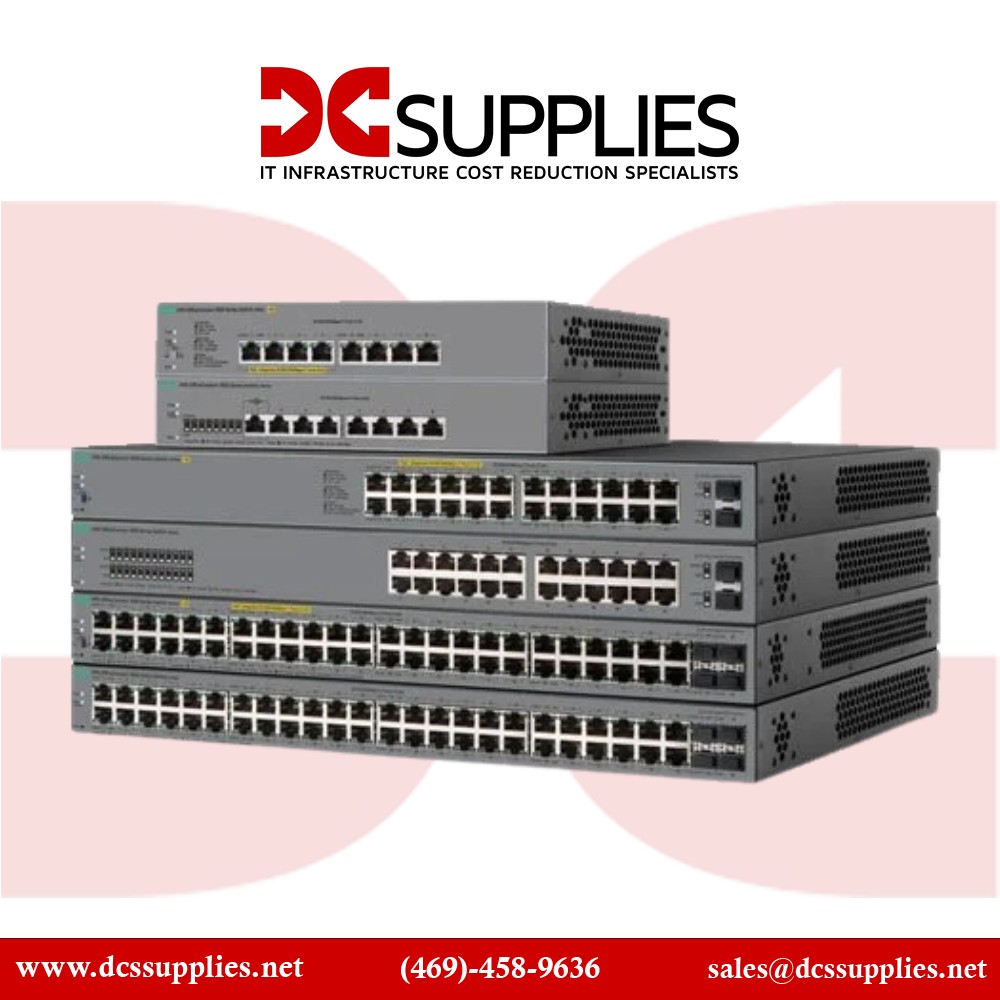

The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba Clear Pass Policy Manager and Aruba Air Wave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba Pro Vision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing. Designed primarily for digital workspaces that are optimized for mobile users, the Aruba 2930F 24-Port Gigabit Managed Network Switch allows you to quickly expand your business's network capacity for additional computers, access points, and other devices. Powered by a 1016 MHz ARM Cortex A9 dual-core processor and 1GB DDR3 memory, this desk and rack-mountable Layer 3 switch delivers smooth data transfers with a 128 Gb/s switching capacity and 95.2 Mpps forwarding rate. Additionally, its 24 Gigabit Ethernet ports are complemented by four SFP+ slots that support 10G fiber uplinks.

Specification :

Product Name Aruba 2930F 24G 4SFP+ Switch
Manufacturer Part Number JL253A
Product Type Layer 3 Switch
Manageable Yes
Ethernet Technology 10 Gigabit Ethernet Gigabit Ethernet
Stack Port No
Media Type Supported Twisted Pair Optical Fiber
Total Number of Network Ports 24
Total Number of Expansion Slots 4.0
Expansion Slot Type SFP+
Form Factor Rack-mountable Desktop
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Compatible Rack Unit 1U
Number of SFP+ Slots 4
Modular Yes
Uplink Port Yes
Shared SFP Slot No
Port / Expansion Slot Details 24 x Gigabit Ethernet Network 4 x 10 Gigabit Ethernet Uplink
Height 1.7"
Width 17.4"
Depth 7.9"
Product Model 2930F 24G 4SFP
Network Technology 10GBase-X 10/100/1000Base-TX
Packaged Quantity 1
