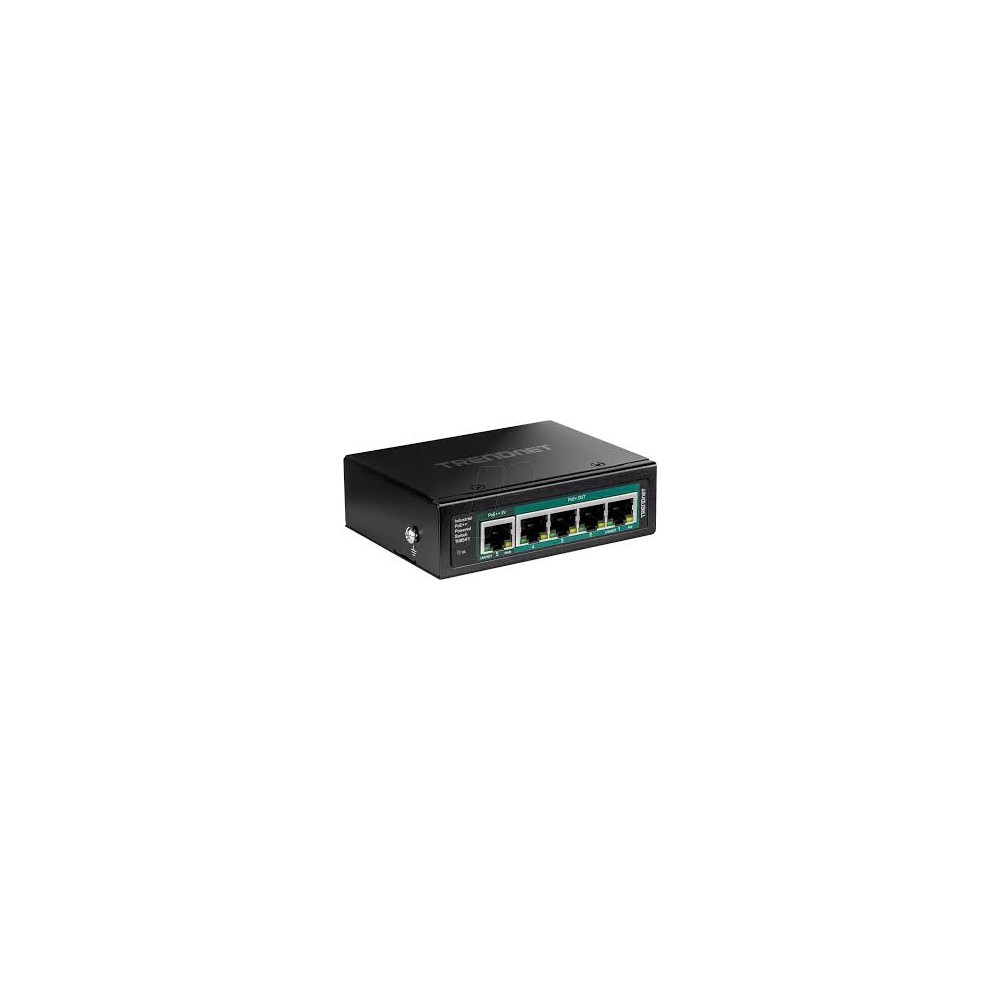

TRENDnet TI-B541 5-Port Industrial PoE+ Switch, Gigabit Metal Housing View larger

TRENDnet TI-B541 5-Port Industrial PoE+ Switch, Gigabit Metal Housing

TI-B541

New

TRENDnet TI-B541 5-Port Industrial PoE+ Gigabit Switch with Rugged Metal Housing and Redundant Power.
×




Detailed Specifications

TRENDnet TI-B541 5-Port Industrial PoE+ Switch Gigabit Metal Housing

Overview :

The TRENDnet TI-B541 is a 5-port industrial gigabit PoE+ switch designed for harsh environments. With rugged metal housing, redundant power inputs, and a wide temperature range, it ensures reliable performance in critical industrial settings. Ideal for powering PoE devices like cameras and access points.

Key Features :

  • 5 Gigabit Ports: Provides high-speed network connections.
  • PoE+ Support: Four PoE+ ports provide up to 30W per port for PoE devices.
  • Rugged Metal Housing: Built for industrial environments with an IP30 rating.
  • Redundant Power Inputs: Ensures reliable operation with dual power inputs.
  • Wide Operating Temperature: Operates between -40°C to 75°C (-40°F to 167°F).
  • Fanless Design: Silent operation and reduced maintenance.
  • DIN-Rail Mountable: Easy installation in industrial racks or walls.
  • Vibration and Shock Resistant: Designed to withstand harsh conditions.
  • Surge Protection: Built-in protection for network devices.
  • Energy-Efficient: Compliant with IEEE 802.3az for energy-saving performance.

Technical Specifications :

SpecificationDetails
Brand TRENDnet
Part Number TI-B541
Product Type  Switch
Ports 5 x Gigabit Ethernet
PoE+ Ports 4 x PoE+ (802.3af/at, 30W per port)
Total PoE Budget 120W
Power Inputs Redundant power inputs (48-56V DC)
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Surge Protection 6KV
Housing IP30-rated rugged metal
Mounting DIN-Rail and Wall Mountable
Dimensions 138 x 108 x 35 mm
Weight 460g
Switching Capacity 10 Gbps
MAC Address Table 8K
Vibration Resistance IEC 60068-2-6
Shock Resistance IEC 60068-2-27
Power Consumption Max 6W (without PoE load)
Fanless Yes
