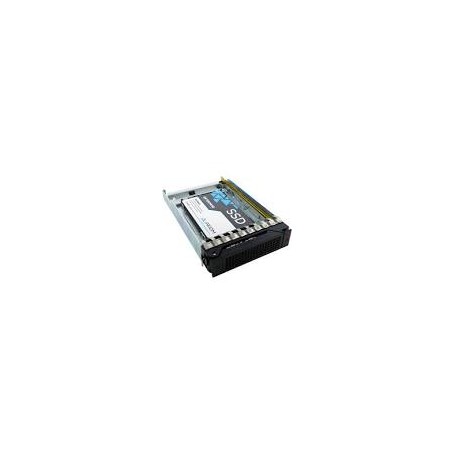

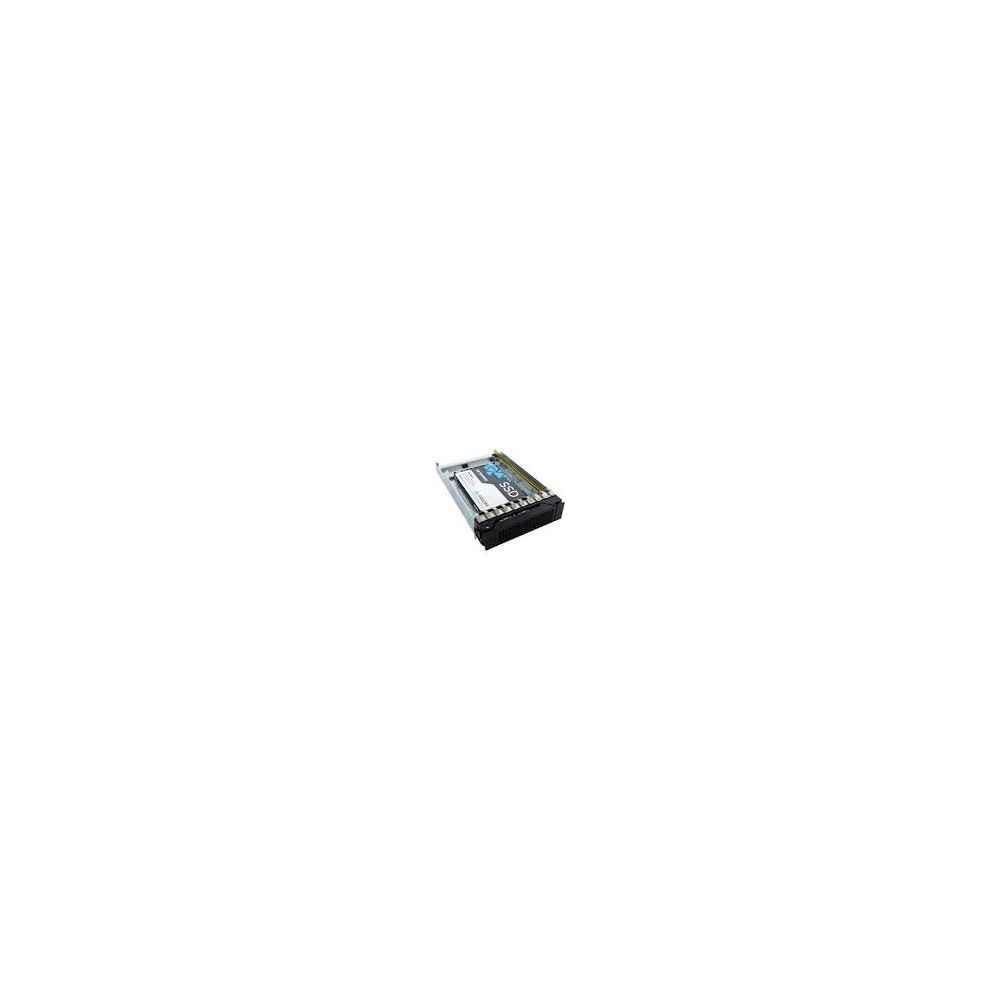

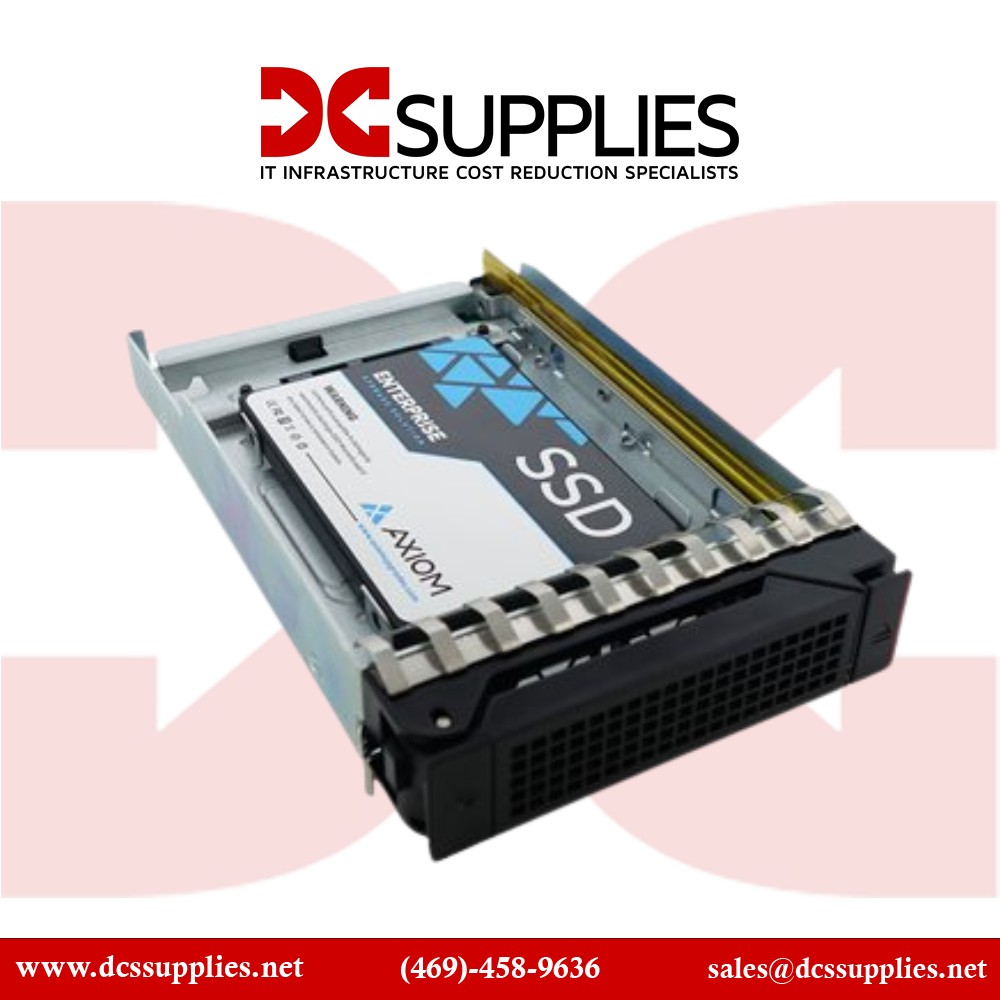

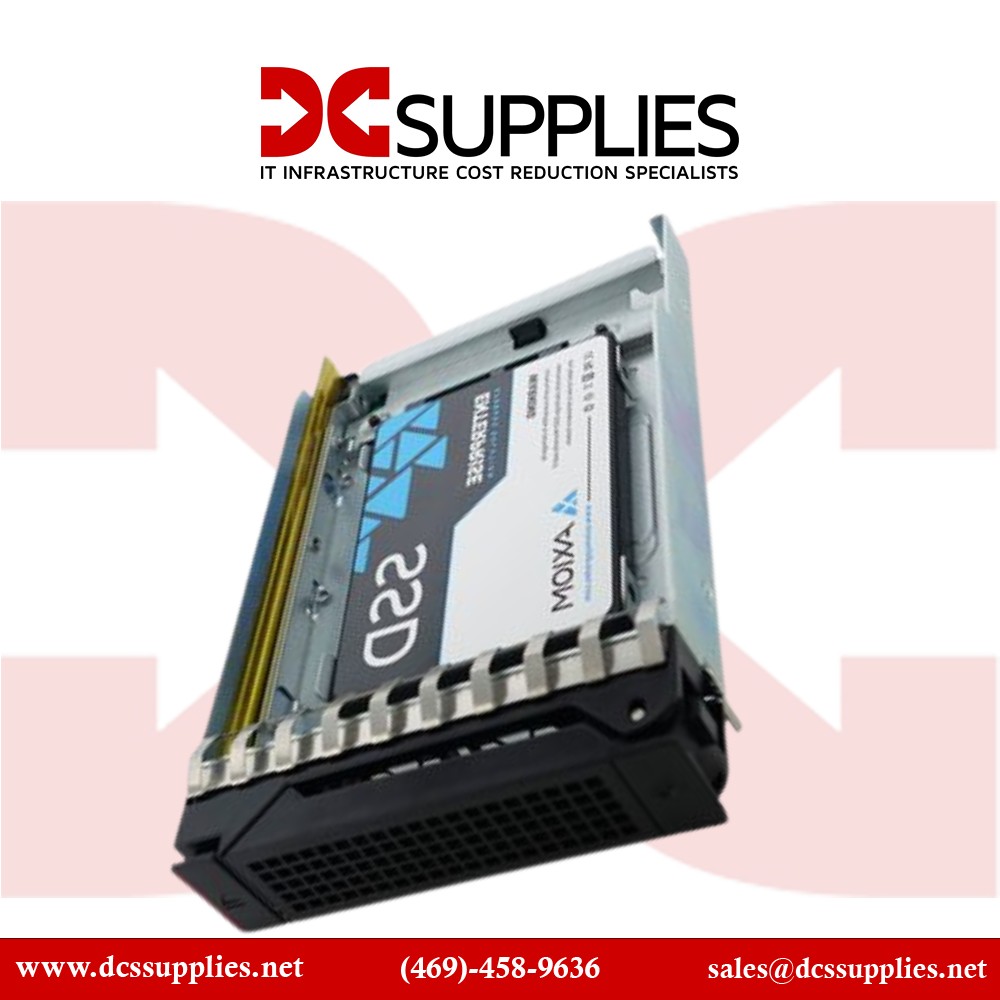

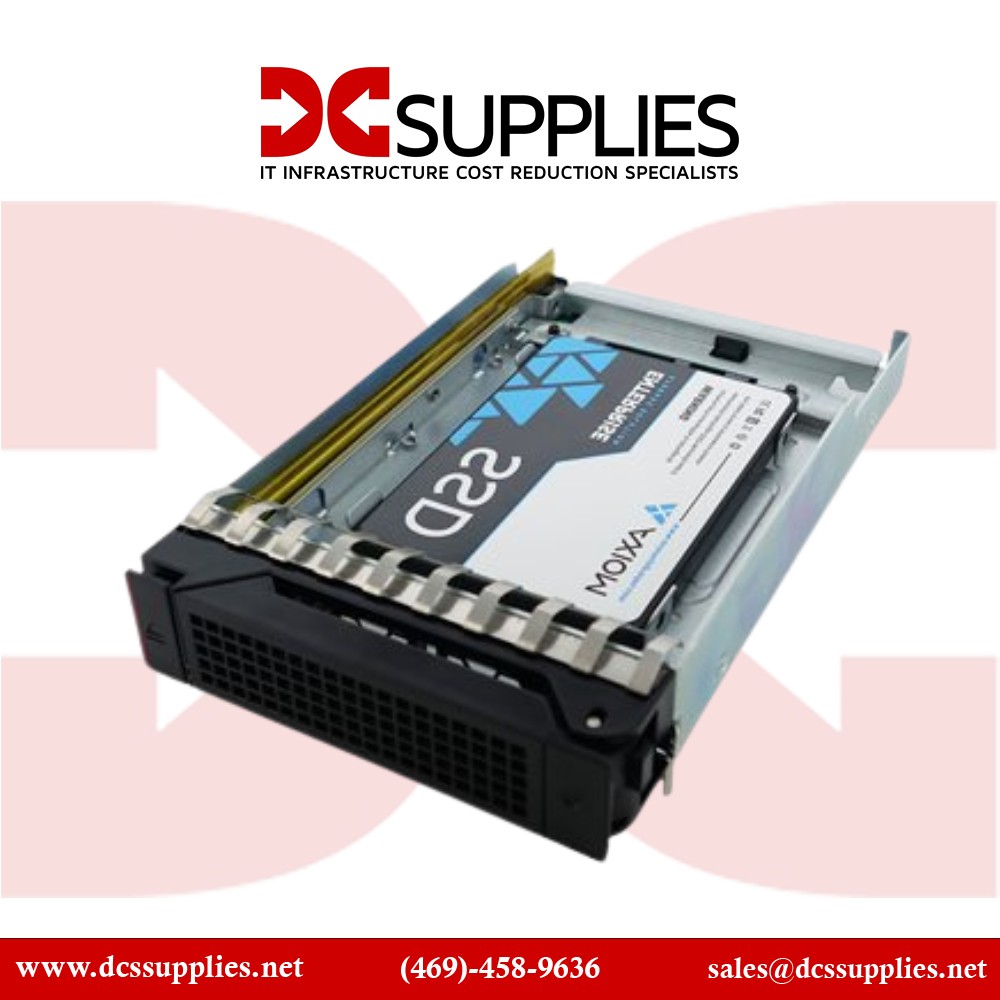

Axiom SSDEP40ID960-AX Enterprise Pro EP40 View larger

Axiom SSDEP40ID960-AX Enterprise Pro EP400 2.5" 960 GB Serial ATA III

SSDEP40ID960-AX

New

Axiom SSDEP40ID960-AX Enterprise Pro EP400 2.5" 960 GB Serial ATA III

×




Detailed Specifications

Axiom SSDEP40ID960-AX Enterprise Pro EP400 2.5" 960 GB Serial ATA III

Description

The EP400 enterprise hot-swap solid state drive (SSD) delivers enhanced Write/Read IOPS performance for mission-critical applications. Utilizing 2-bit MLC NAND with Charge Trap Flash (CTF) technology combines high performance, unprecedented power efficiency, and superior data integrity for direct-attach storage solutions. Data center storage density requirements continue to accelerate and the EP400 enables organizations to transition to a leaner infrastructure model reducing total cost of ownership (TCO). Product Spotlight: - Low total cost of ownership (TCO) and better data center efficiency - Proven quality and reliability - Optimized for data center applications - 256-bit AES Encryption - Enhanced enterprise endurance with 6.4 Drive Writes Per Day (DWPD) - Sustained Read/Write IOPS up to 97K/29K - Lifetime Endurance – Up to 6.16 Petabytes Written Product Features: - 2-bit MLC V-NAND - Built for sustained performance with low I/O latency and strong I/O consistency - Enhanced power-loss protection and power failure protection - Temperature sensor and dynamic thermal monitoring - Low power consumption - Enhanced end-to-end data protection - Innovative flash endurance and data integrity protection platform Specialized for the following workloads: - Low latency and high Quality of Service (QoS) applications and databases - On-Line Transactional Process (OLTP) - Data Warehousing - Customer Relationship Management (CRM) - Media editing and delivery - OpenStack cloud computing platforms - Virtualized environments (VDI) - E-Commerce, micropayments

Specifications

Hard drive
SSD capacity 960 GB
Internal Yes
Data transmission
Read speed 520 MB/s
Write speed 485 MB/s
Random write (4KB) 28000 IOPS
Random read (4KB) 97000 IOPS
Data transfer rate 6 Gbit/s
Design
Internal Yes
Component for Server/workstation
Product colour Black
SSD form factor 2.5"
Security
Security algorithms 256-bit AES
Endurance
Mean time between failures (MTBF) 2000000 h
Performance
Interface Serial ATA III
Component for Server/workstation
TBW rating 6160
End-to-End Data Protection Yes
Hot-swap Yes
SSD capacity 960 GB
Security algorithms 256-bit AES
Read speed 520 MB/s
Write speed 485 MB/s
Random write (4KB) 28000 IOPS
Random read (4KB) 97000 IOPS
Mean time between failures (MTBF) 2000000 h
Data transfer rate 6 Gbit/s
Features
Interface Serial ATA III
Component for Server/workstation
TBW rating 6160
End-to-End Data Protection Yes
Hot-swap Yes
SSD capacity 960 GB
Security algorithms 256-bit AES
Read speed 520 MB/s
Write speed 485 MB/s
Random write (4KB) 28000 IOPS
Random read (4KB) 97000 IOPS
Mean time between failures (MTBF) 2000000 h
Data transfer rate 6 Gbit/s
SSD form factor 2.5"
Power
Power consumption (write) 4.1 W
Power consumption (idle) 1.3 W
Operating voltage 5 V
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Operating shock 1500 G
Maximum operating altitude 120000" (3048 m)
Technical details
Interface Serial ATA III
Hot-swap Yes
Operating temperature (T-T) 0 - 70 °C
Operating shock 1500 G
Maximum operating altitude 120000" (3048 m)
Product colour Black
SSD form factor 2.5"
Sustainability certificates RoHS
Other features
Product colour Black
Internal Yes
