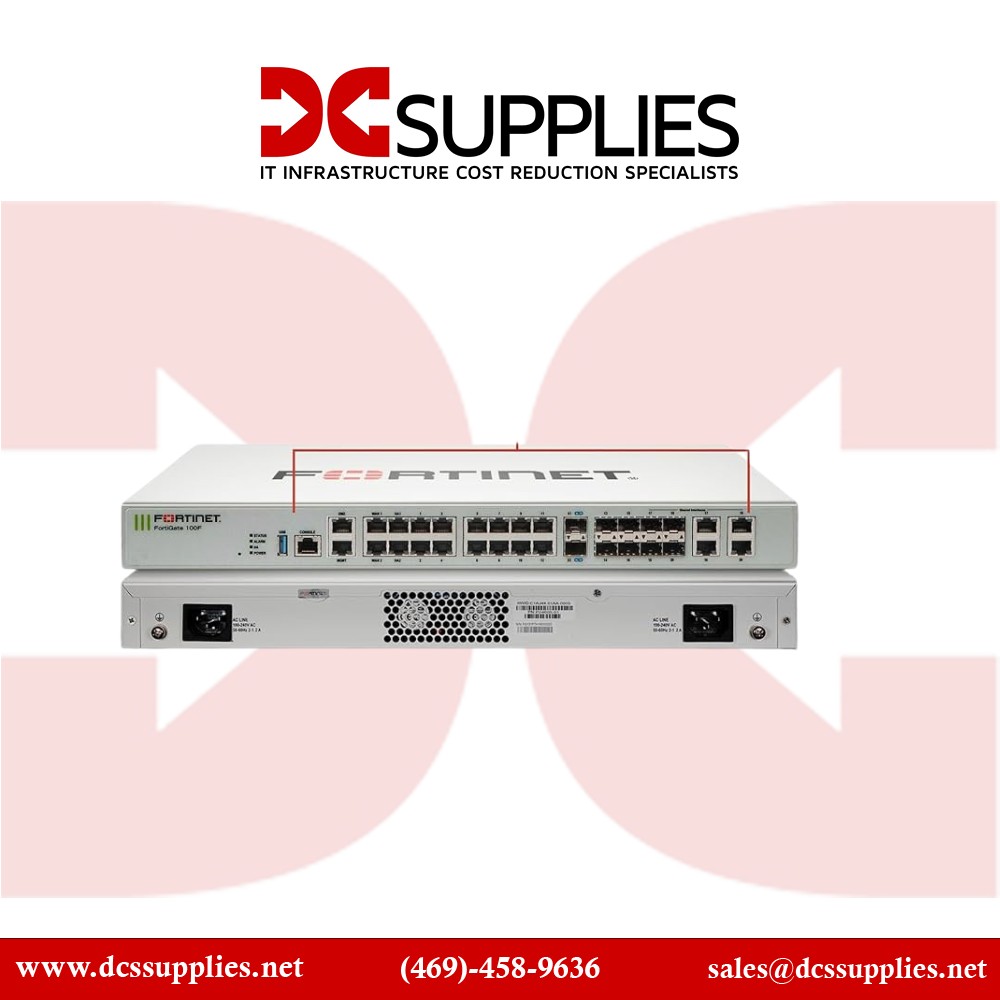

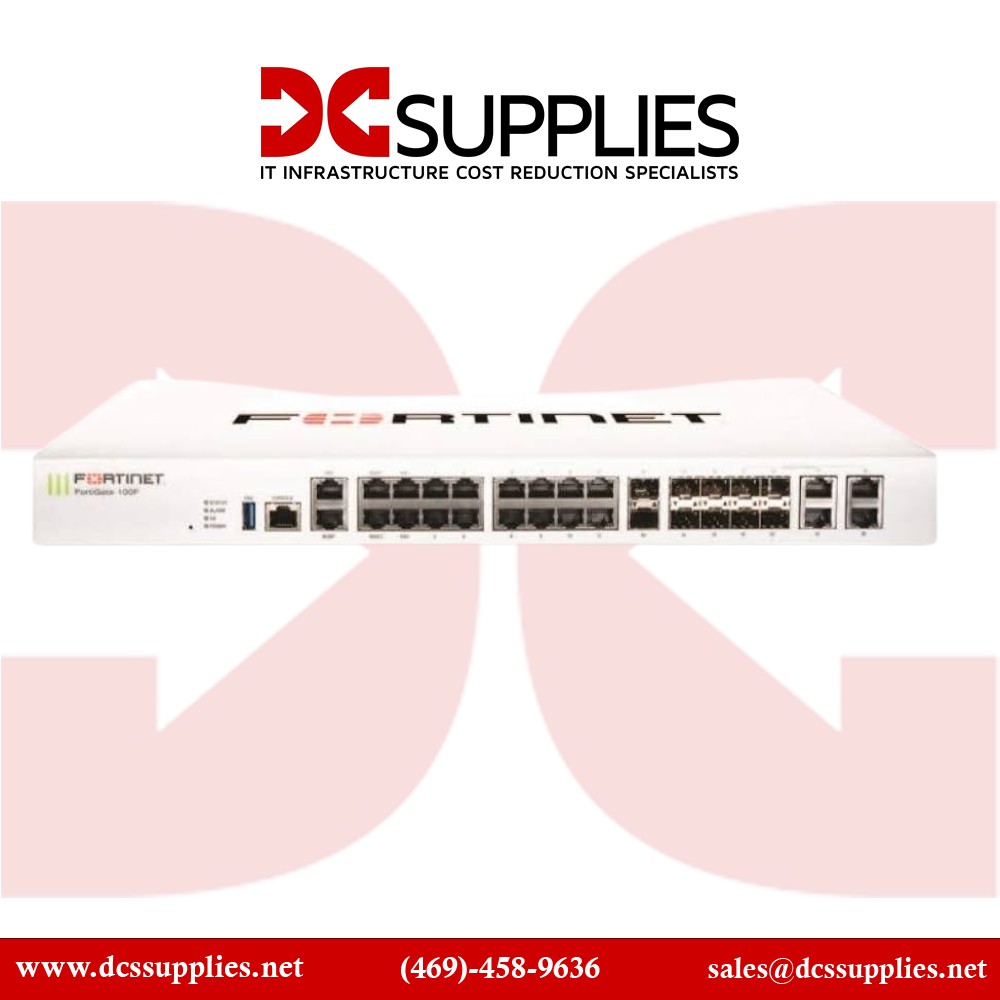

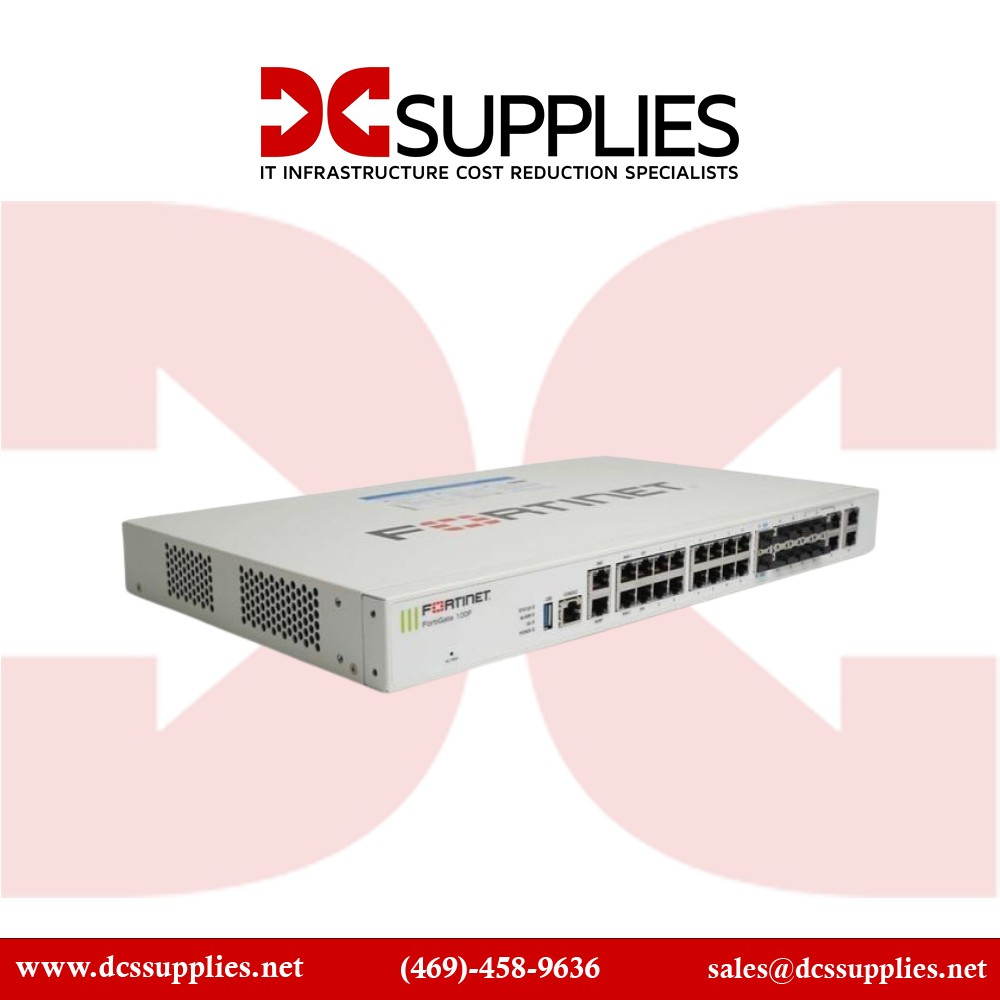

Fortinet FG-100F 100F hardware firewall View larger

Fortinet FG-100F 100F hardware firewall

FG-100F

New

In Stock

22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared...

×




$1,950.00

Detailed Specifications

Overview :

The FortiGate 100F series delivers next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with high-powered security processors for optimized network performance, security efficacy and deep visibility. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Specifications :

Technical details
Rack mounting Yes
Form factor 1U
Heat dissipation 119.77 BTU/h
Harmonized System (HS) code 85176990
Data transmission
Firewall throughput 20000 Mbit/s
IPS/IDS throughput 2600 Mbit/s
SSL inspection throughput 1000 Mbit/s
Security policies (max) 10000
Firewall latency 5 µs
Firewall throughput 15 Mpps
IPSec VPN throughput 11.5 Gbit/s
Firewall throughput 20 Gbit/s
Performance
Noise level 40.4 dB
Heat dissipation 119.77 BTU/h
Network
Active TCP connections (max) 56000
Concurrent SSL/VPN connections (maximum) 16000
Concurrent SSL/VPN connections (default) 135000
Security
Domains quantity 10
Management features
LED indicators Yes
Ports & interfaces
SFP+ module slots quantity 2
SFP module slots quantity 4
Connectivity technology Wired
USB 2.0 ports quantity 1
WAN connection Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports 12
Ethernet DMZ ports quantity 2
Ethernet LAN data rates 10,100,1000 Mbit/s
Console port RJ-45
Combo SFP ports quantity 4
Number of console ports 1
Sound emission
Noise level 40.4 dB
Design
Rack mounting Yes
Form factor 1U
Power
AC input frequency 50 - 60 Hz
Input current 0.5 A
Power consumption (typical) 35.1 W
Redundant power supply (RPS) support Yes
Number of power supply units 2
Power consumption (max) 38.7 W
Features
SSL inspection throughput 1000 Mbit/s
Logistics data
Harmonized System (HS) code 85176990
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -35 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Operating altitude 0 - 88582.7" (0 - 2250 m)
Weight & dimensions
Width 17" (432 mm)
Depth 0.984" (25 mm)
Height 1.73" (44 mm)
Other features
Firewall throughput 20000 Mbit/s
