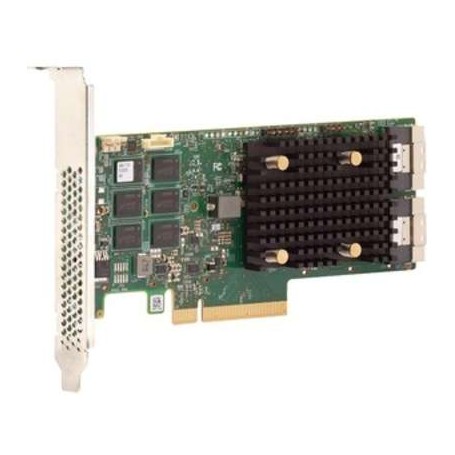

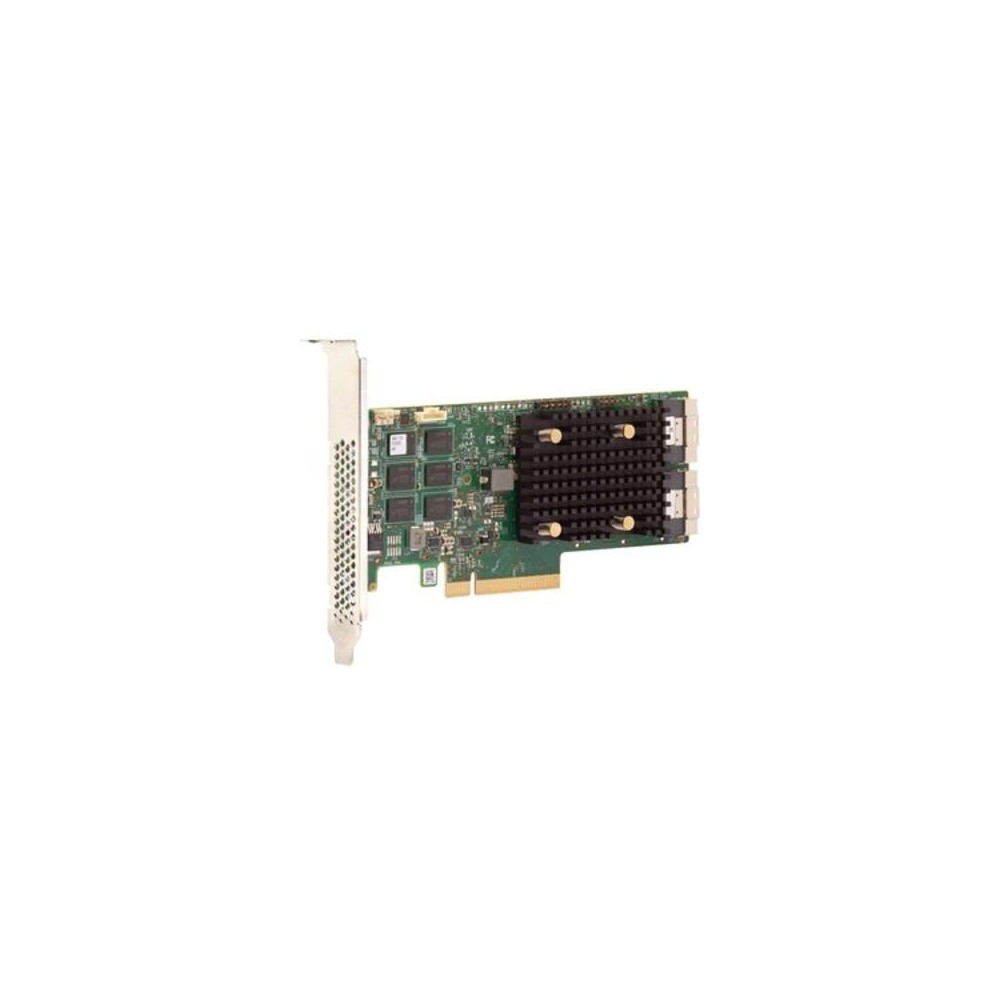

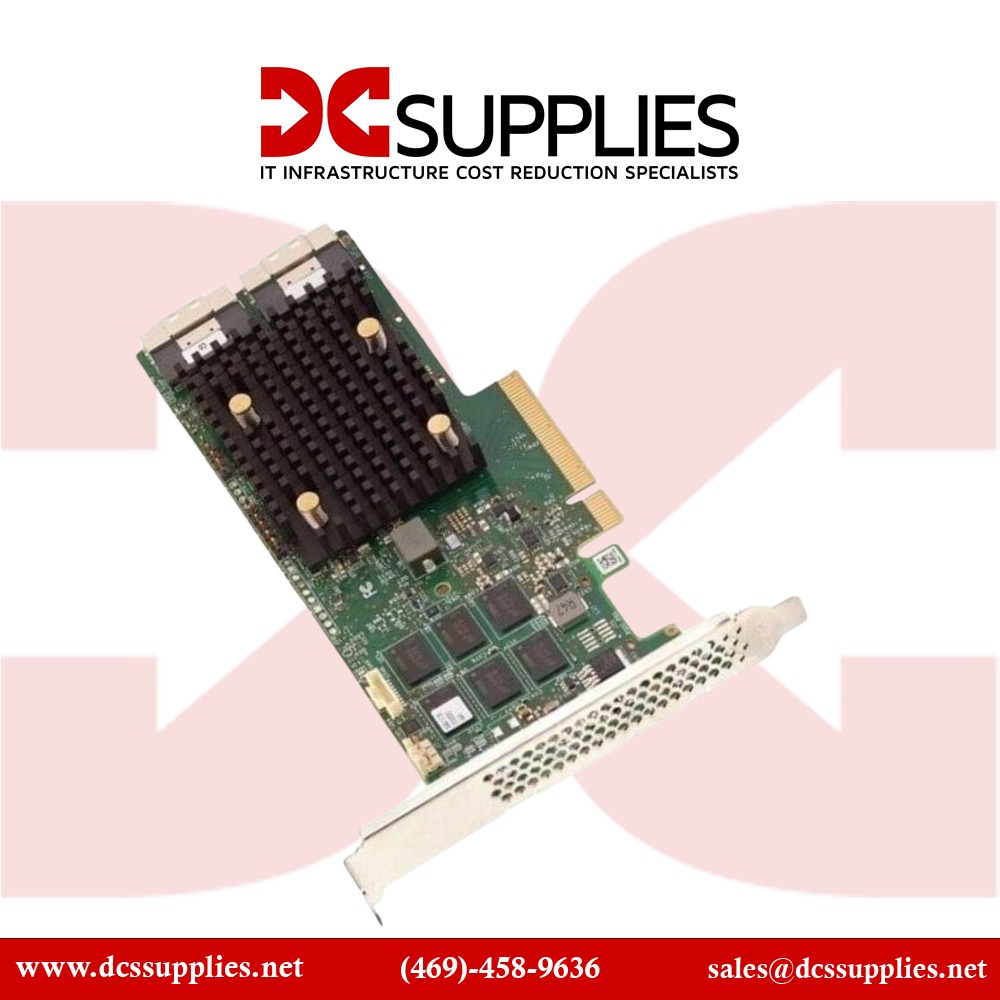

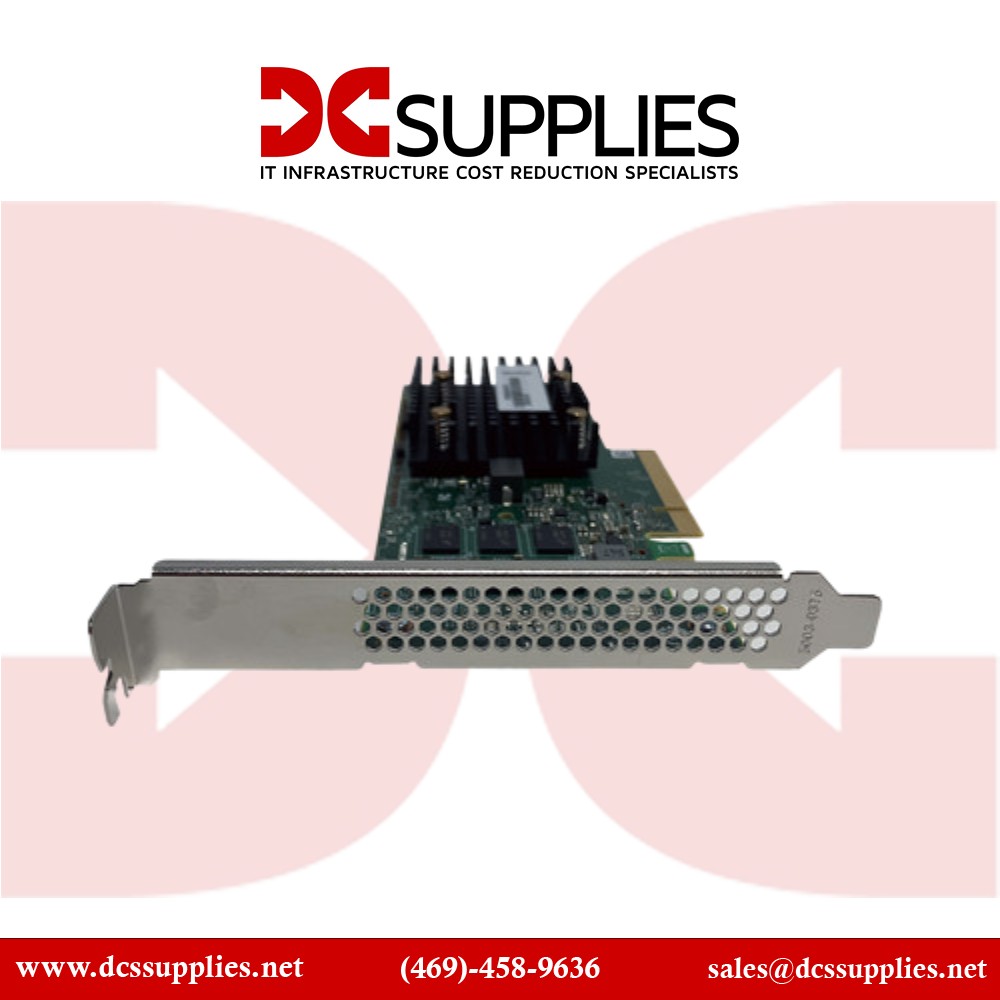

HPE P26324-B21 MegaRAID MR216i-p Pcie Storage Controller. View larger

HPE P26324-B21 MegaRAID MR216i-p Pcie Storage Controller.

P26324-B21

New

HPE P26324-B21 MegaRAID MR216i-p Pcie Storage Controller.
×




Detailed Specifications

HPE P26324-B21 MegaRAID MR216i-p Pcie Storage Controller.

Overview:

Key Features | Powerful Performance

Broadcom MegaRAID P26324-B21 Storage Controllers for HPE Gen10 Plus feature Broadcom MR416i and Broadcom MR216i controllers with impressive performance including up to 13,700 Mbs of bandwidth, 3M random read IOPS, and 240K RAID5 random write IOPS.

2nd Generation Tri-Mode SerDes

Broadcom P26324-B21 MegaRAID Storage Controllers for HPE Gen10 Plus is enabled with SerDes for exceptional support of NVMe4/SAS3/SATA protocols.

With Tri-Mode support, achieve the scalability and flexibility you need for shifting business environments.

Enhanced Security

Broadcom P26324-B21 MegaRAID Storage Controllers for HPE Gen10 Plus is built with the HPE Silicon Root of Trust for firmware authentication and support for self-encrypting drives to help ensure protection for data at rest and prevention of malware.

Software Supported

Broadcom P26324-B21 MegaRAID Storage Controllers for HPE Gen10 Plus support all major OS's including but not limited to Windows, Linux®, and VMware®, full tool suite including command line interface, web-based management, and out-of-band management support.

Specifications:

Product Name MR216I-P GEN10+ Control
Manufacturer Part Number P26324-B21
Product Type SAS Controller
RAID Supported Yes
Total Number of SAS Ports 16
Form Factor Plug-in Card
Device Supported Server
RAID Levels 0

1

10
Controller Type 12Gb/s SAS
Host Interface PCI Express 4.0 x16
Number of SAS Ports (Internal) 16
Cache Memory No
Product Model MR216i-p
Product Line MegaRAID
Platform Supported PC
