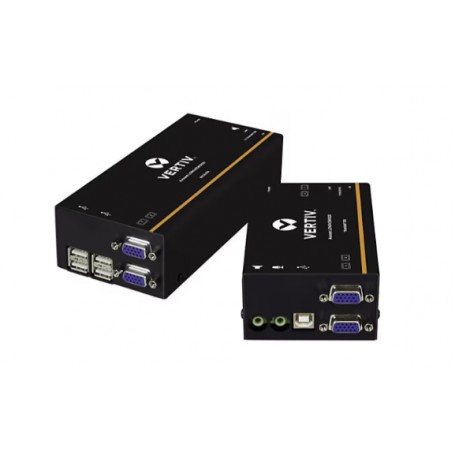

Vertiv LV3020P-001 LongView 3000 Series - KVM / audio / USB extender View larger

Vertiv LV3020P-001 LongView 3000 Series - KVM / audio / USB extender

LV3020P-001

New

In Stock

Vertiv LV3020P-001 LongView 3000 Series - KVM / audio / USB extender
×




$2,249.99

Detailed Specifications

Vertiv LV3020P-001 LongView 3000 Series - KVM / audio / USB extender

Overview :

The Vertiv Avocent LongView 3000 (LV3000) High-Performance KVM Extender Kit enables you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.

Features :

  • DIGITAL EXTENSION TECHNOLOGY: Allows the computer and user to be located up to 1000 feet from the source.
  • PRECISION VIDEO: VGA resolutions of 1920 x 1200 are achievable at up to 300 meters (1000ft).
  • USB POWERED TRANSMITTER: The transmitter is powered via its USB port to reduce the need for external supplies. There is an option for an external power supply if the USB port has insufficient power.
  • STEREO CD QUALITY: Stereo channel 16 bit (sampled at 44.1kHz) is available to transfer audio from local to remote for line out.
  • RACK OPTION: Both transmitter and receiver units can be used stand-alone or up to 16.

Specifications :

Product Name Longview Dual VGA USB Audio Catx 300M
Manufacturer Part Number LV3020P-001
Product Type KVM Console/Extender
Maximum Video Resolution 1920 x 1200
Maximum Operating Distance 1000 ft
USB Yes
VGA Yes
Product Family LV 3000
Number of Computers Supported 1
Number of Remote Users Supported 1
Device Type KVM Extender
Connectivity Technology Wired
Input Voltage Range 120V AC to 230V AC
Form Factor Rack-mountable
Graphic Mode WUXGA
Number of USB Ports 4
Number of VGA Ports 2
Transmitter Height 2"
Transmitter Width 6.40"
Transmitter Depth 3"
Receiver Height 2"
Receiver Width 6.40"
Receiver Depth 3"
Transmitter Weight (Approximate) 3.09 lb
Receiver Weight (Approximate) 3.09 lb
Country of Origin United Kingdom
Product Series 3000
Product Model LV3020
Power Consumption 12 W
Product Line LV
Input Voltage 120 V AC 240 V AC
Packaged Quantity 1
Platform Supported PC
Limited Warranty 2 Year
