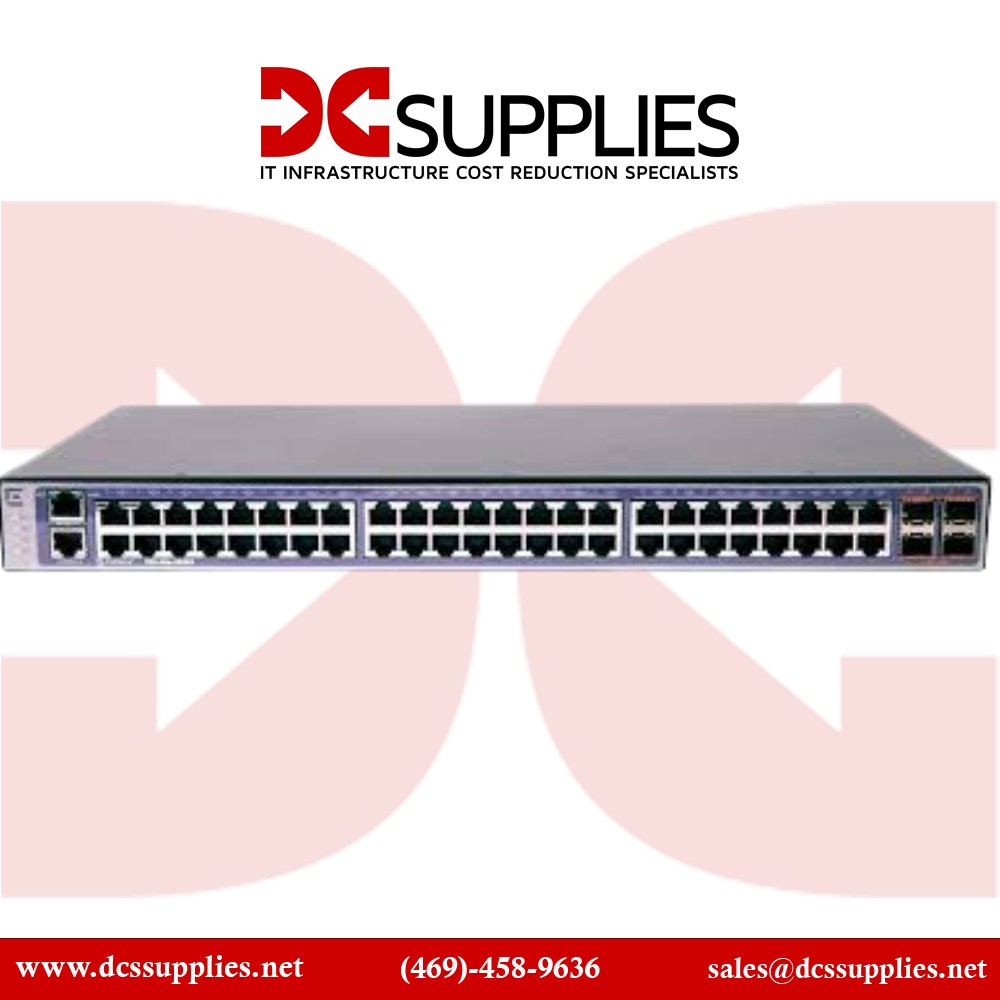

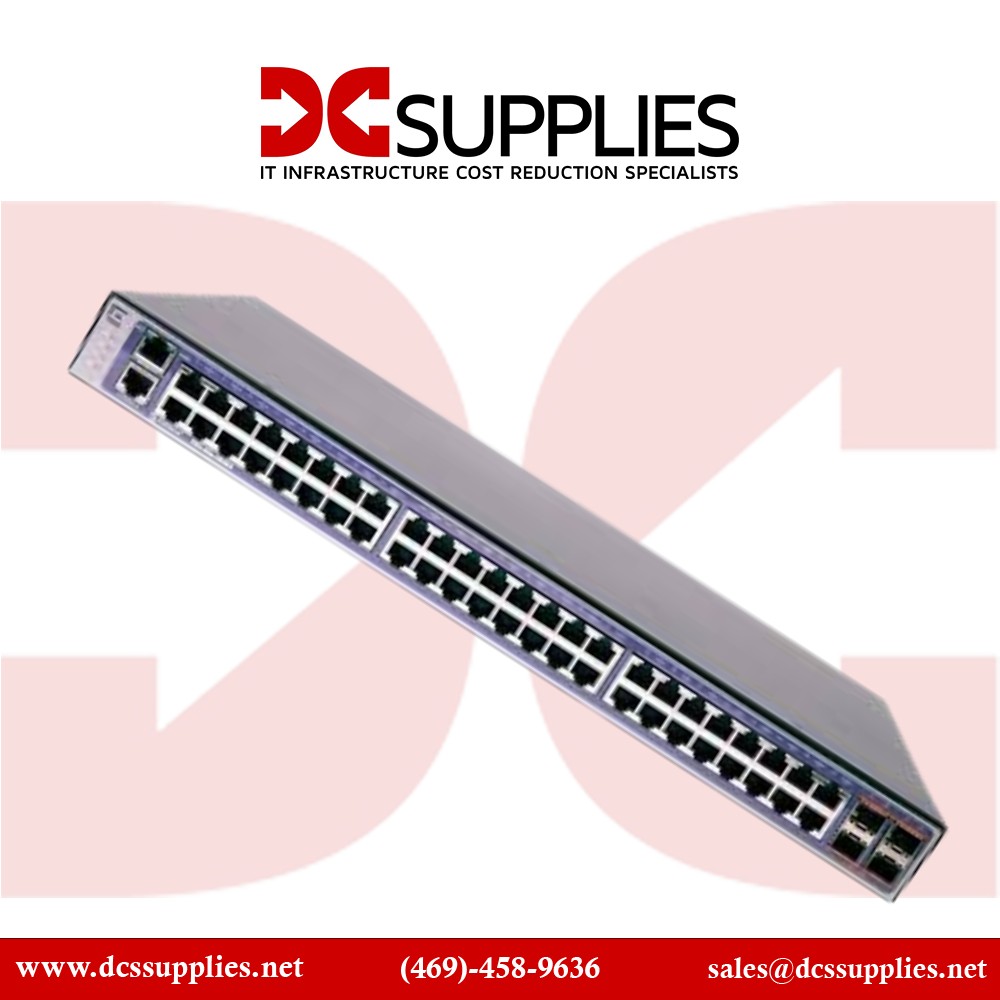

Extreme Networks 16565 220-48p-10GE4 Layer 3 Switch View larger

Extreme Networks 16565 220-48p-10GE4 Layer 3 Switch

16565

New

Extreme Networks 16565 220-48p-10GE4 Layer 3 Switch
×




Detailed Specifications

Extreme Networks 16565 220-48p-10GE4 Layer 3 Switch

Overview :

The ExtremeSwitching 220 Series is an economical, fixed-configuration family of Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution.

The series consists of six switches including 12-, 24-, and 48-port Gigabit Ethernet switches and 12-, 24-, and 48-port Gigabit PoE+ models. All models provide non- blocking Gigabit per port performance and include either 2 or 4 SFP+ ports for high-speed 10Gbps fiber connectivity. In addition, the 12-port PoE+ and non-PoE+ models can operate in fanless mode, making them ideal for office deployments. In addition to a rich Layer 2 feature set, the 220 Series offers dynamic IPv4 RIP routing services, stacking of up to 4 switches with single IP management, and redundant power supply option.

Specifications :

Product Name ExtremeSwitching 220 Series 220-48p-10GE4 Switch - 48 Port - Managed - Rack-Mountable
Manufacturer Part Number 16565
Product Type Layer 3 Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet

10 Gigabit Ethernet
Number of Total Expansion Slots 4
Product Family 220
Stack Port Yes
Media Type Supported Optical Fiber

Twisted Pair
Total Number of Network Ports 48
Redundant Power Supply Supported Yes
Expansion Slot Type SFP+
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Number of SFP+ Slots 4
Modular Yes
Uplink Port No
Shared SFP Slot No
Port / Expansion Slot Details 48 x Gigabit Ethernet Network

4 x 10 Gigabit Ethernet Expansion Slot
Height 1.7"
Width 17.4"
Depth 10"
Product Series 220
Product Model 220-48p-10GE4
Network Technology 10/100/1000Base-T

10GBase-X
Limited Warranty Lifetime
