HPE JL823A 5140 24G PoE+ 2SFP+ 2XGT Ei Software Us EN View larger

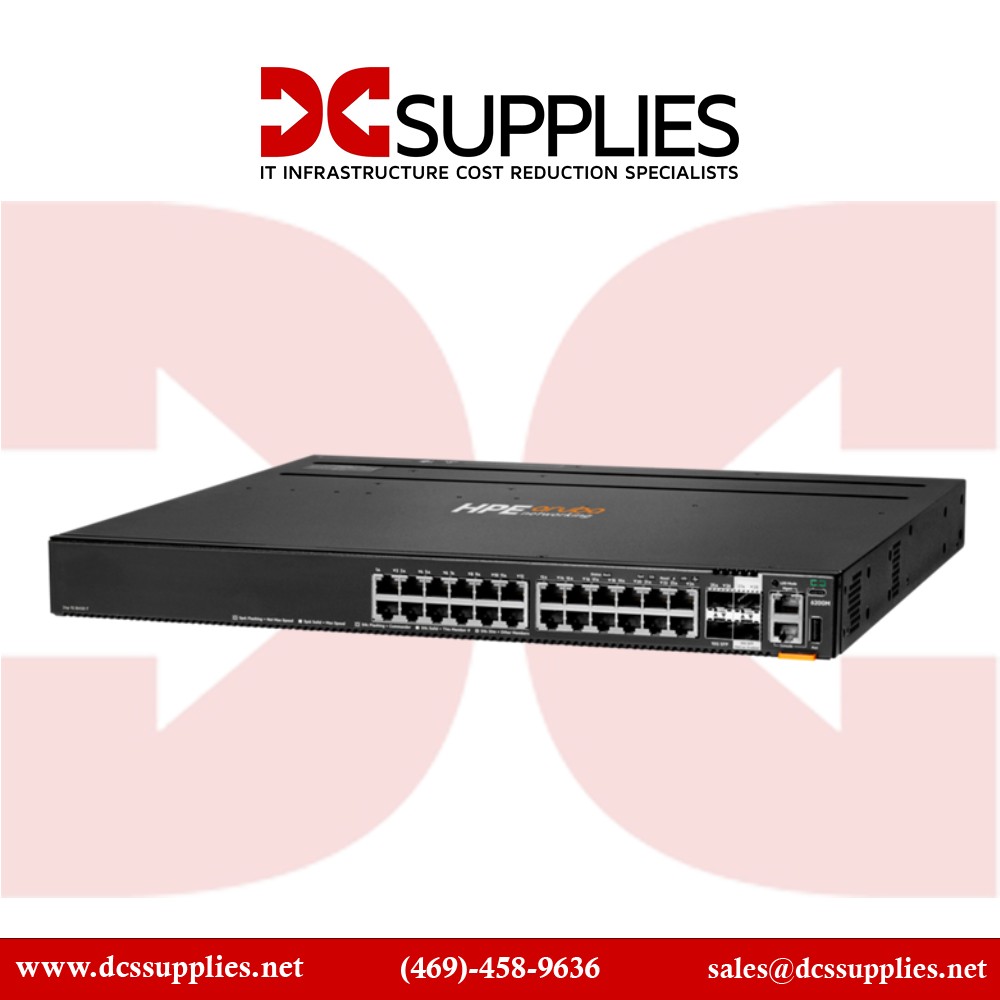

HPE JL823A FlexNetwork PoE+2SFP+2XGT EI Ethernet Switch 26 Port

JL823A

New

HPE JL823A: 26-port PoE+ Ethernet switch with 2 SFP+ and 2 XGT uplinks for reliable and scalable networking
×




Detailed Specifications

HPE JL823A Ethernet Switch 26 Port

Overview :

The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF, and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, and IPv6, and deliver energy savings with Energy-Efficient Ethernet.

Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, increasing network resilience, performance, and availability while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.

High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

Specifications :

Product Name 5140 24G PoE+ 2SFP+ 2XGT Ei Software Us EN
Manufacturer Part Number JL823A#ABA
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet

10 Gigabit Ethernet
Product Family FlexNetwork 5140 EI
Media Type Supported Optical Fiber

Twisted Pair
Total Number of Network Ports 26
PoE (RJ-45) Port Yes
Total Number of Expansion Slots 2.0
Redundant Power Supply Supported Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Waste Electrical and Electronic Equipment Directive (WEEE)
Expansion Slot Type SFP+
Form Factor Rack-mountable

Cabinet Mount
Power Consumption 24.50 W
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Compatible Rack Unit 1U
Network (RJ-45) Yes
Number of SFP+ Slots 2
Modular Yes
Uplink Port Yes
Port / Expansion Slot Details 24 x Gigabit Ethernet PoE+

2 x 10 Gigabit Ethernet Network

2 x 10 Gigabit Ethernet Expansion Slot
PoE Budget 370 W
Product Color Black
Height 1.7"
Width 17.3"
Depth 12.6"
Product Series 5140 EI
Product Model 5140 24G PoE+ 2SFP+ 2XGT EI
Network Technology 10/100/1000Base-T

10GBase-X

10GBase-T
Product Line FlexNetwork
Input Voltage 120 V AC

230 V AC
Limited Warranty Lifetime
Color Family Black
Frequency 50 Hz

60 Hz
Application / Usage Data Center
