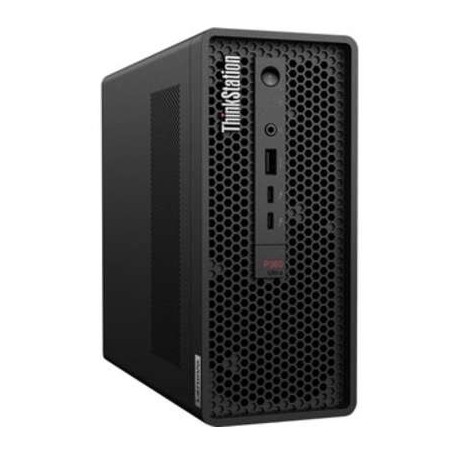

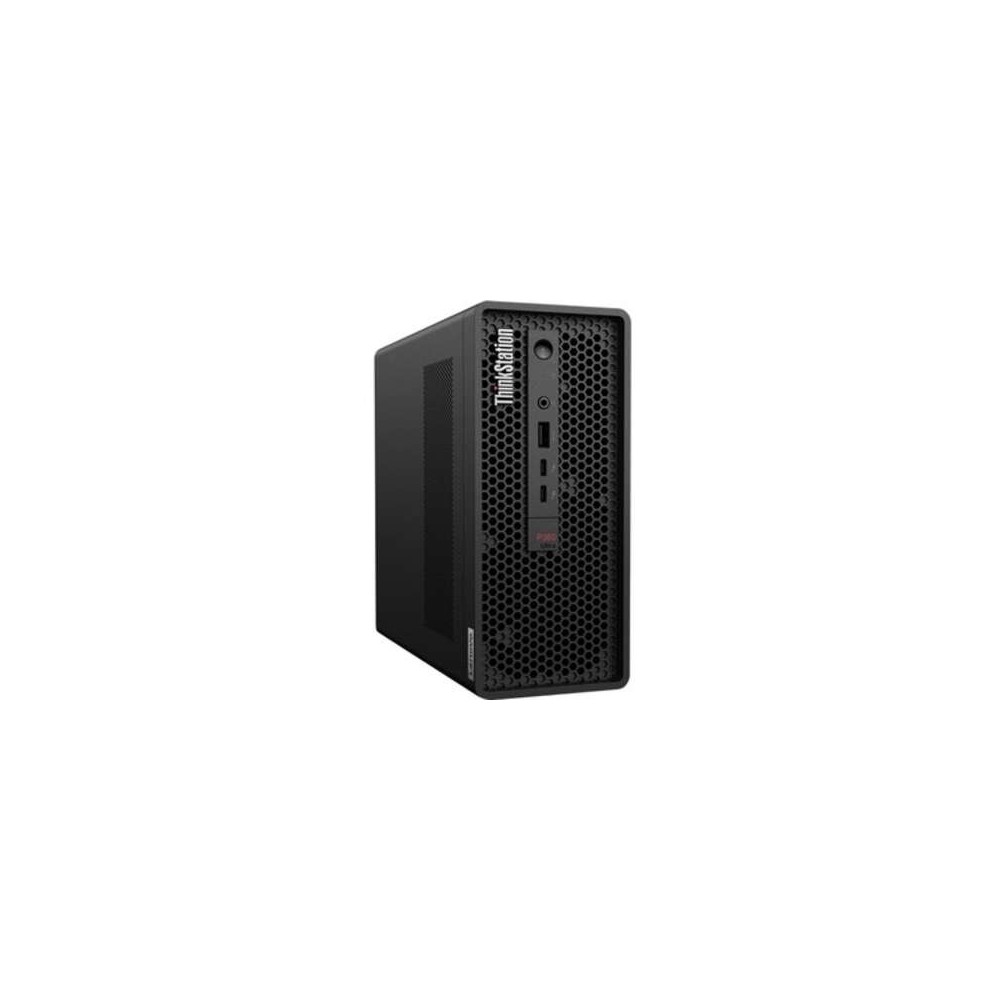

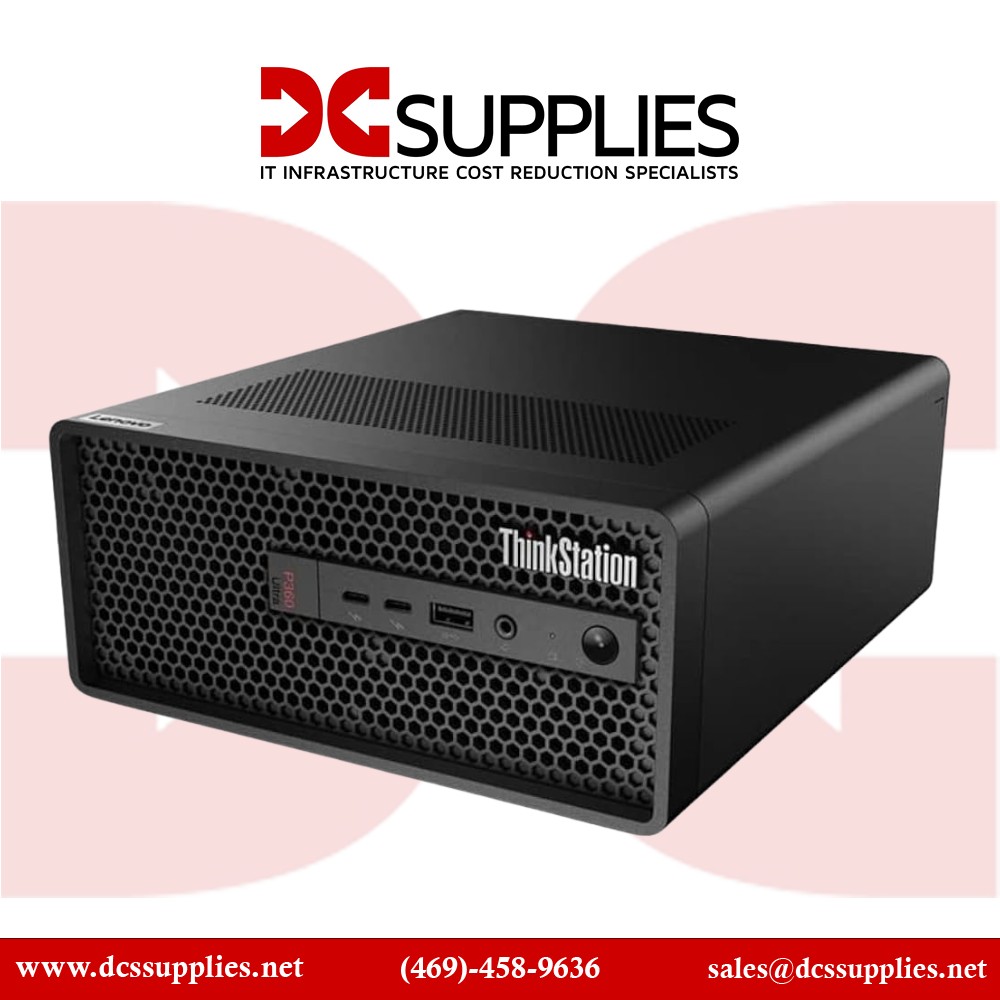

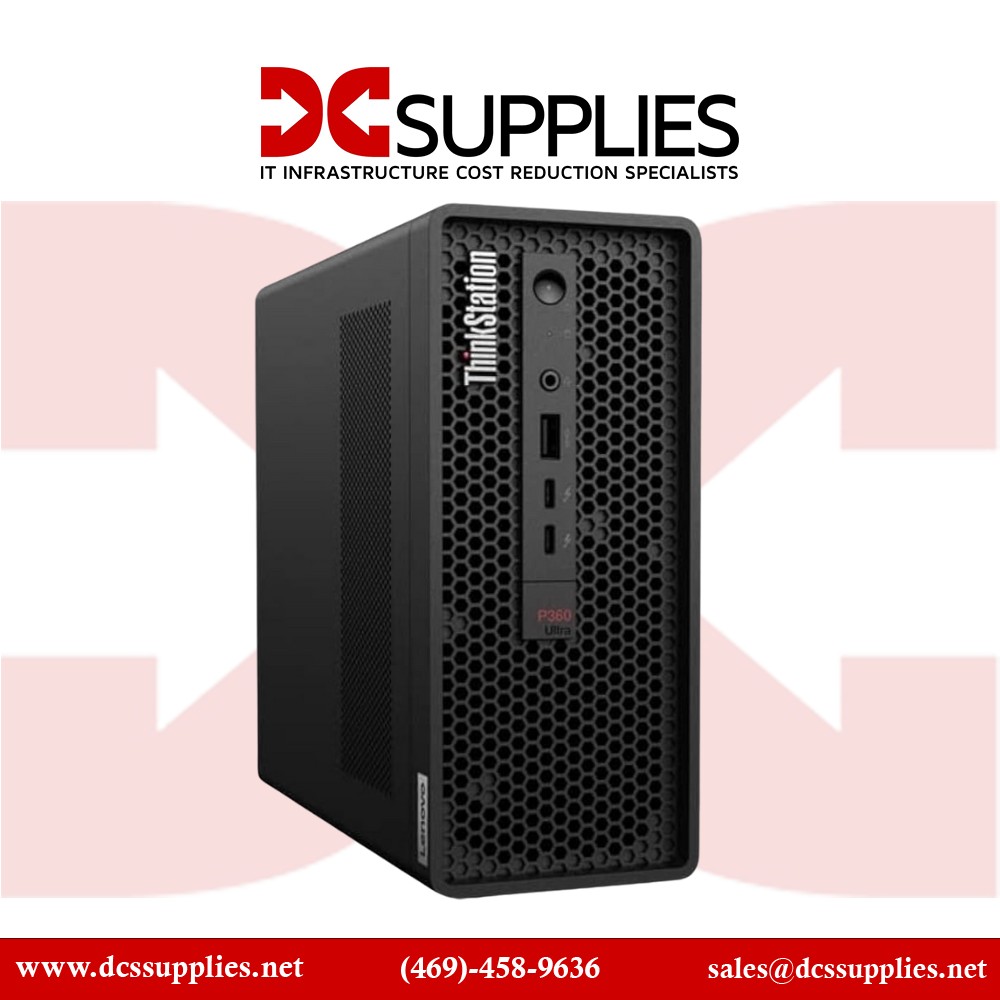

Lenovo 30G10014US ThinkServer P360 Ultra Core I9-12900 2.4G 16GB 512GB SSD W11P View larger

Lenovo 30G10014US ThinkServer P360 Ultra Core I9-12900 2.4G 16GB 512GB SSD W11P

30G10014US

New

Lenovo 30G10014US ThinkServer P360 Ultra Core I9-12900 2.4G 16GB 512GB SSD W11P
×




Detailed Specifications

Lenovo 30G10014US ThinkServer P360 Ultra Core I9-12900 2.4G 16GB 512GB SSD W11P

Overview :

Redefines the power of small
At just 3.9 liters in volume, the ThinkStation P360 Ultra is like no other workstation. This revolutionary new form factor sits in a class of its own—it’s small enough to carry conveniently between home and office, yet it’s packed with performance so powerful it supports 8 independent displays. What’s more, flexible configurations boast 7 USB ports and 3 DisplayPorts. Talk about an industry first!

Specifications

Processor
Processor Generation 12th gen Intel® Core™ i9
Bus type DMI4
Processor cache 30 MB
Processor model i9-12900
Number of processors installed 1
Processor manufacturer Intel
Processor boost frequency 5.1 GHz
Processor cores 16
Processor family Intel® Core™ i9
Memory
Non-ECC Yes
Internal memory 16 GB
Maximum internal memory 128 GB
Memory slots 4x DIMM
Internal memory type DDR5-SDRAM
Memory clock speed 4800 MHz
Memory channels Dual-channel
Storage
Storage media SSD
Number of storage drives installed 1
Optical drive type No
SSD interface NVMe, PCI Express 4.0
SSD capacity 512 GB
Number of SSDs installed 1
Card reader integrated No
Total storage capacity 512 GB
SSD form factor M.2
Total SSDs capacity 512 GB
NVMe Yes
Graphics
Discrete graphics card Yes
Discrete graphics card memory 8 GB
Graphics card Mini DisplayPort ports quantity 4
On-board graphics card Yes
Discrete graphics card model NVIDIA Quadro T1000
Discrete graphics memory type GDDR6
On-board graphics card model Intel UHD Graphics 770
Number of discrete graphics cards 1
Discrete GPU manufacturer NVIDIA
Optical drive
Optical drive type No
Network
Ethernet LAN Yes
Wi-Fi Yes
Bluetooth Yes
Bluetooth version 5.2
Wi-Fi standards Wi-Fi 6E (802.11ax)
Ethernet LAN data rates 1000,2500 Mbit/s
Cabling technology 10/100/1000Base-T(X)
WLAN controller model Intel Wi-Fi 6E AX211
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Antenna type 2x2
WLAN controller manufacturer Intel

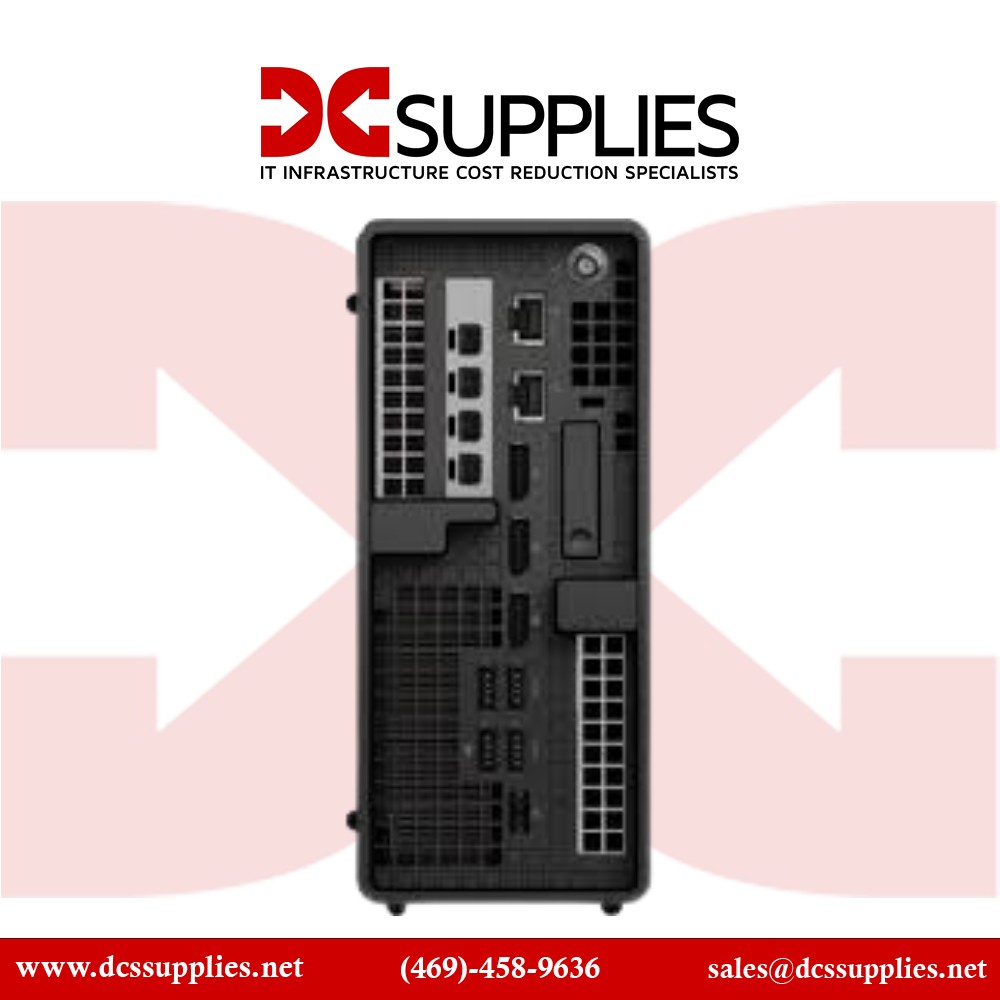

Ports & interfaces
Combo headphone/mic port Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
Ethernet LAN (RJ-45) ports 2
DisplayPorts quantity 3
DisplayPort version 1.2
Intel® Thunderbolt 4 Yes
Thunderbolt 4 ports quantity 2
Technical details
Intel 64 Yes
Cable lock slot type Kensington
Product type Workstation
Trusted Platform Module (TPM) Yes
Product colour Black
Chassis type Mini Tower
Audio system High Definition Audio
Placement supported Horizontal/Vertical
Cable lock slot Yes
Motherboard chipset Intel W680
Design
Volume 3.9 L
Cable lock slot type Kensington
Product colour Black
Chassis type Mini Tower
Placement supported Horizontal/Vertical
Cable lock slot Yes
Performance
Embedded options available No
Audio chip Realtek ALC897-Q
Number of speakers 1
Password protection Yes
Password protection type Power on, Supervisor
Product type Workstation
Trusted Platform Module (TPM) Yes
Audio system High Definition Audio
Built-in speaker(s) Yes
Motherboard chipset Intel W680
Software
Operating system language English
Operating system architecture 64-bit
Operating system installed Windows 11 Pro
Processor special features
Embedded options available No
Enhanced Intel SpeedStep Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Trusted Execution Technology Yes
Intel Stable Image Platform Program (SIPP) Yes
Idle States Yes
Execute Disable Bit Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
CPU configuration (max) 1
Intel Virtualization Technology (VT-x) Yes
Intel 64 Yes
Power
Power supply input voltage 100 - 240 V
Power supply 300 W
Operational conditions
Operating altitude 0 - 120000" (0 - 3048 m)
Storage temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 10 - 35 °C
Non-operating altitude 0 - 480000" (0 - 12192 m)
Certificates
Certification EPEAT Gold ENERGY STAR 8.0 TCO Certified 9.0 RoHS MIL-STD-810H ISV
Weight & dimensions
Volume 3.9 L
Width 3.39" (86 mm)
Depth 8.78" (223 mm)
Height 7.95" (202 mm)
Weight 7.94 lbs (3.6 kg)
Packaging content
Mouse included Yes
Display included No
Keyboard included Yes
Other features
Number of speakers 1
Trusted Platform Module (TPM) Yes
On-board graphics card Yes
Processor manufacturer Intel
Built-in speaker(s) Yes
