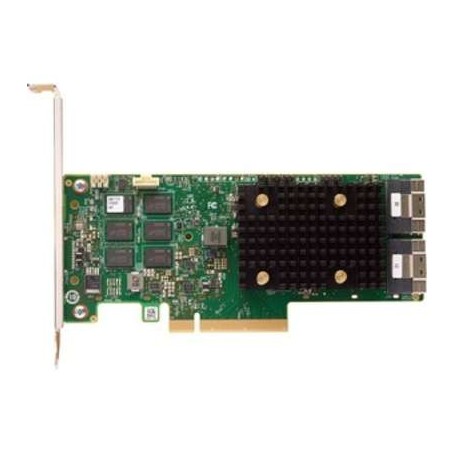

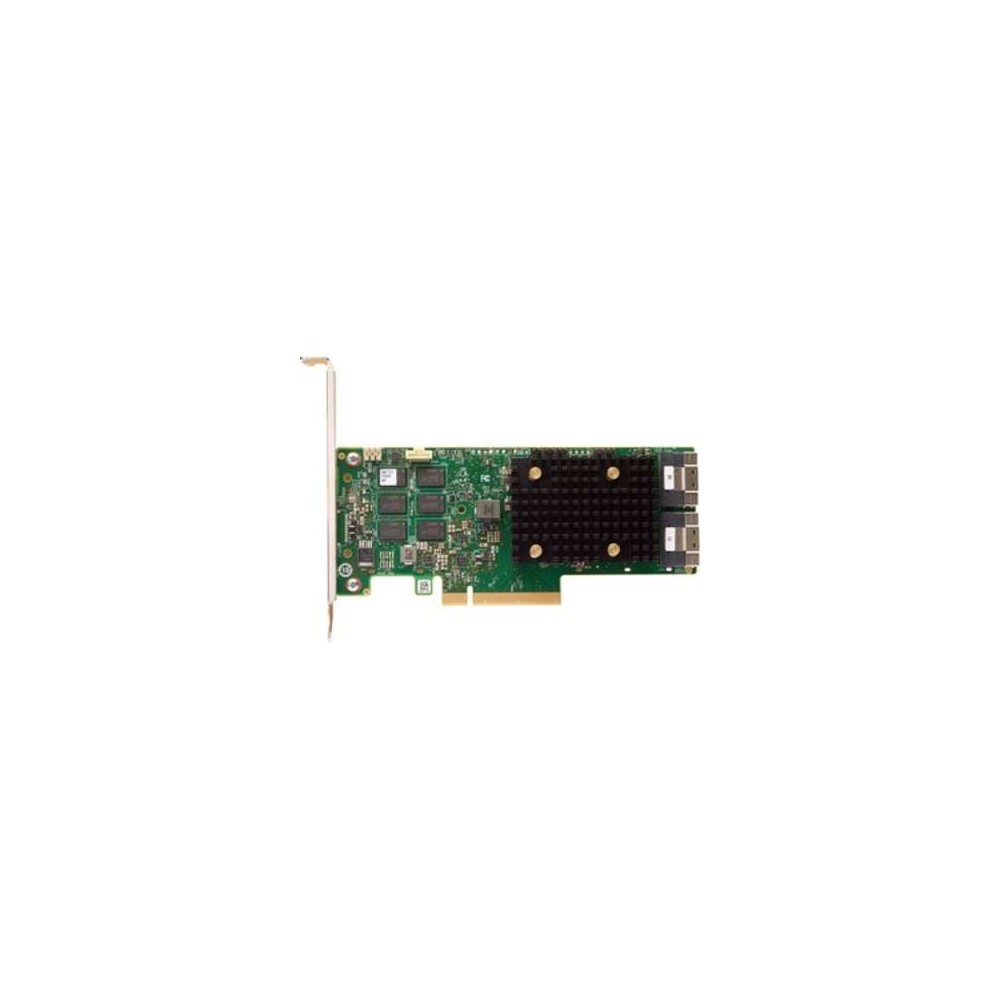

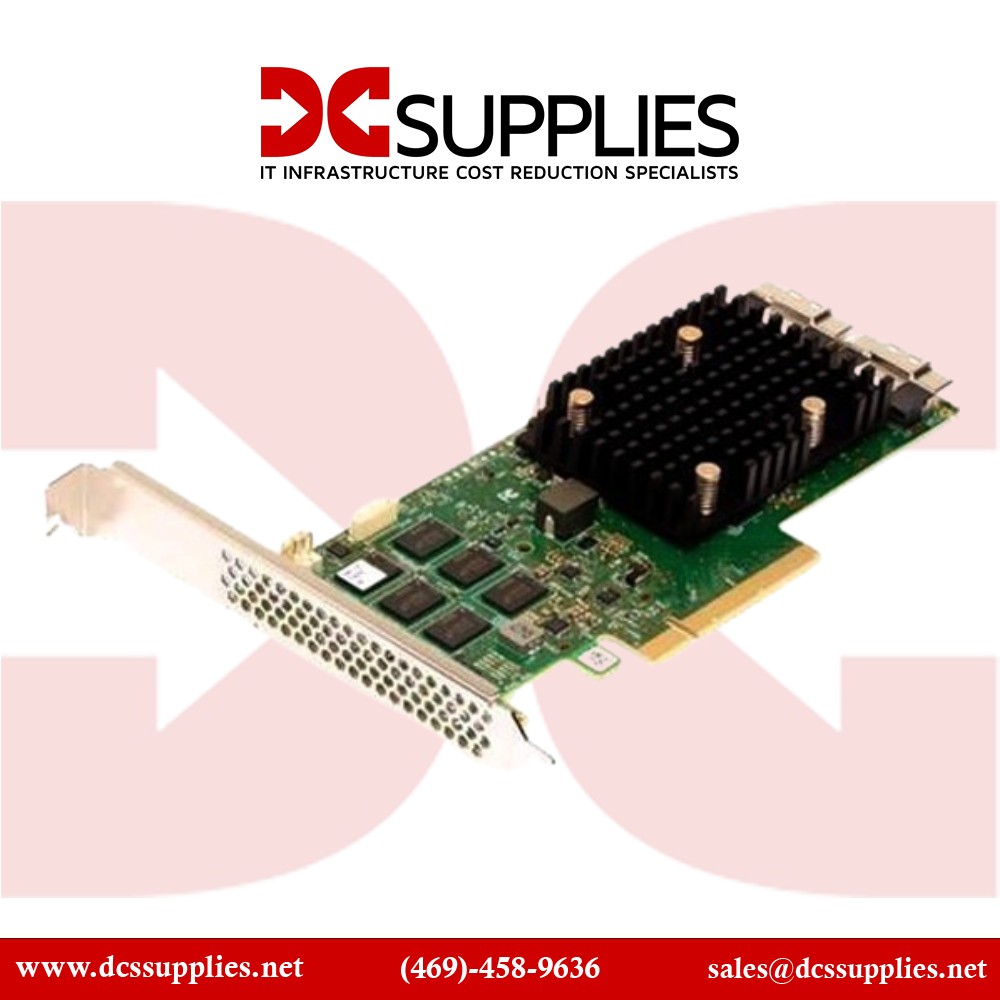

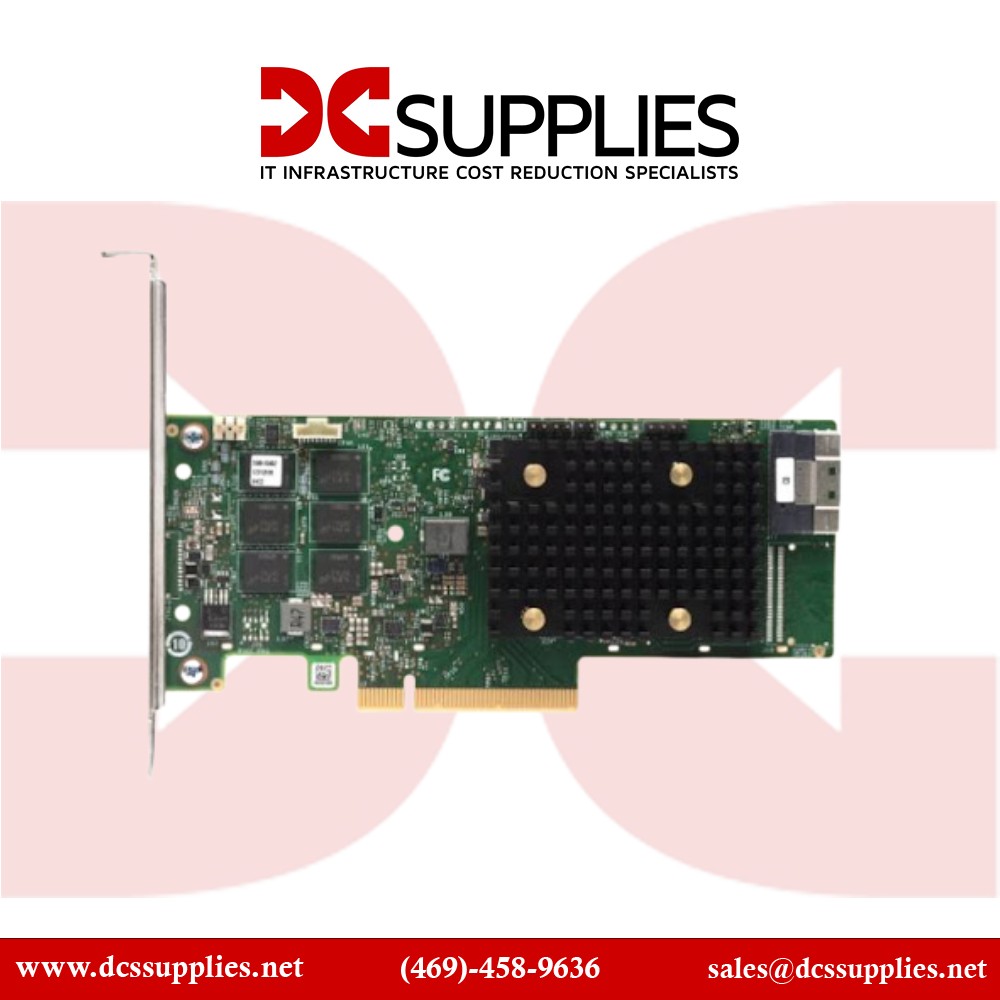

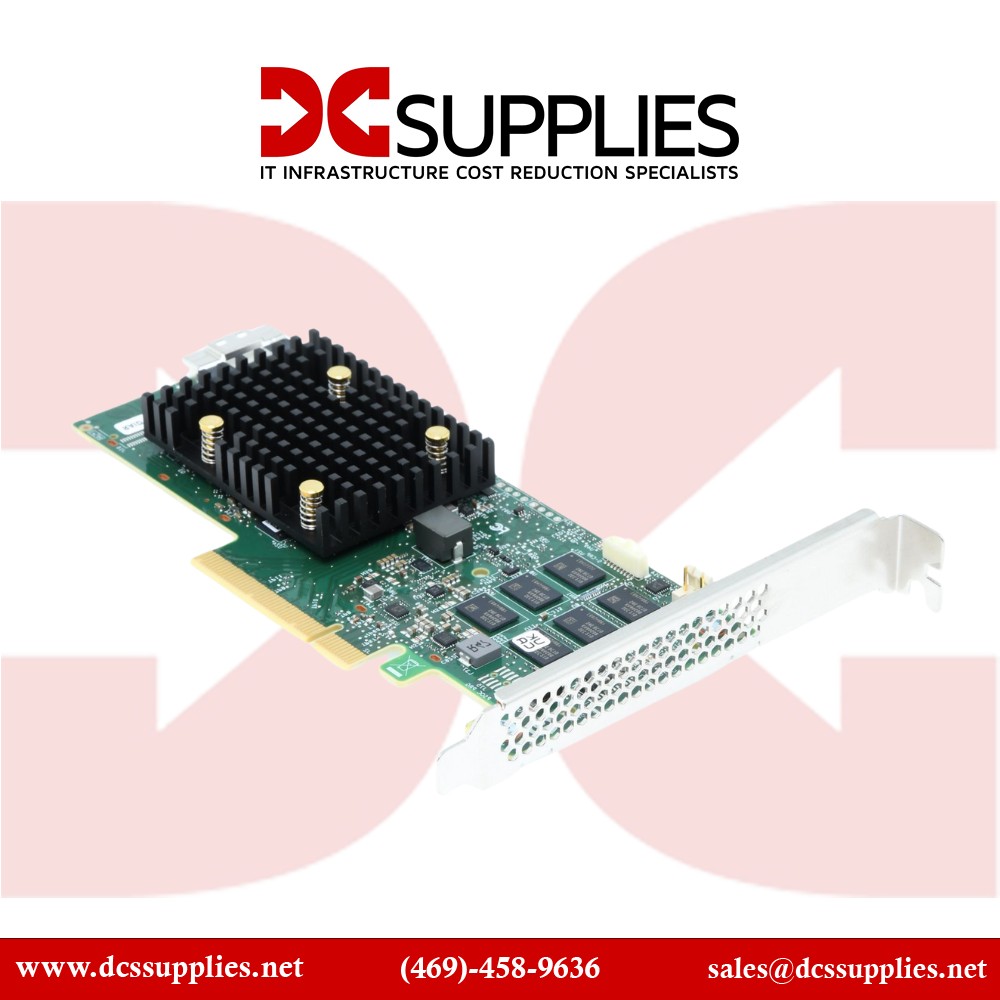

Lenovo 4Y37A78600 RAID 940-16I RAID controller PCI Adapter View larger

Lenovo 4Y37A78600 RAID 940-16I RAID controller PCI Adapter

4Y37A78600

New

Lenovo 4Y37A78600 RAID 940-16I RAID controller PCI Adapter
×




Detailed Specifications

Lenovo 4Y37A78600 RAID 940-16I RAID controller PCI Adapter

Description

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6, and 60, and include an extensive list of RAS and management features. This product guide provides essential presales information to understand the ThinkSystem RAID 940-8i, 16i, and 32i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

Specifications :

Ports & interfaces
Supported storage drive interfaces SAS, Serial ATA
Host interface PCI Express x4
PCI Express slots version 4.0
Performance
RAID levels 0, 1, 5, 10, 50, 60
SSD support Yes
RAID Level Migration Yes
Number of devices supported 16
Form factor Low-Profile MD2 PCIe AIC
Data transfer rate 12 Gbit/s
Harmonized System (HS) code 84733080
Design
Form factor Low-Profile MD2 PCIe AIC
Logistics data
Harmonized System (HS) code 84733080
