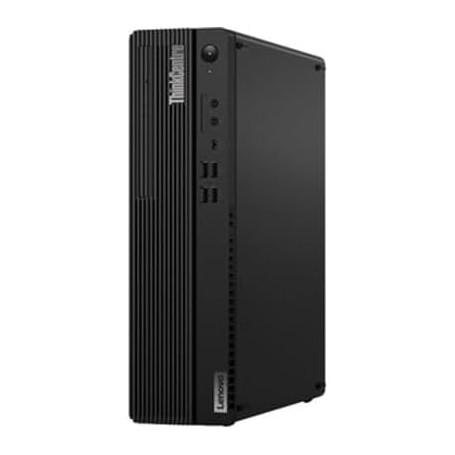

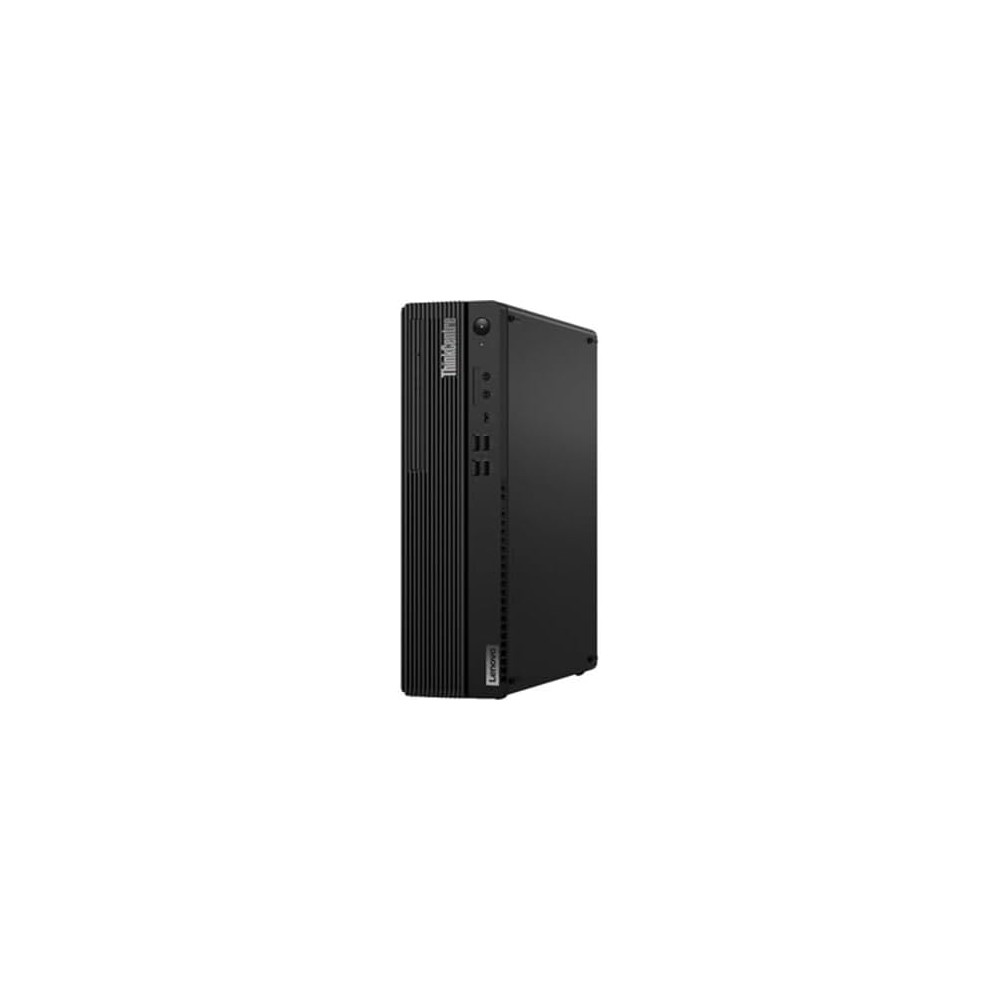

Lenovo 11TT003AUS ThinkCentre M90s i5-12500 SFF Intel View larger

Lenovo 11TT003AUS ThinkCentre M90s i5-12500 SFF Intel

11TT003AUS

New

Lenovo 11TT003AUS ThinkCentre M90s i5-12500 SFF Intel
×




Detailed Specifications

Lenovo 11TT003AUS ThinkCentre M90s i5-12500 SFF Intel® Core™ i5 16 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro PC Black

Description

The Lenovo 11TT003AUS ThinkCentre M90s is a powerful Small Form Factor (SFF) desktop, featuring an Intel Core i5-12500 processor for efficient performance. With 16GB of DDR5 RAM, it ensures smooth multitasking and responsiveness for diverse applications. The 256GB SSD provides fast and reliable storage, facilitating quick data access and system boot times. Running on Windows 11 Pro, the desktop offers a secure and modern operating environment. The sleek black design complements contemporary workspaces, and the compact form factor is ideal for space-conscious setups. The M90s i5-12500 is designed for professionals seeking reliability, performance, and the advanced features of Windows 11 Pro.

Specifications

Processor
Processor Generation 12th gen Intel® Core™ i5
Bus type DMI4
Processor cache type Smart Cache
Processor cache 18 MB
Processor frequency 3 GHz
Processor model i5-12500
Processor manufacturer Intel
Processor boost frequency 4.6 GHz
Processor cores 6
Processor family Intel® Core™ i5
Memory
Internal memory 16 GB
Maximum internal memory 128 GB
Memory slots 4x DIMM
Internal memory type DDR5-SDRAM
Memory clock speed 4400 MHz
Memory channels Dual-channel
Storage
Storage media SSD
Number of storage drives installed 1
Optical drive type DVD±RW
SSD interface PCI Express 4.0
SSD capacity 256 GB
Number of SSDs installed 1
Card reader integrated No
Total storage capacity 256 GB
SSD form factor M.2
Total SSDs capacity 256 GB
NVMe Yes
Graphics
Discrete graphics card No
On-board graphics card Yes
Discrete graphics card model Not available
On-board graphics card model Intel UHD Graphics 770
Optical drive
Optical drive type DVD±RW
Network
Ethernet LAN Yes
Wi-Fi Yes
Bluetooth Yes
Bluetooth version 5.1
Wi-Fi standards Wi-Fi 6 (802.11ax)
Wake-on-LAN ready Yes
Ethernet LAN data rates 1000,100 Mbit/s
Cabling technology 10/100/1000Base-T(X)
WLAN controller model Intel Wi-Fi 6 AX201
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Antenna type 2x2
WLAN controller manufacturer Intel
LAN controller Intel® I219-LM
Ports & interfaces
Combo headphone/mic port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
HDMI version 2.1
Microphone in Yes
Line-out Yes
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DisplayPorts quantity 3
DisplayPort version 1.4
Technical details
Intel 64 Yes
Cable lock slot type Kensington
Product type PC
Trusted Platform Module (TPM) Yes
Product colour Black
Chassis type SFF
Audio system High Definition Audio
Placement supported Horizontal/Vertical
Cable lock slot Yes
Motherboard chipset Intel Q670
Sustainability certificates RoHS, TCO
Design
Volume 8.2 L
Cable lock slot type Kensington
Product colour Black
Chassis type SFF
Placement supported Horizontal/Vertical
Cable lock slot Yes
Viewing window No
Performance
Embedded options available No
Audio chip Realtek ALC897Q-CG
Number of speakers 1
Password protection Yes
Password protection type Power on, Supervisor, HDD
Product type PC
Trusted Platform Module (TPM) Yes
Audio system High Definition Audio
Built-in speaker(s) Yes
Motherboard chipset Intel Q670
Software
Operating system language English
Operating system architecture 64-bit
Recovery operating system Windows 10 Pro
Operating system installed Windows 11 Pro
Processor special features
Embedded options available No
Enhanced Intel SpeedStep Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Trusted Execution Technology Yes
Intel Stable Image Platform Program (SIPP) Yes
Idle States Yes
Execute Disable Bit Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
CPU configuration (max) 1
Intel Virtualization Technology (VT-x) Yes
Intel 64 Yes
Power
Power supply input frequency 50 - 60 Hz
Power supply input voltage 100 - 240 V
Power supply 260 W
Operational conditions
Operating altitude 0 - 120000" (0 - 3048 m)
Storage temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 5 - 35 °C
Non-operating altitude 0 - 480000" (0 - 12192 m)
Certificates
Certification ErP Lot 3 MIL-STD-810H
Sustainability
Sustainability certificates RoHS, TCO
Weight & dimensions
Volume 8.2 L
Package width 7.68" (195 mm)
Package depth 15.6" (395 mm)
Package height 20.9" (530 mm)
Width 3.64" (92.5 mm)
Depth 11.7" (297.7 mm)
Height 13.4" (339.5 mm)
Package weight 16.8 lbs (7.6 kg)
Weight 11.7 lbs (5.3 kg)
Packaging data
Package width 7.68" (195 mm)
Package depth 15.6" (395 mm)
Package height 20.9" (530 mm)
Package weight 16.8 lbs (7.6 kg)
Packaging content
Mouse included Yes
Display included No
Keyboard included Yes
Other features
Number of speakers 1
Trusted Platform Module (TPM) Yes
On-board graphics card Yes
Processor manufacturer Intel
Built-in speaker(s) Yes
