BlackBox LGC321A-R3 Gigabit Ethernet Industrial Media Converter View larger

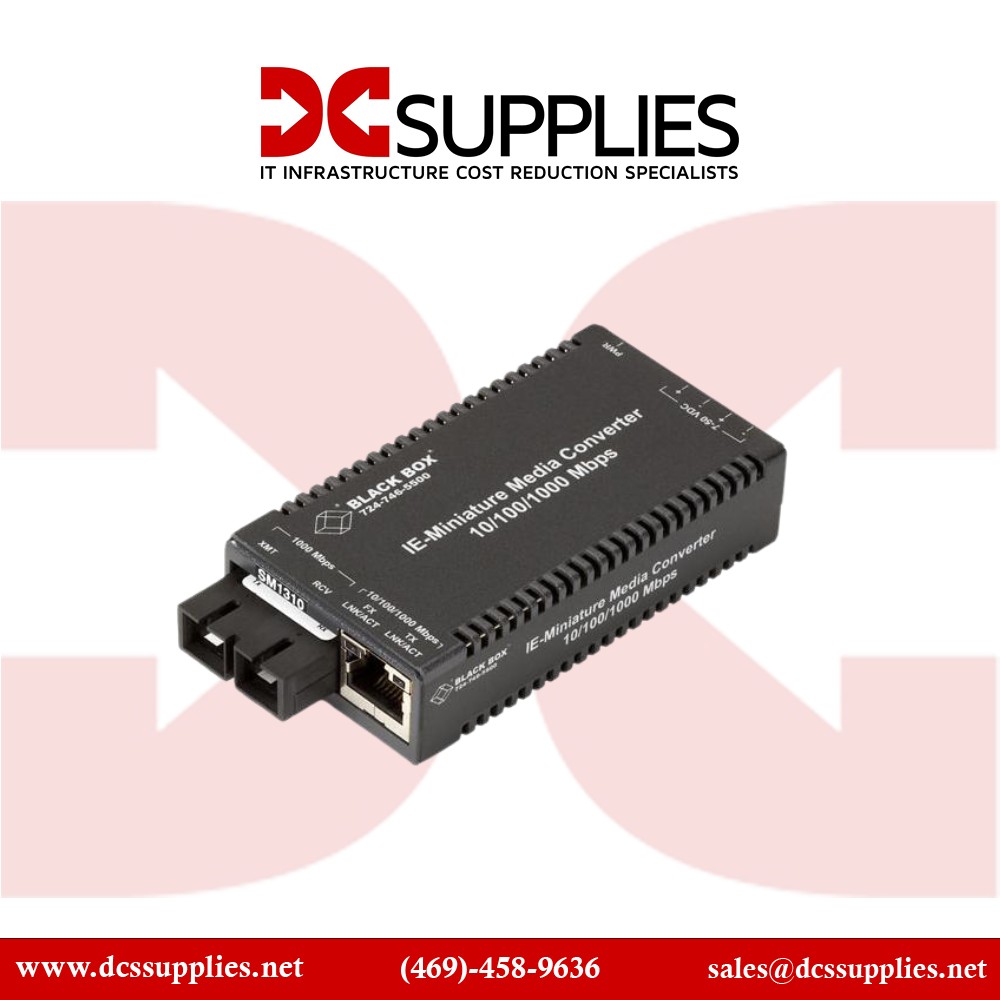

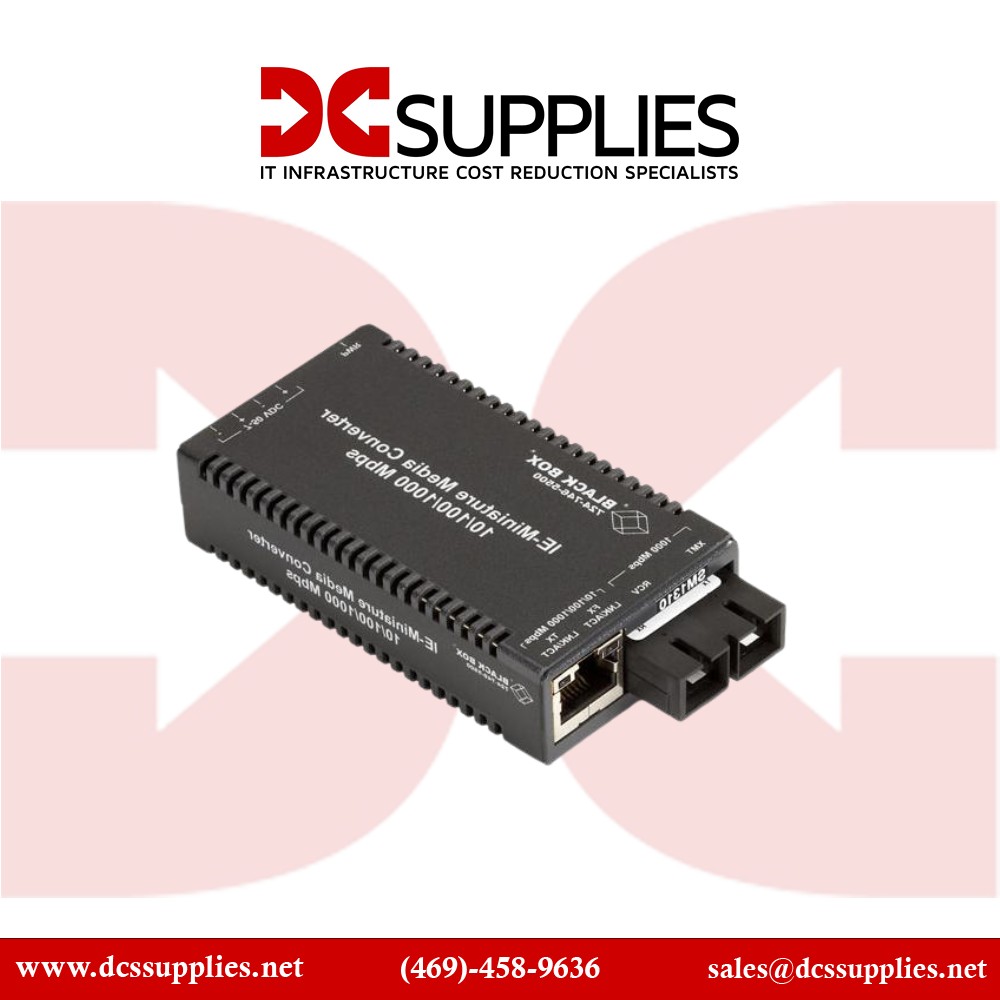

BlackBox LGC321A-R3 Gigabit Ethernet Industrial Media Converter

LGC321A-R3

New

Seamlessly converts copper to single-mode fiber for extended network reach in harsh industrial environments.
×




Detailed Specifications

BlackBox LGC321A-R3 Gigabit Ethernet Industrial Media Converter

Overview:


The BlackBox LGC321A-R3 Gigabit Ethernet Industrial Media Converter is designed to convert 10/100/1000-Mbps copper to 1000-Mbps single-mode fiber seamlessly. Ideal for extending network distances up to 10 kilometers (6.2 miles) using single-mode cable, this media converter supports Layer 2 switching for plug-and-play operation. Its robust design withstands harsh industrial environments, supporting a temperature range of -13 to +158°F (-25 to +70°C) with DC power.

Key Features:

  • High-Speed Conversion: Converts copper to single-mode fiber at 1000 Mbps.
  • Extended Range: Supports distances up to 10 km (6.2 mi.) on single-mode fiber.
  • Versatile Power Options: AC adapter, 5-50 VDC terminal block, and optional USB Power Adapter Cable.
  • Industrial Grade: Operates in temperatures from -13 to +158°F (-25 to +70°C).
  • Redundant Power Supply: Multiple power options ensure continuous operation.

Technical Specifications:

FeatureDetails
Connector Color Black
Data Rate Copper: 10/100/1000 Mbps; Fiber: 1000 Mbps
Environmental C config: -13 to +158°F (-25 to +70°C); AC config: +32 to +122°F (0 to +50°C)
Humidity 5 to 95%, non-condensing
Power AC: 100-240 VAC; DC: 7-50 VDC at 2.5 watts
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Connectors (1) RJ-45, (1) SC, (1) AC power, (1) 4-terminal DC power
Dimensions 1"H x 2"W x 4.7"D (25.4 x 50.8 x 119.38 mm)
Indicators LEDs: (1) FX LN, (1) TX LNK/ACT
Weight 1.2 lbs (0.54 kg)
