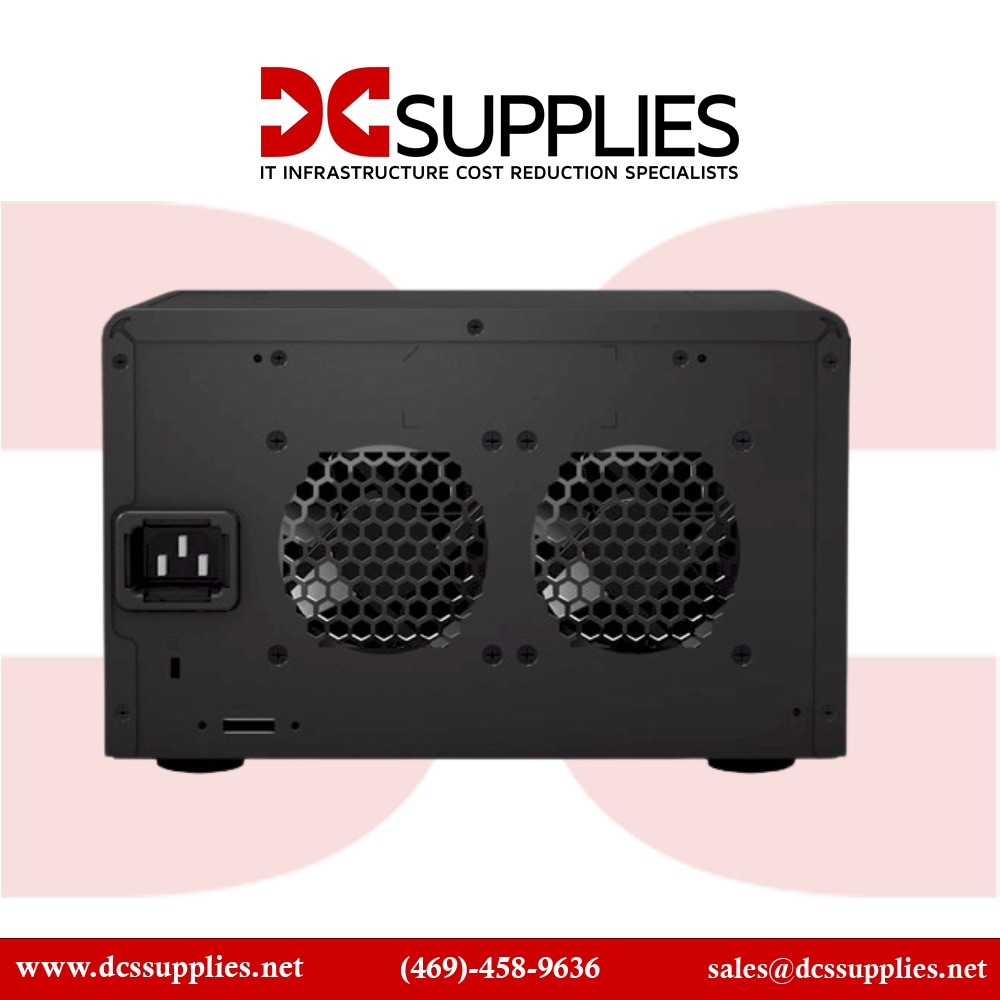

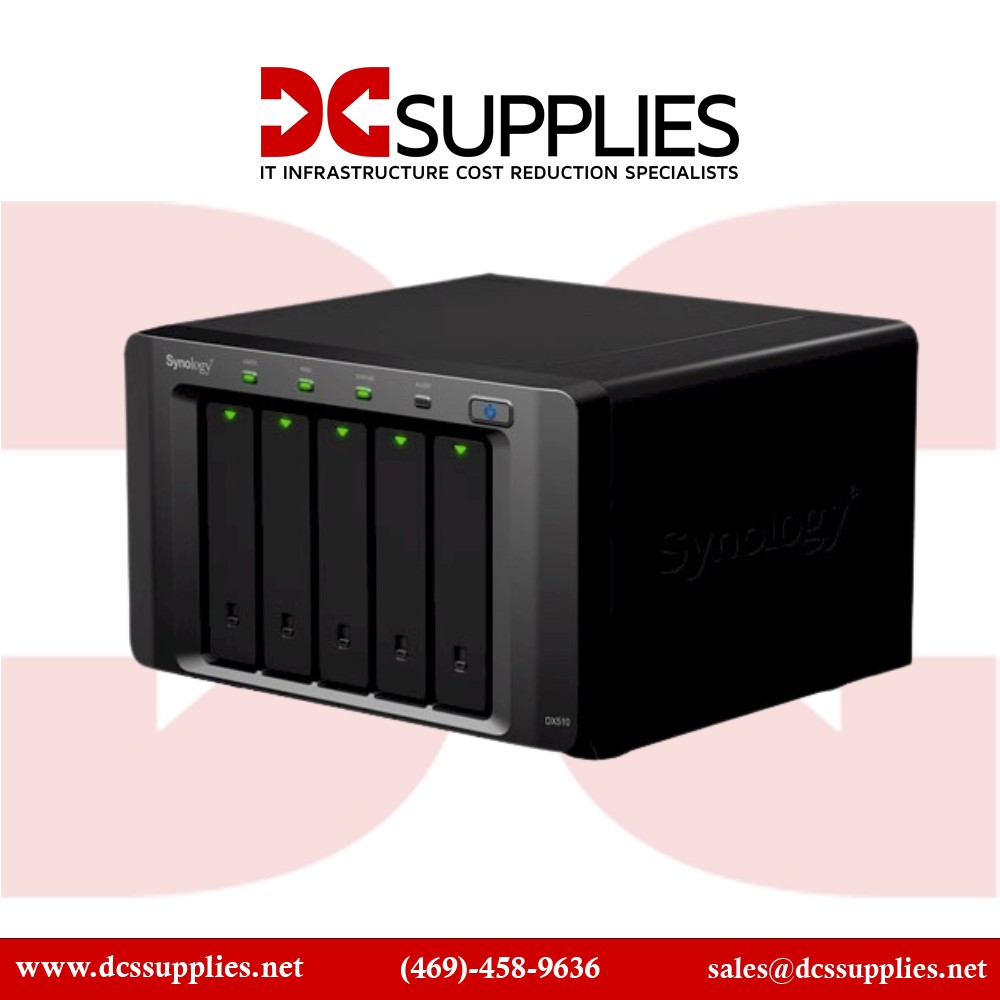

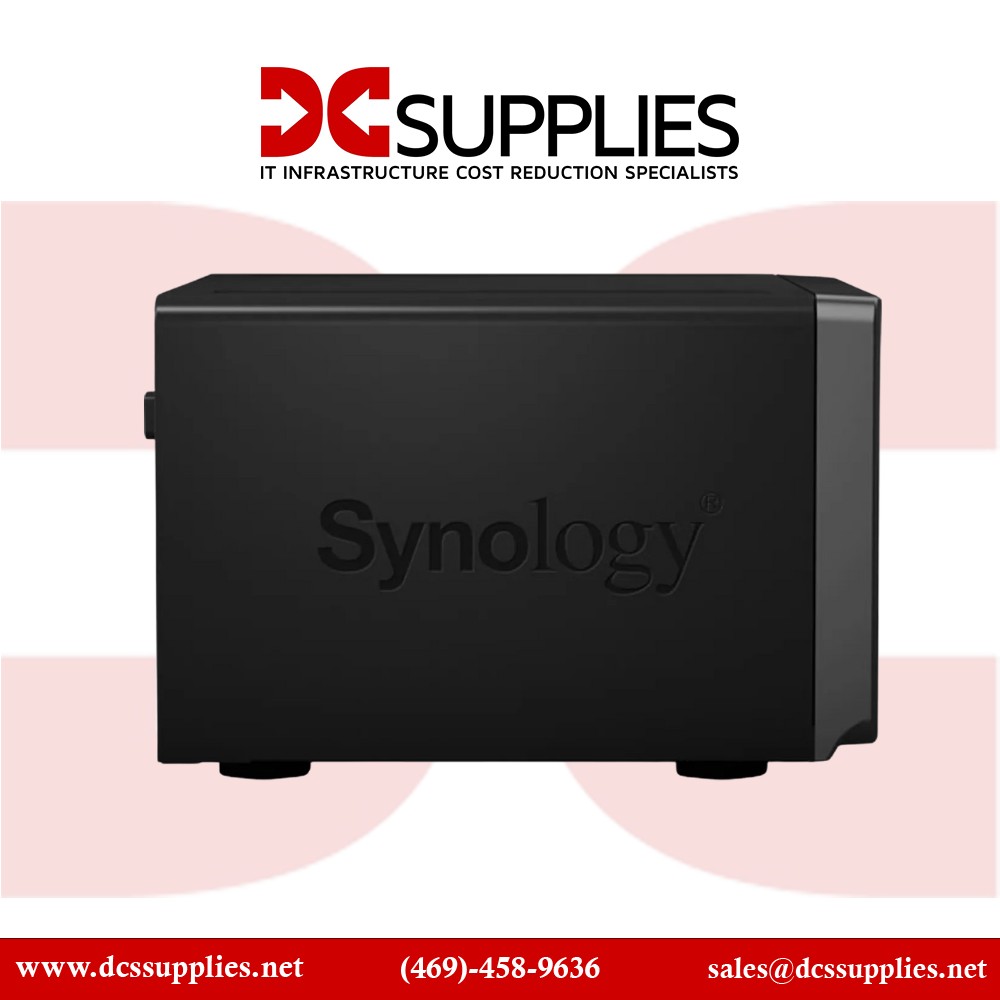

Synology DX510 5-Bay 5-Bay Expansion Unit Desktop View larger

Synology DX510 5-Bay 5-Bay Expansion Unit Desktop

DX510

New

Synology DX510 5-Bay 5-Bay Expansion Unit Desktop
×




Detailed Specifications

Synology DX510 5-Bay 5-Bay Expansion Unit Desktop

Overview :

The DX510 5-Bay Expansion Unit from Synology delivers an effortless solution for volume expansion and data backup for select Synology DiskStations. Compatible with DiskStation DS710+ and DS1010+, the DX510 5-Bay Expansion Unit smoothly scales the storage capacity by an additional five hard drives and connects via eSATA port. It also supports hot-swappable HDD so there's no need to shut the system to switch hard drives.

The DX510 5-Bay Expansion Unit is connected to the DiskStation using an eSATA cable with custom-designed connectors on both ends This ensures a reliable connection and maximum throughput. The eSATA 3.0 Gb/s definition allows the hard drives in the connected DX510 5-Bay Expansion Unit to operate on the same level as the ones installed in the DiskStation.

Specifications :

Product Nmae
NAS Expansion Unit
Storage
5 SATA(II) Drive Bays
RAID
Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6
LED Indicators
Power, eSATA, RAID, Alert, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5
Ports
1 x eSATA
Buttons
Power
Form Factor
Tower
Fan
Dual 80x80mm Fans
Noise Level
30dB(A)
General
Certifications
FCC Class B, CE Class B, BSMI Class B
RoHS Compliant
Yes
