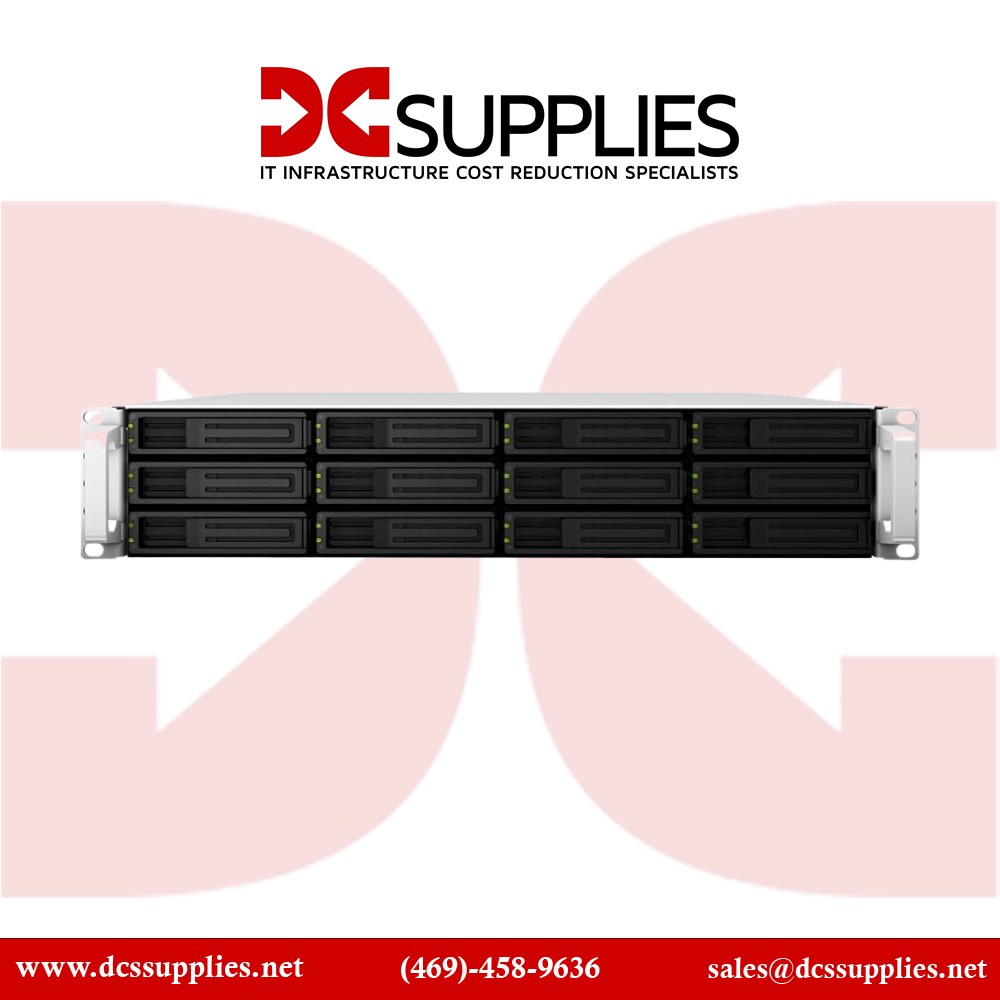

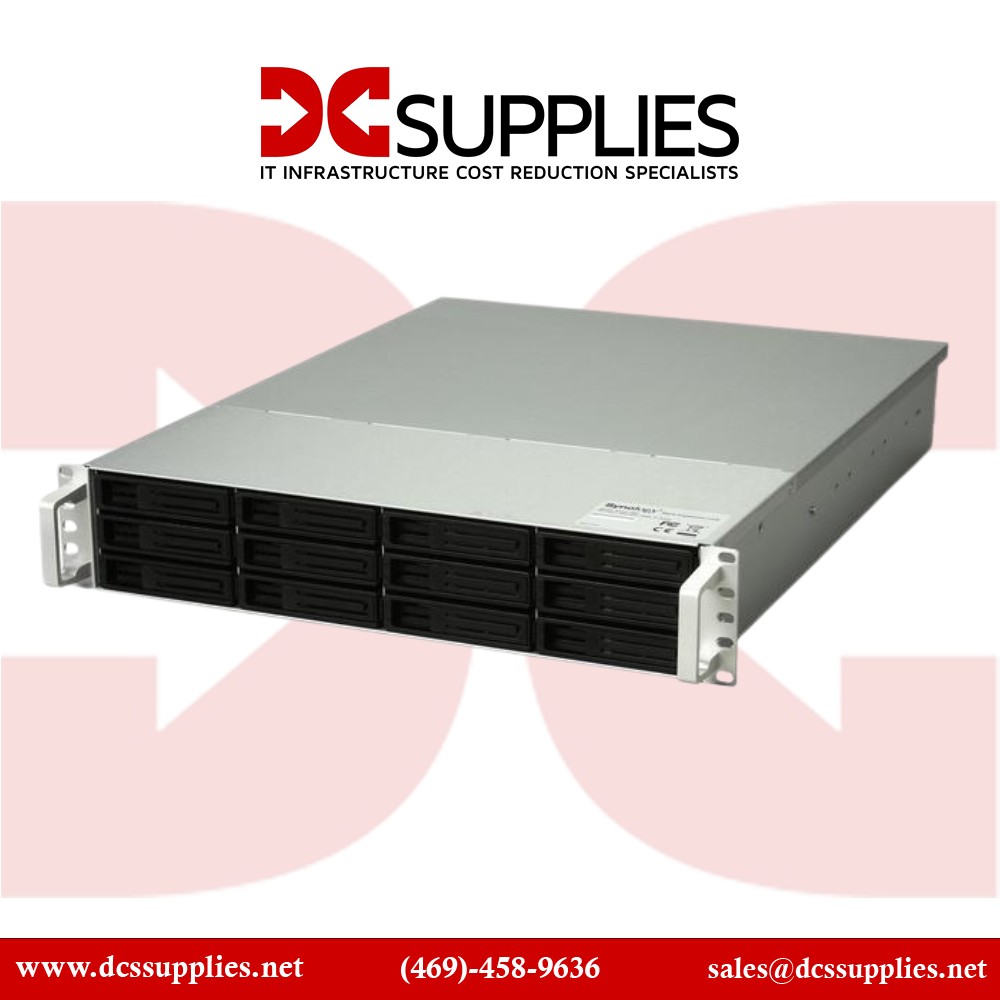

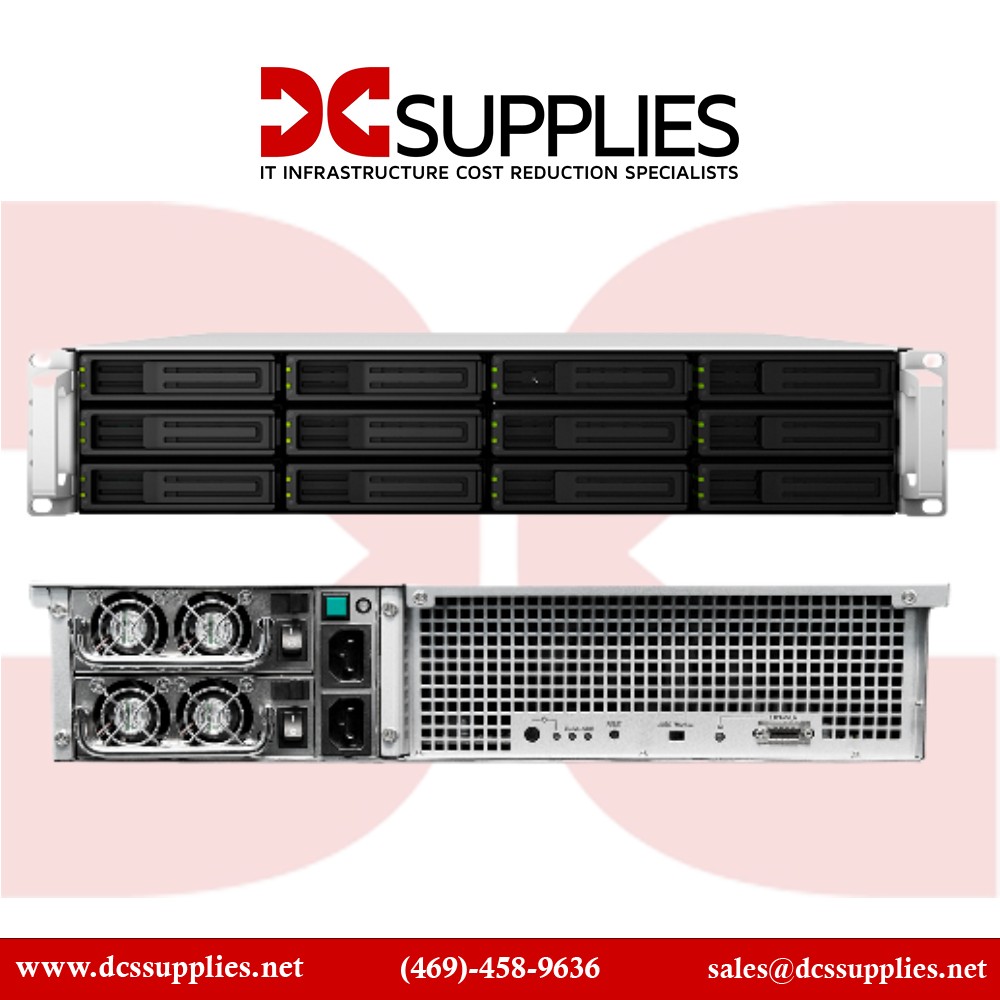

Synology RX1214RP Bay NAS Expansion Unit View larger

Synology RX1214RP Bay NAS Expansion Unit

RX1214RP

New

Synology RX1214RP Bay NAS Expansion Unit
×




Detailed Specifications

Synology RX1214RP Bay NAS Expansion Unit

Overview :

The RX1214RP 12-Bay Expansion Unit from Synology delivers a solution for volume expansion and data backup for RackStation RS2414+/RS2414RP+. It scales up the storage capacity of the Synology RS2414+/RS2414RP+ by an additional 12 hard drives on-the-fly, when connected directly to an expansion cable. The expansion unit is capable of housing both 2.5" and 3.5" SATA III hard drives and solid state drives.

With SATA III 6 Gb/s interface support, RackStation RX1214RP unleashes the full performance of the installed drives and provides an enhanced data transfer rate. The expansion unit can be easily managed through the RackStation's DiskStation Manager (DSM) software. To ensure 24/7 service uptime, it is equipped with redundant power supplies, allowing automatic fail-over support if one of the PSUs is failed.

Specifications :

Product Name
NAS Expansion Unit
Internal HDD/SSD
12 x 3.5" or 2.5" SATA III (hard drives not included)
Expansion Port
1
Hot Swappable Drives
Yes
System Fan
4 (3.1 x 3.1" (80.0 x 80.0 mm))
Connections and Buttons
Reset button
Beep off button
Power button
2 x Power ports
2 x Power supply on/off switches
Auto/Manual mode switch
LED indicators
HDD tray
Power Recovery
Sync with the connected RackStation (auto mode)
AC Input Power Voltage
100 to 240 V
Power Frequency
50 to 60 Hz, single phase
Temperature
Operating: 40 to 95°F (4 to 35°C)
Storage: 15 to 155°F (-9 to 68°C)
Relative Humidity
5 to 95%
Power Consumption
Access: 121 W
Hard Disk Drive Hibernation: 39 W
Supported Models
RS2414+
RS2414RP+
Compliance
RoHS
Certification
FCC: Class A
CE: Class A
BSMI: Class A
Dimensions
17.5 x 3.5 x 22.4" (445.0 x 88.0 x 570.0 mm)
Weight
30.9 lb (14.0 kg)
